Configuring LTI 1.1 for Moodle LMS

How to configure LTI 1.1 for Moodle LMS

Step 1: Publishing an Online Course

1.
2.
3.
4.
5.

Previous Next

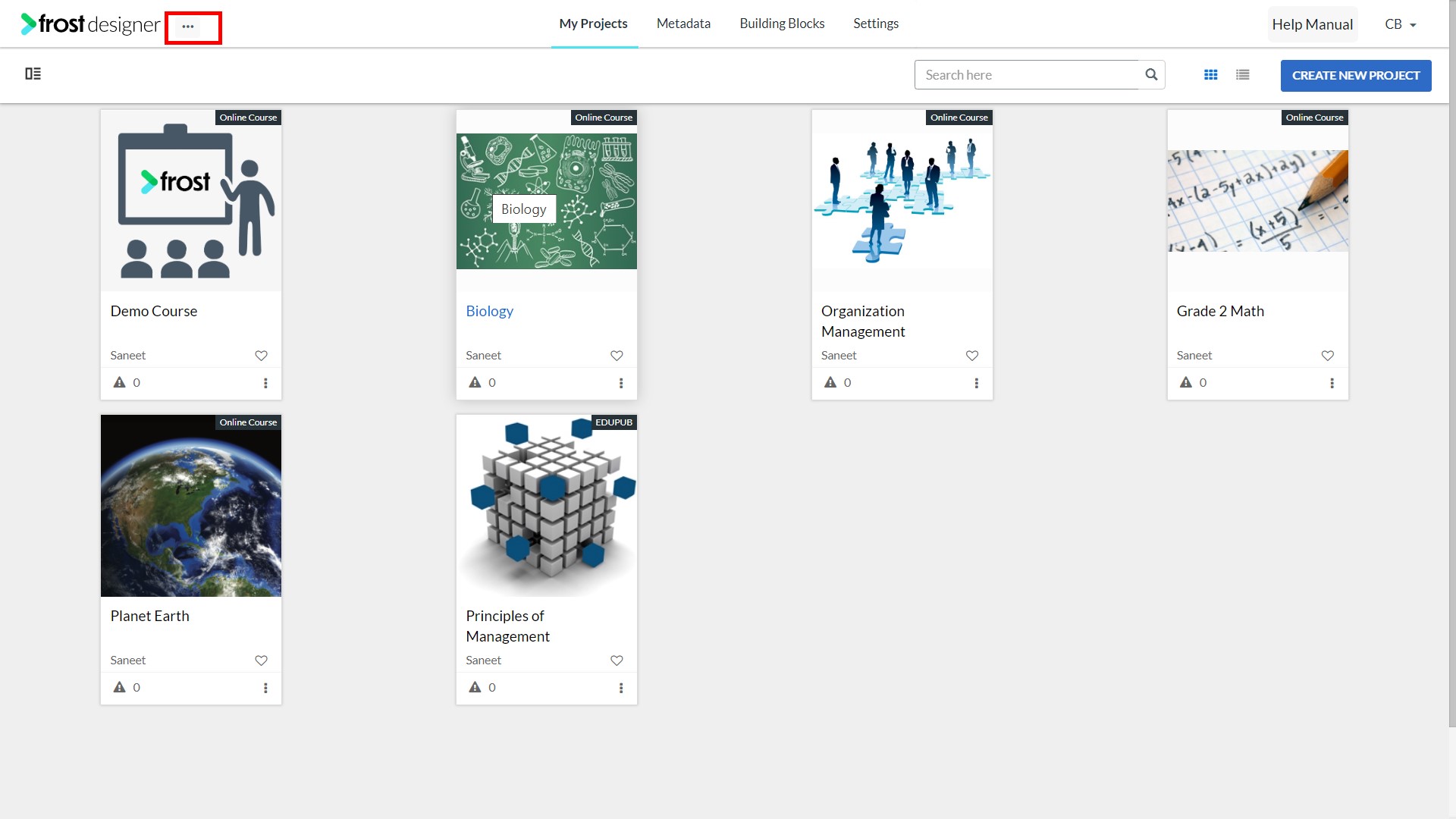

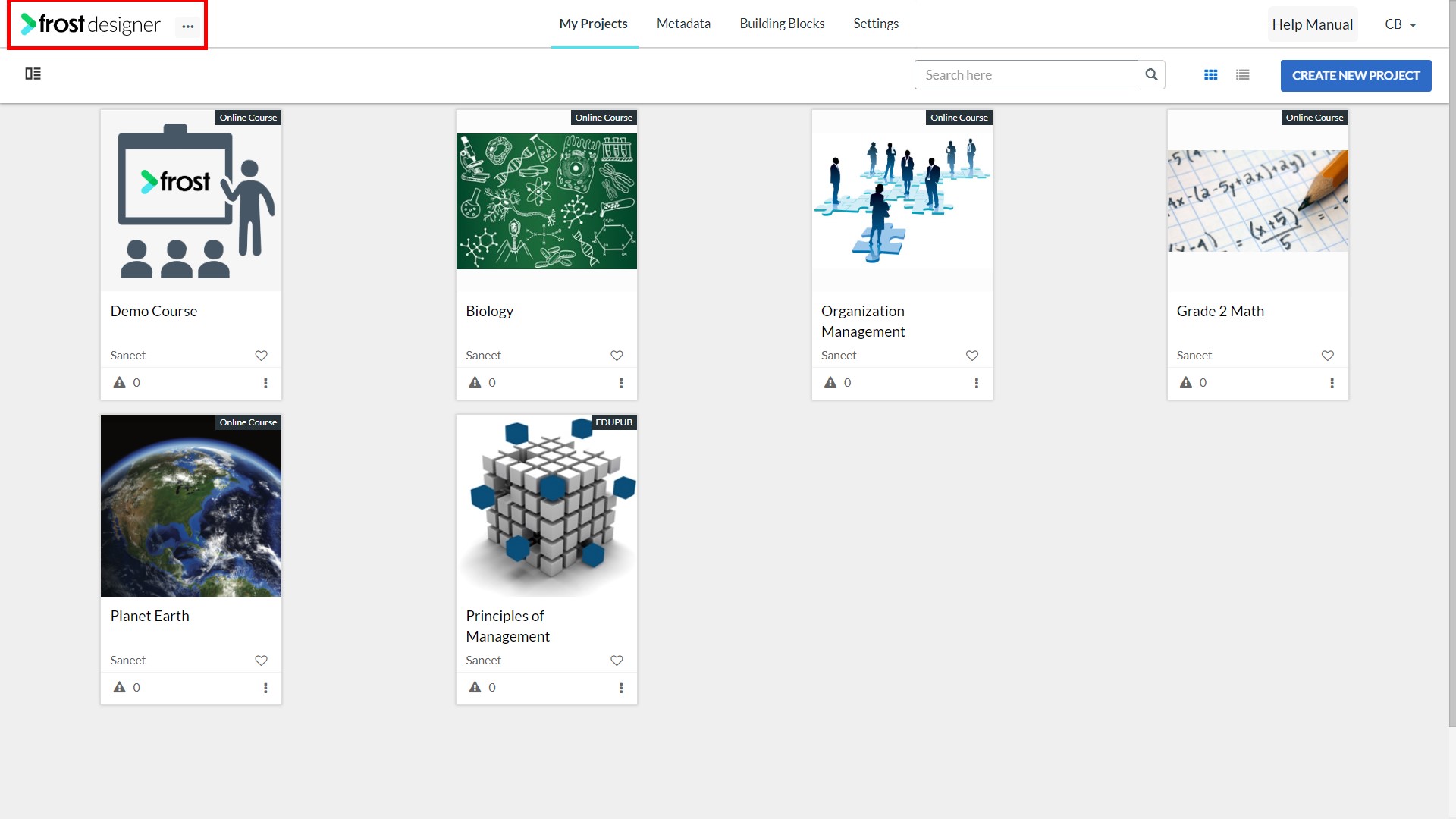

1. Navigate to the Designer platform.
2. Select the Project.
3. From the Project TOC (Table of Contents), you can publish a new project or republish an existing project.

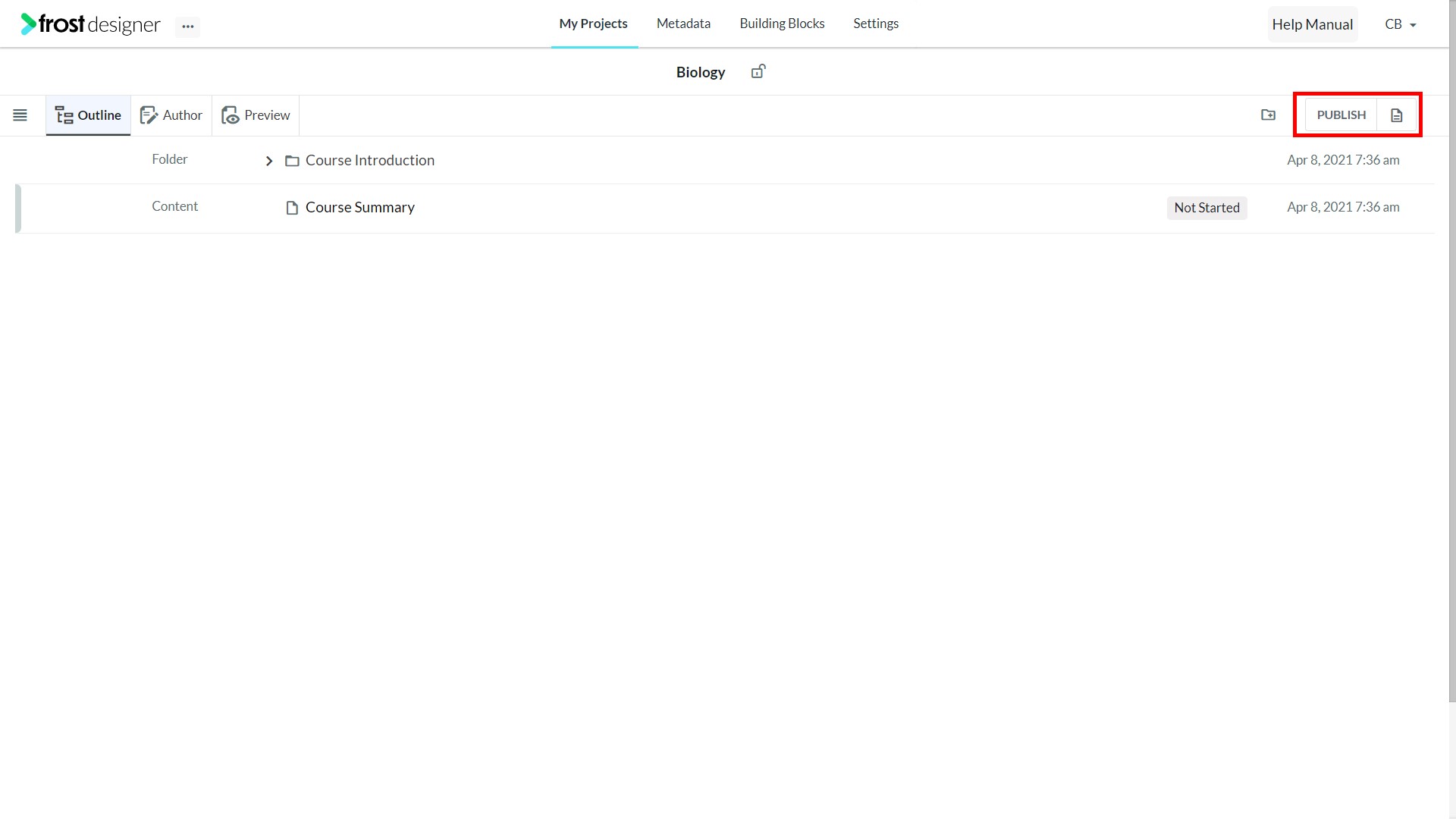

4. Click the Publish button.

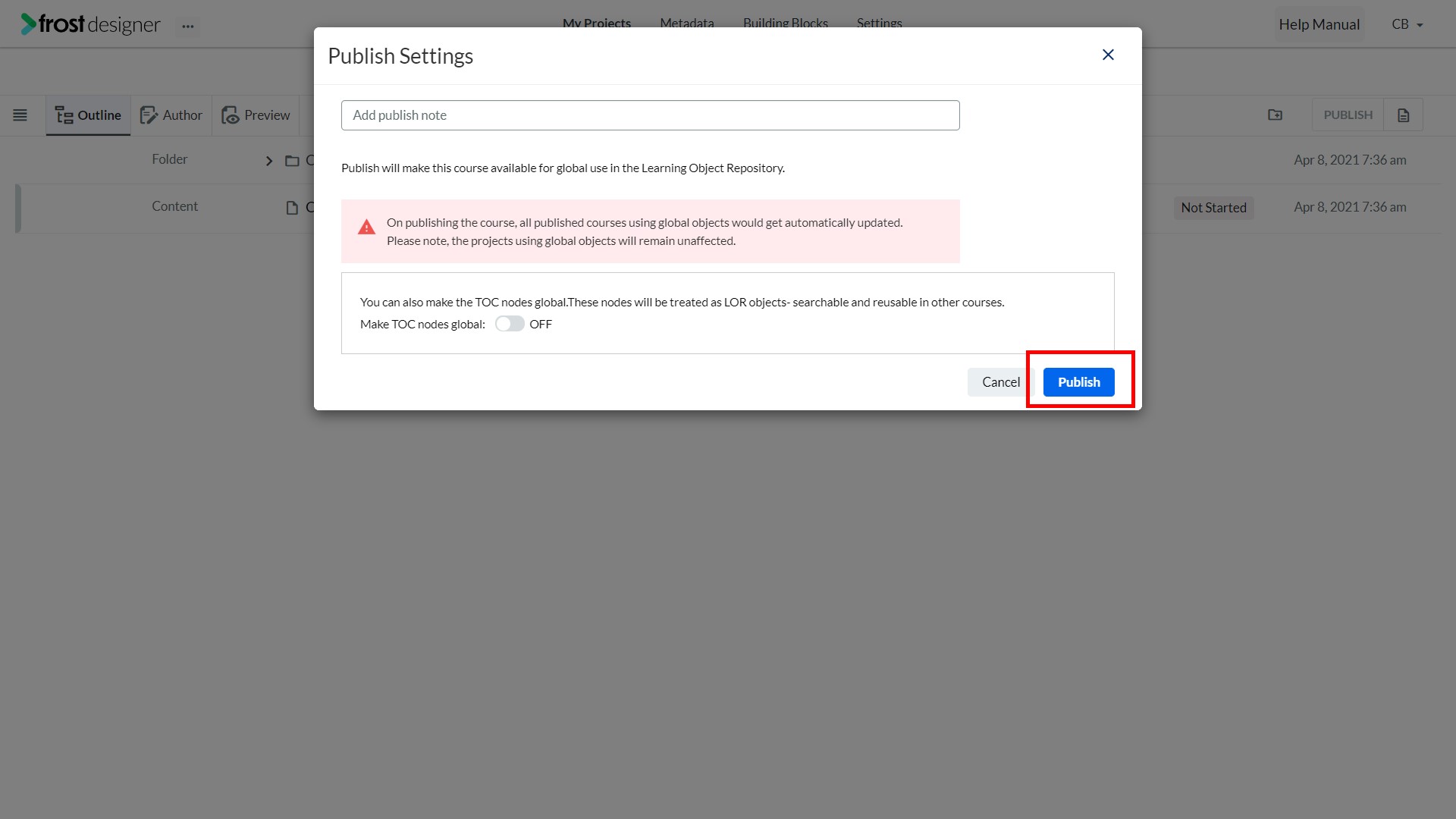

5. A Publish Settings pop-up will be displayed with the following options:
   • Publishing with slider “OFF”, publishes the course to the Learning Object Repository.
   • Turning the slider “ON” displays the TOC hierarchy, with an option to mark nodes to be made public (visible & searchable) in the LO Repository.
6. On configuring the Publish Settings, click the Publish button.

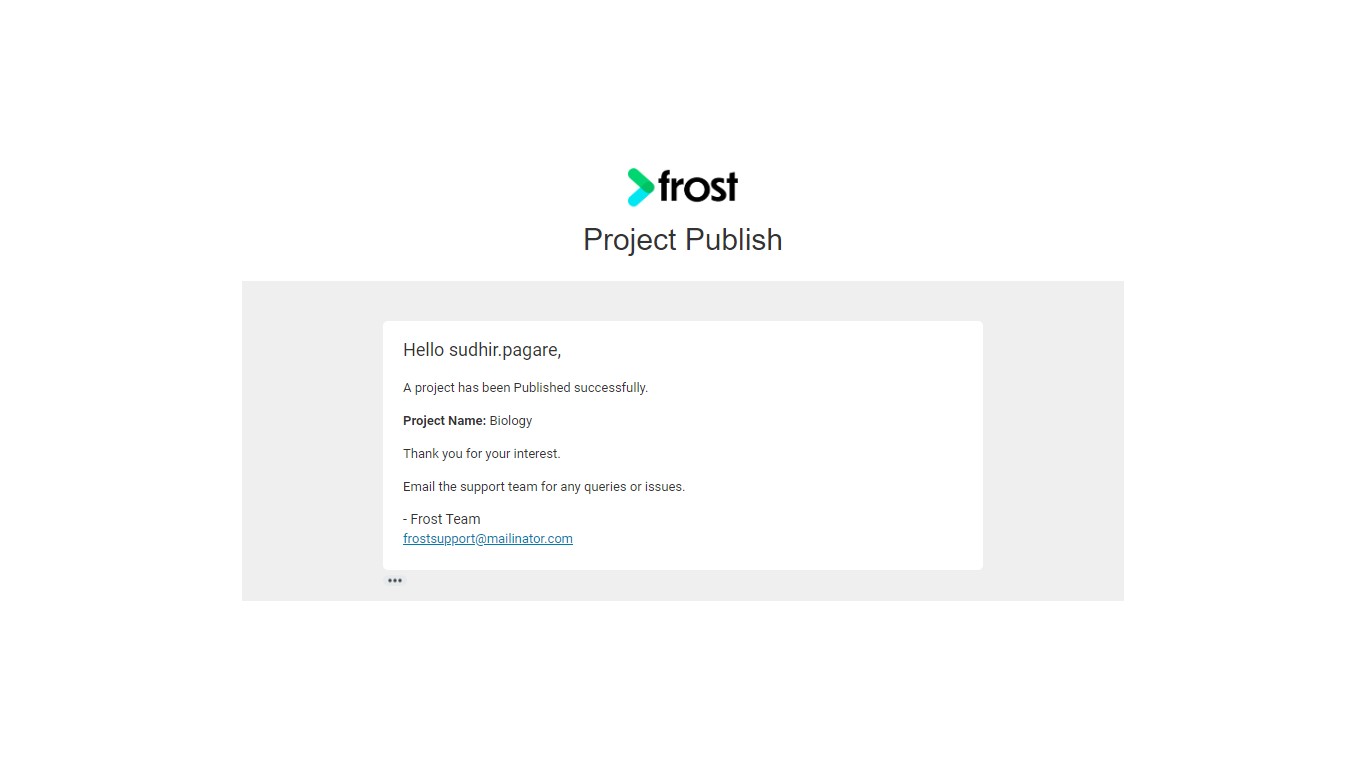

Note: Publishing a course, creates a .fcd (frost course designer) package in LO Repository. An email confirmation is sent to the user’s registered email ID, on completion of the publishing process.

Step 2: Exporting the Project

1.
2.
3.
4.
5.
6.

Previous Next

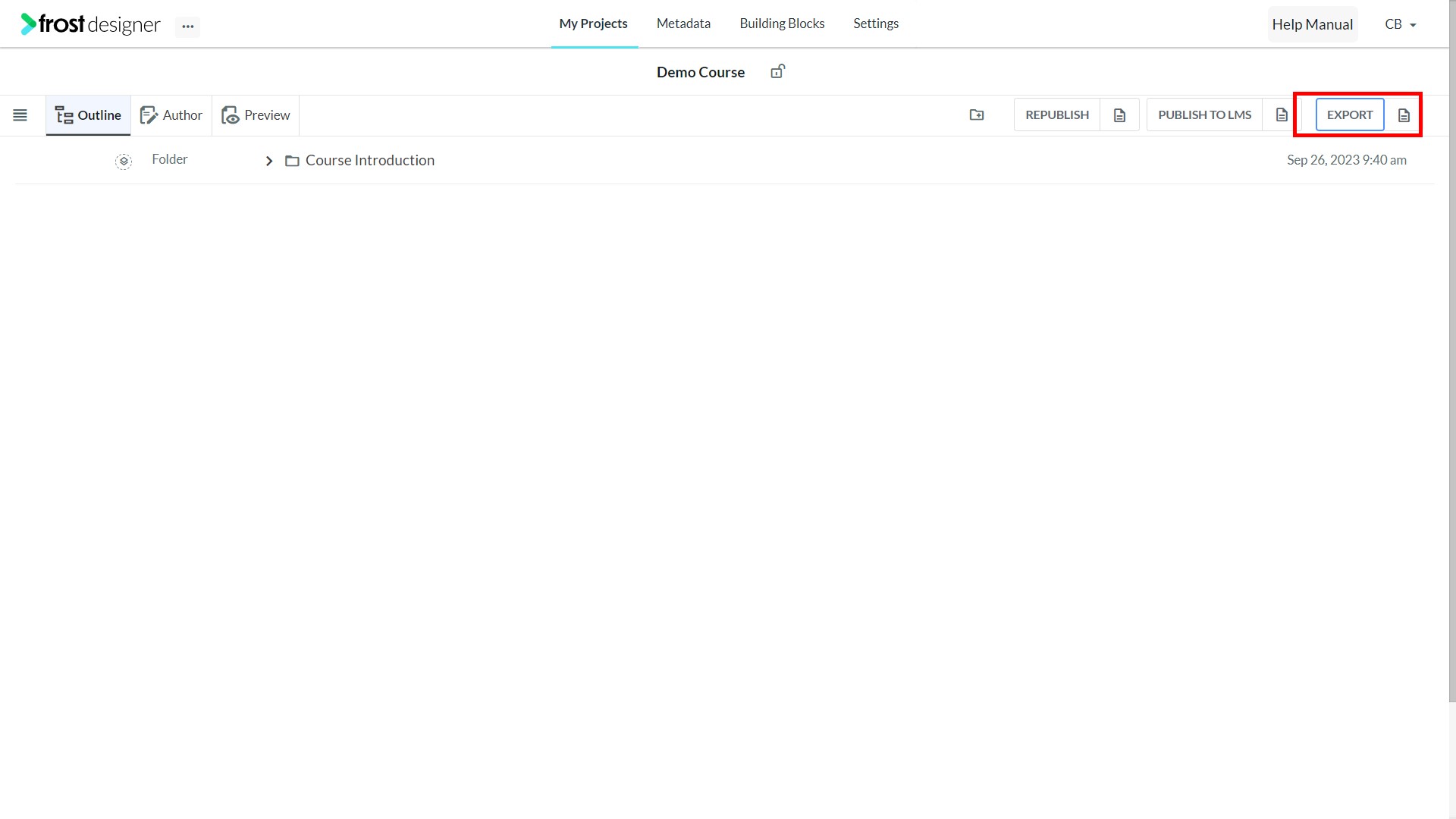

1. Click the Export button.

Note: The Export Course button appears only when the Course has been successfully published to the LO Repository by clicking the Publish button.

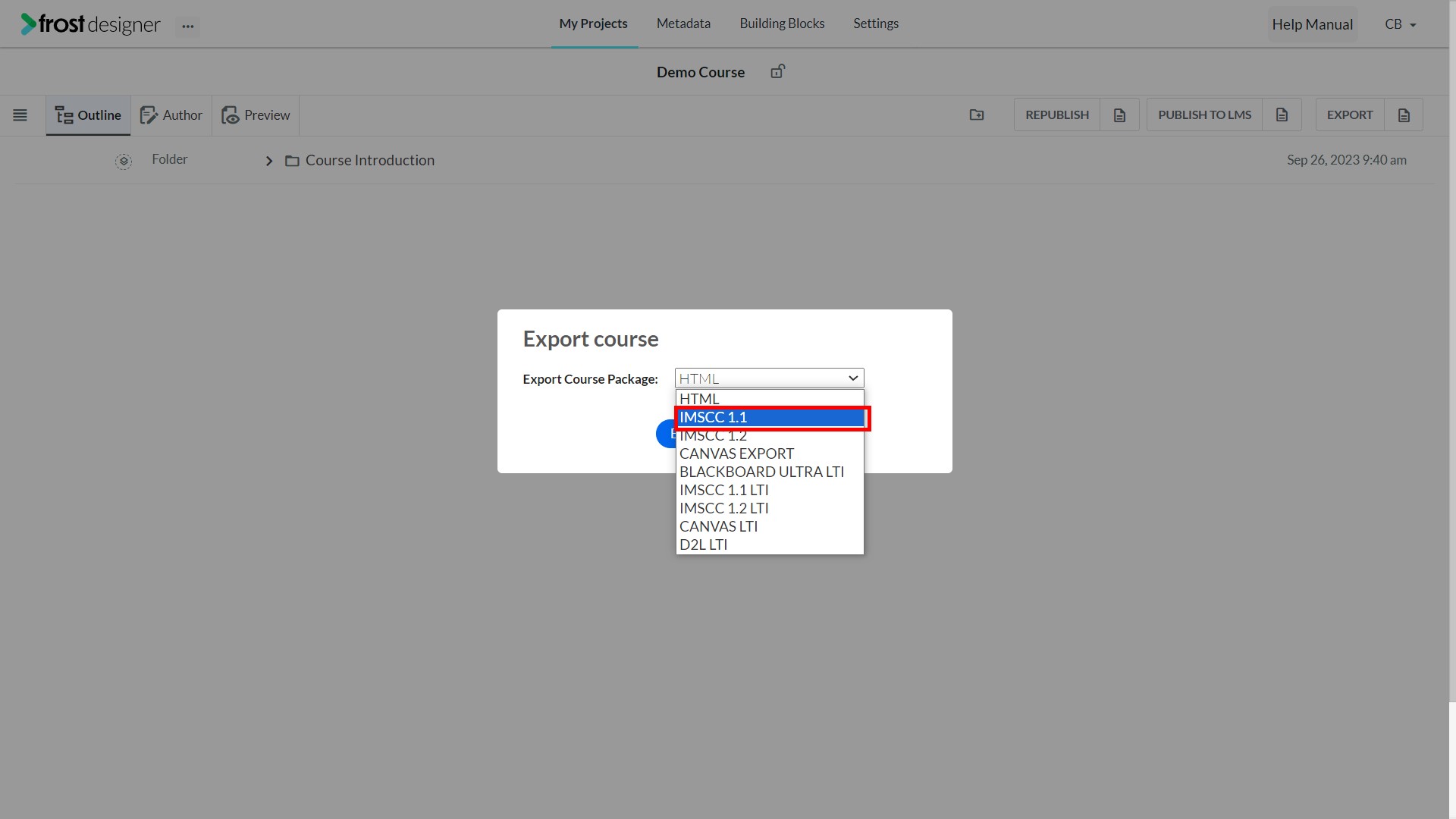

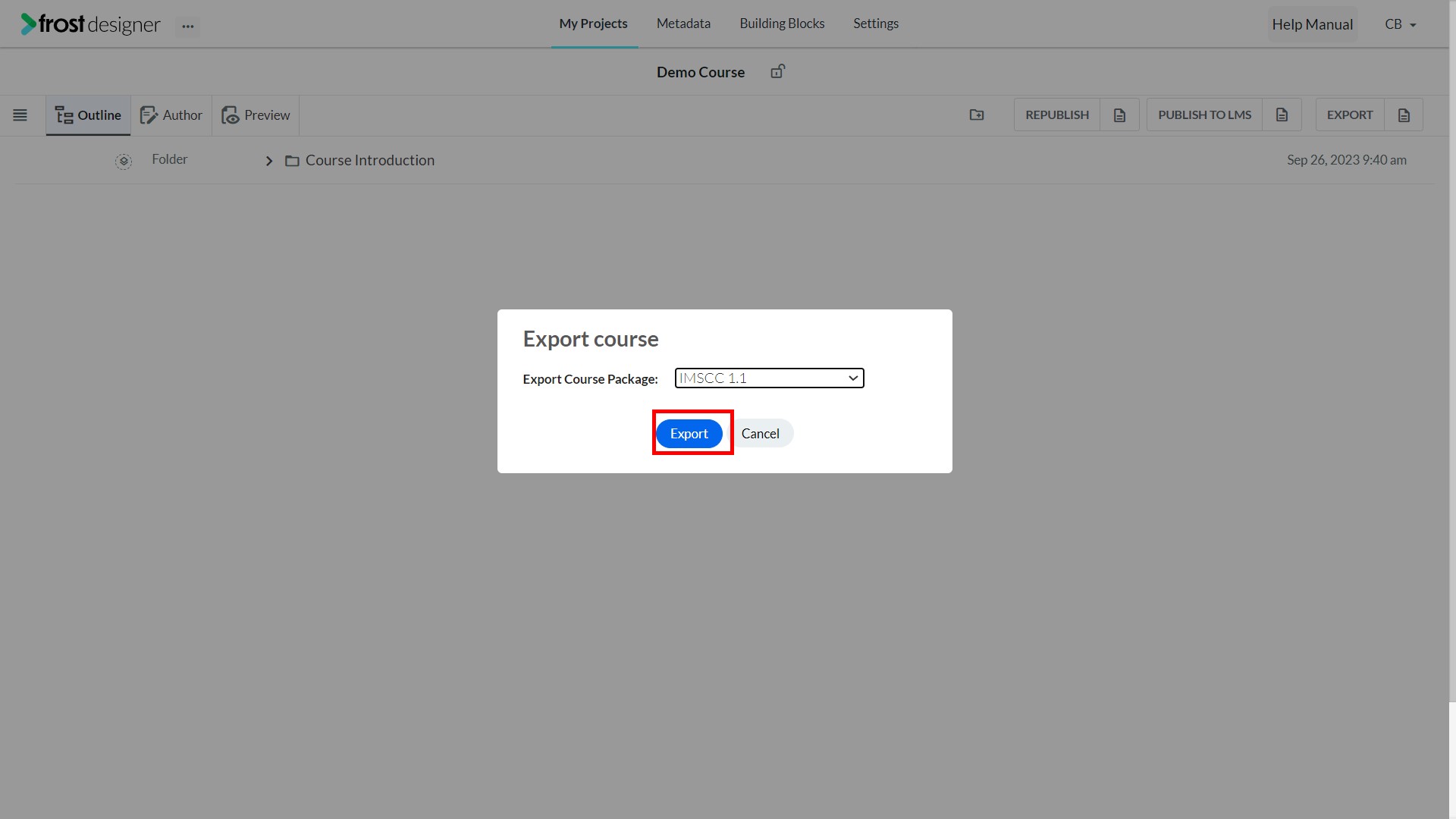

2. From the Export Course Package drop-down, select IMSCC 1.1, and click Export.

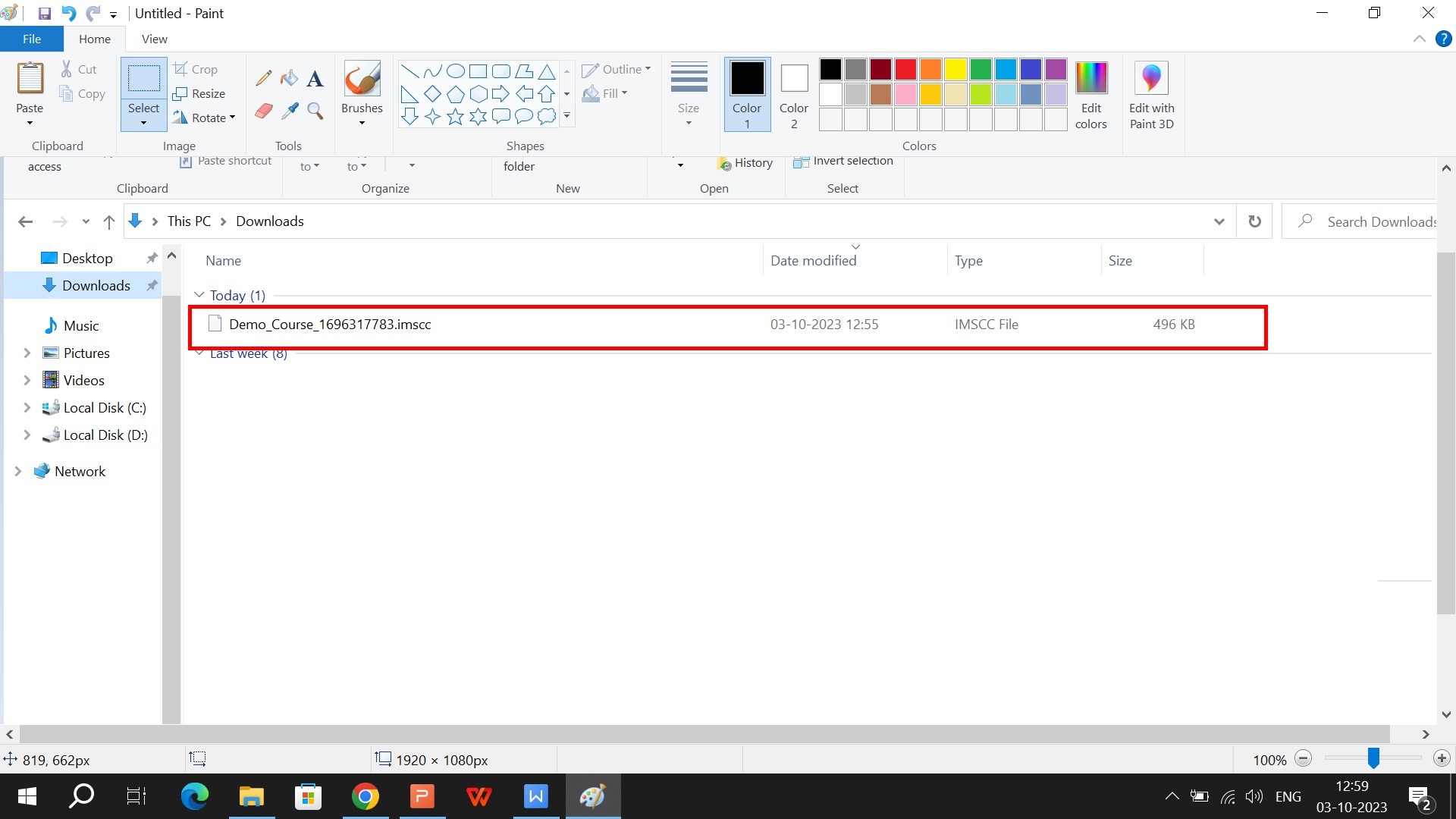

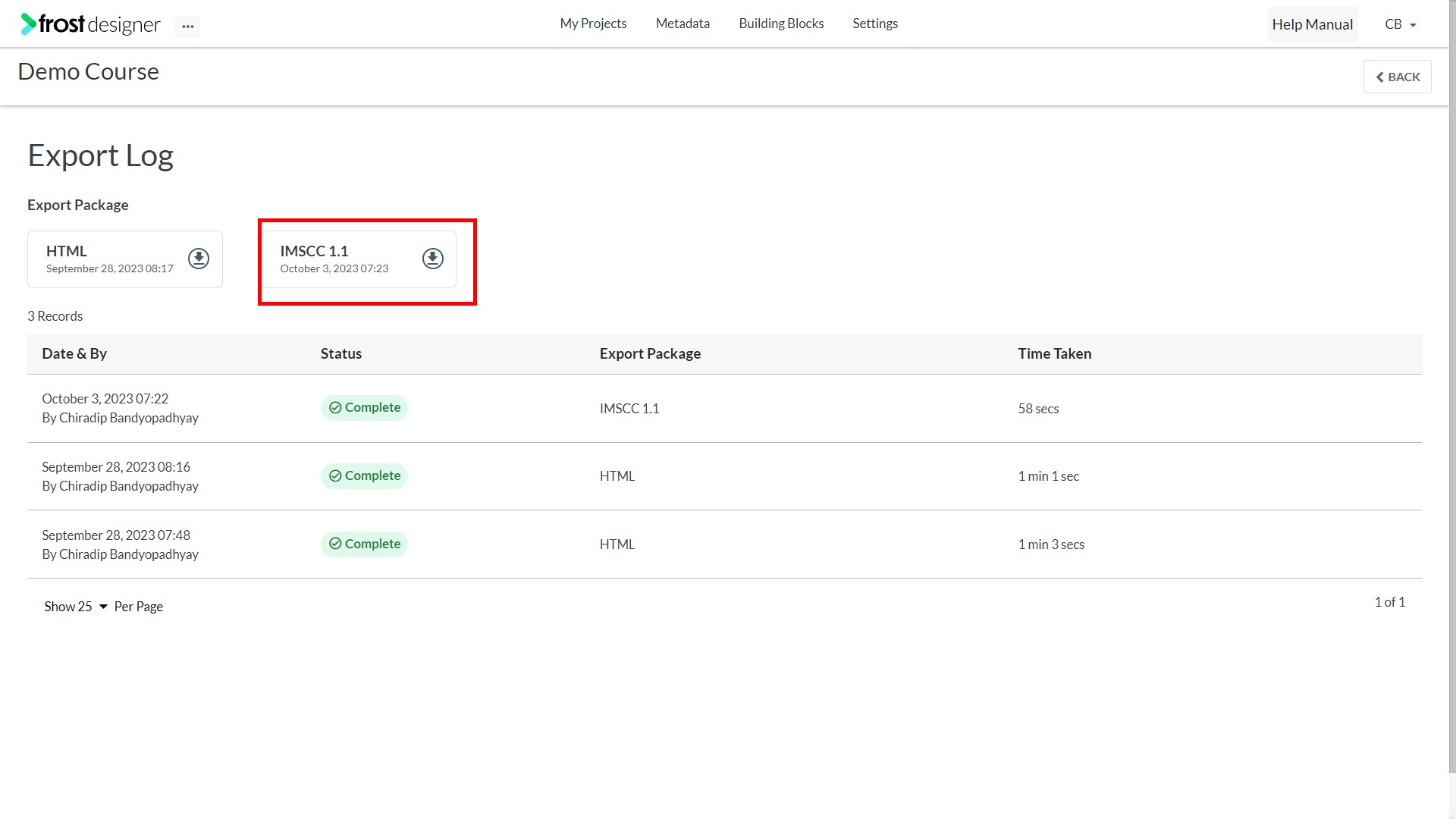

3. From the Export Log list, select the Exported package to download, and click Save.

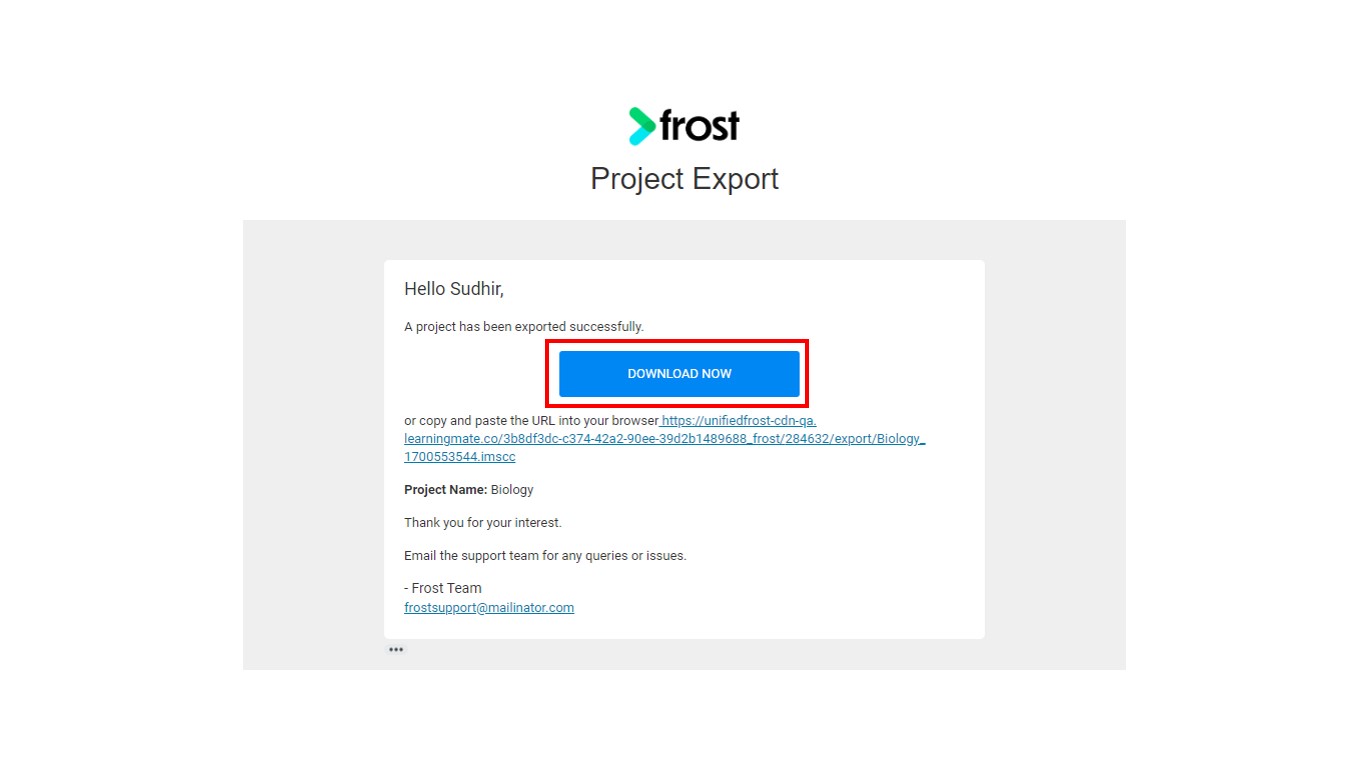

Note: A download link will also be sent to the user’s registered email ID, on completion of the export process.

Step 3: Creating an Organization

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

Previous Next

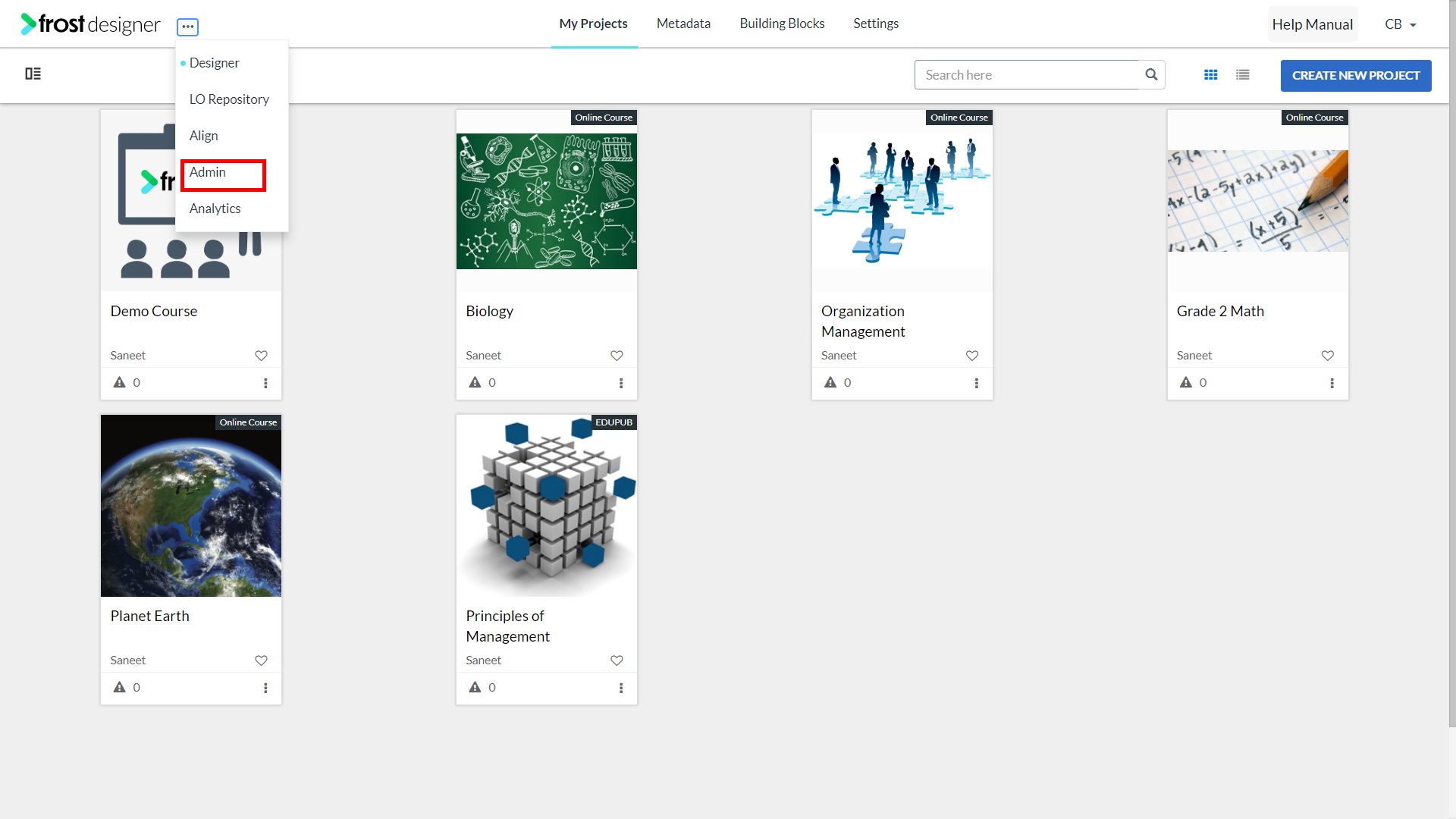

1. Navigate to the Admin platform.

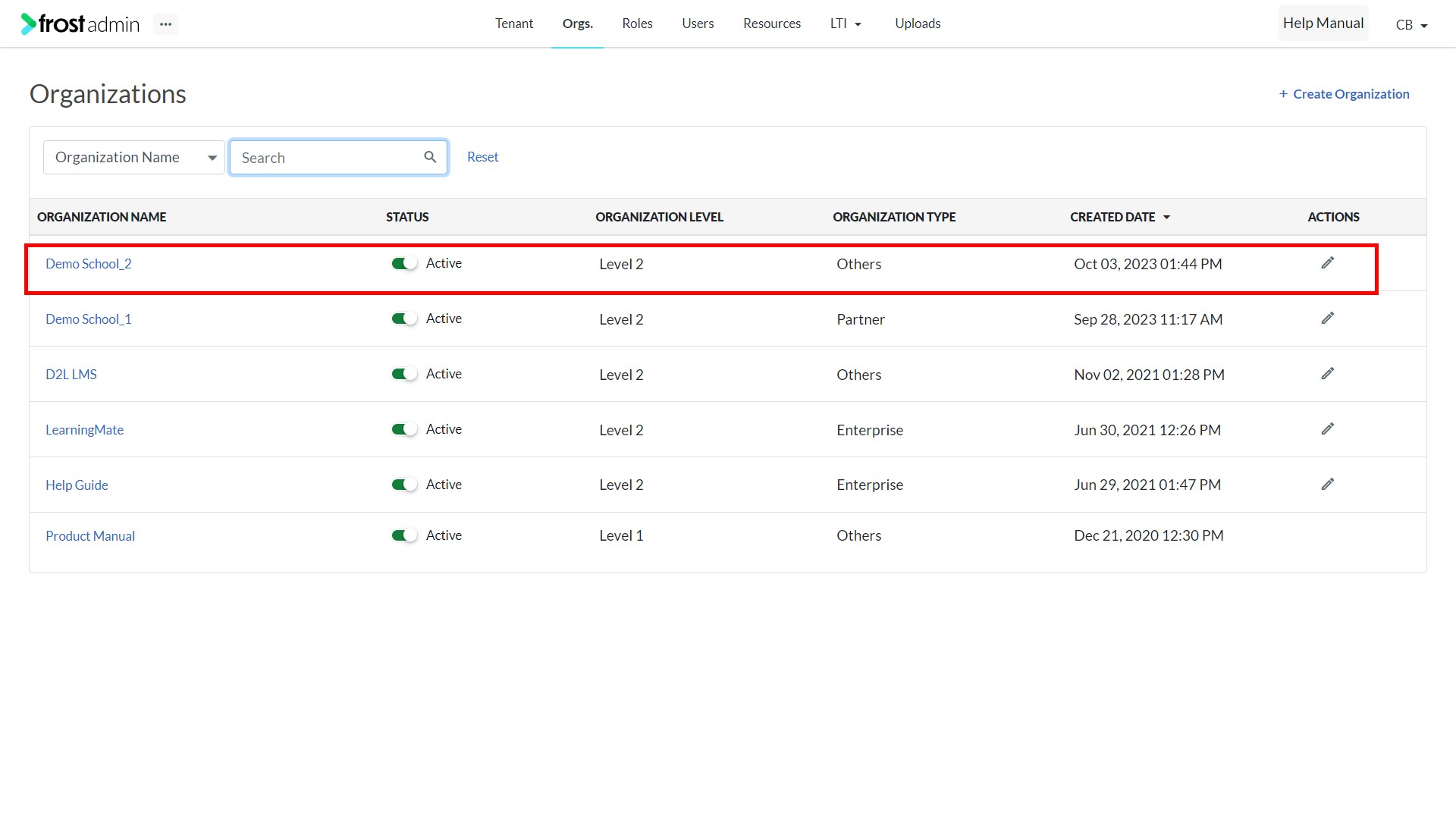

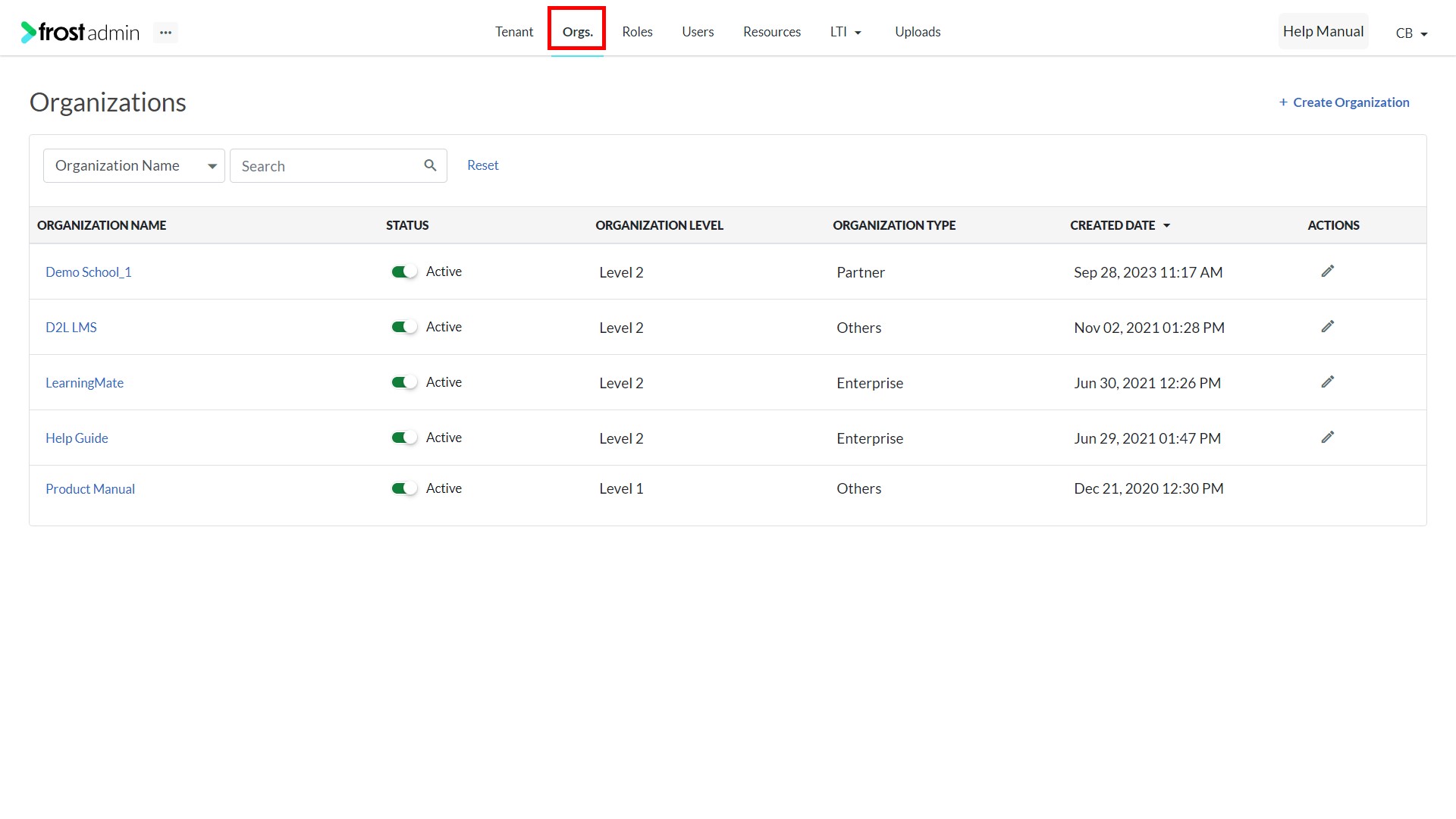

2. From the Admin dashboard, select the “Orgs.” tab.

Note: If the required organization is already created, you can directly move to Step 4.

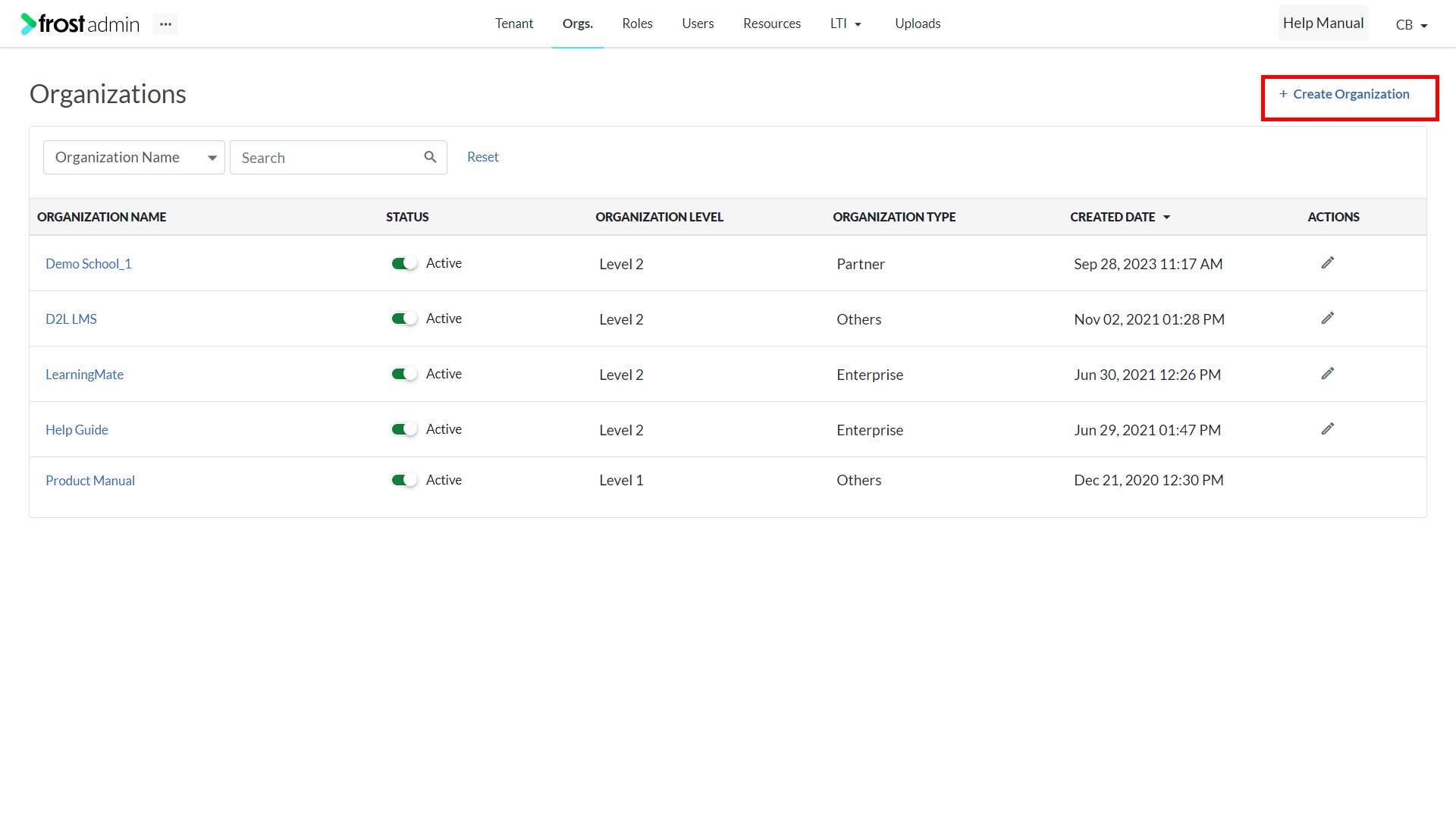

3. Click the Create Organization button.

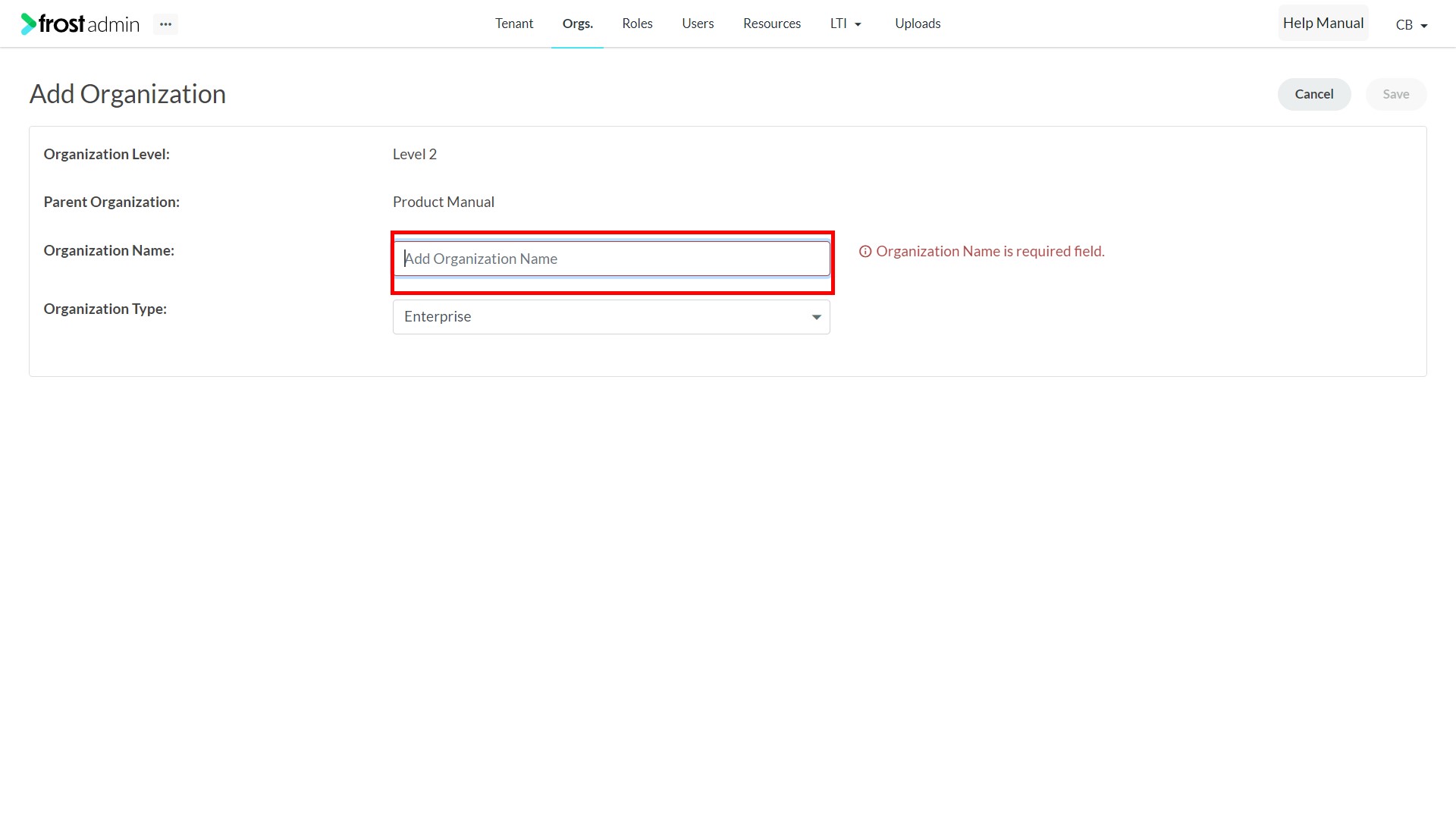

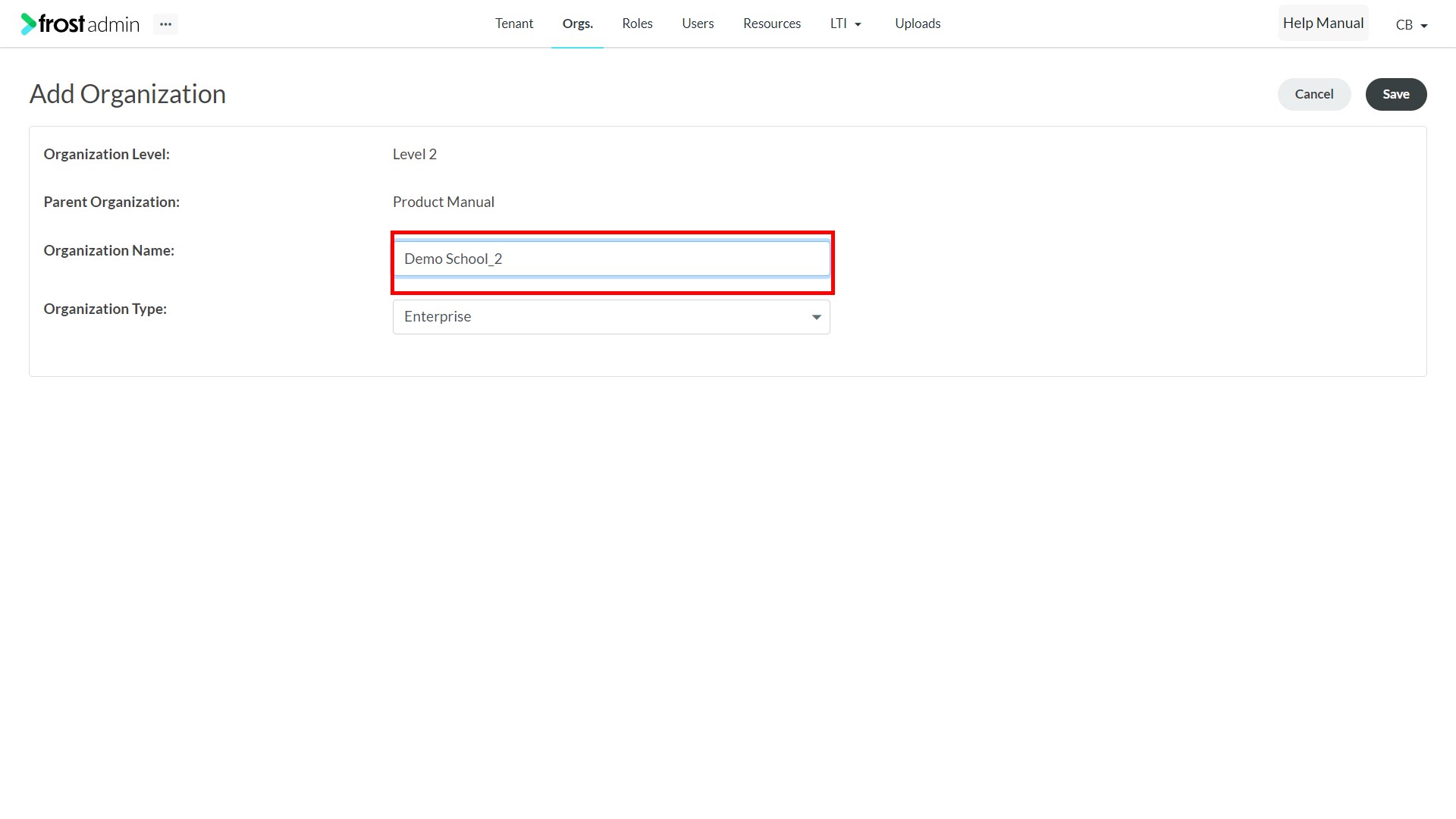

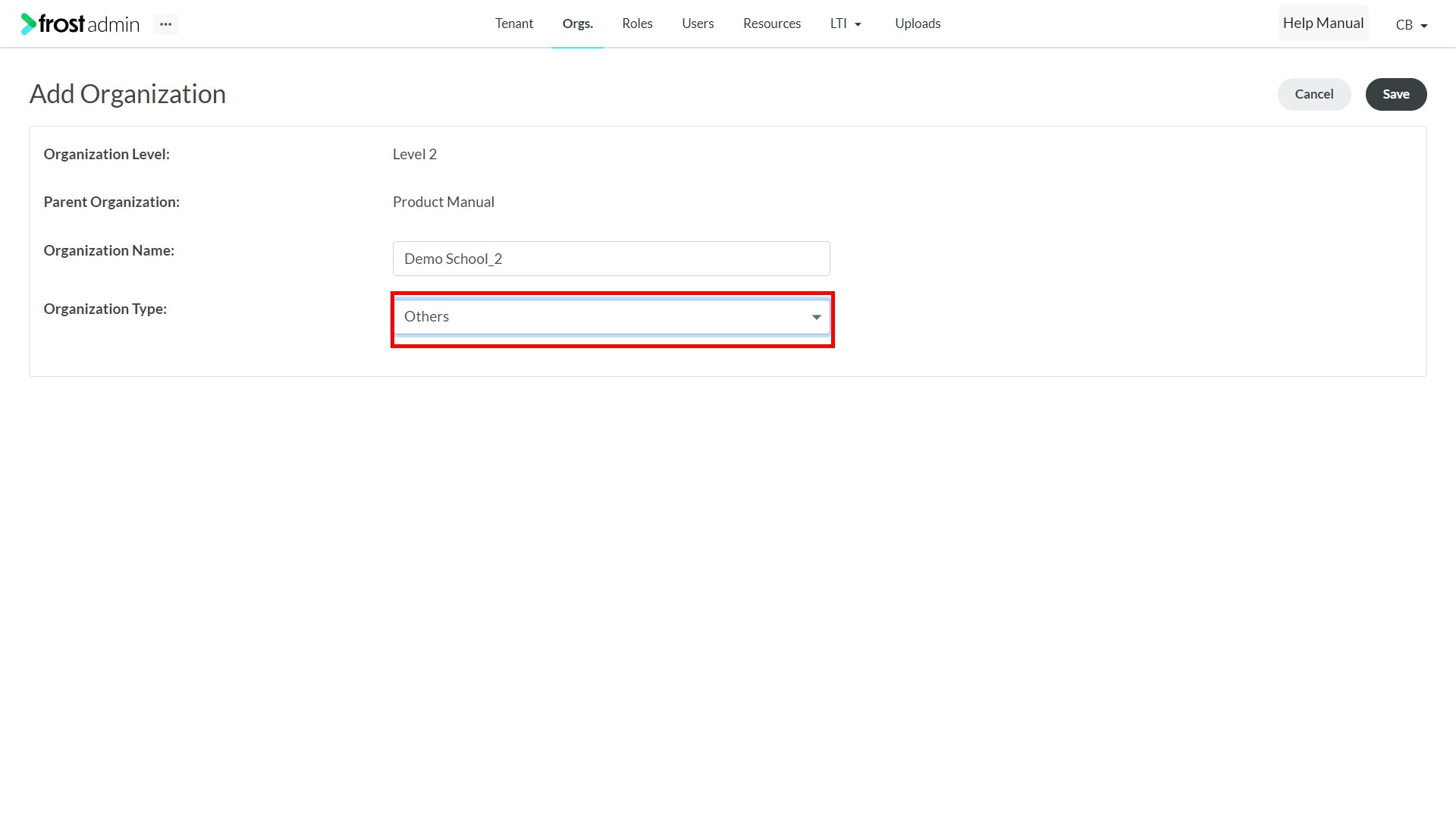

4. Enter the organization details:
   • Organization Name

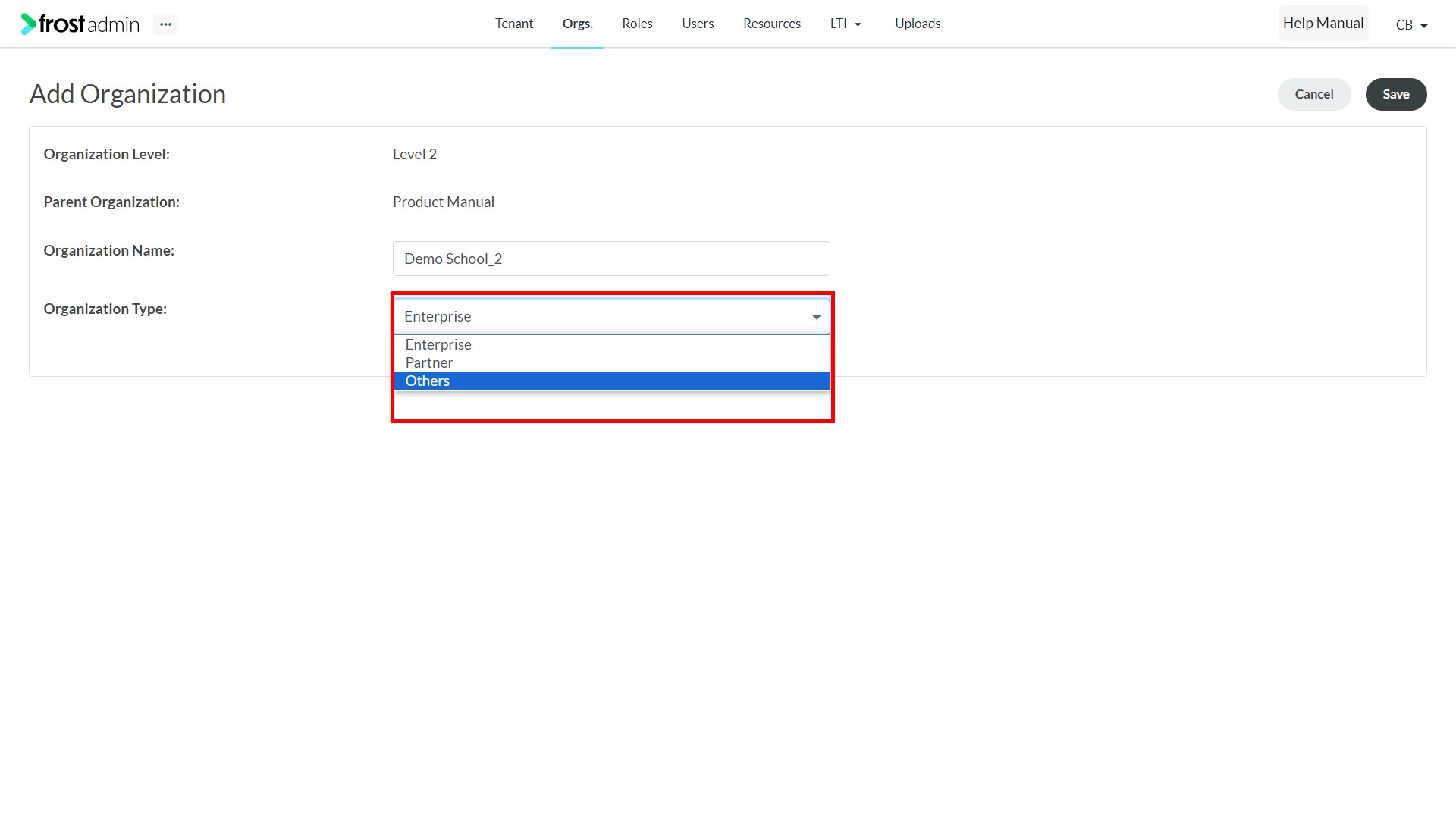

   • Organization Type – choose one from the list:
     • Enterprise (Default)
     • Partner
     • Others

Note: Any new organization gets created as a Level 2 by default. Level 1 organization is the parent organization and Level 2 can be the partners or schools that the course gets distributed to.

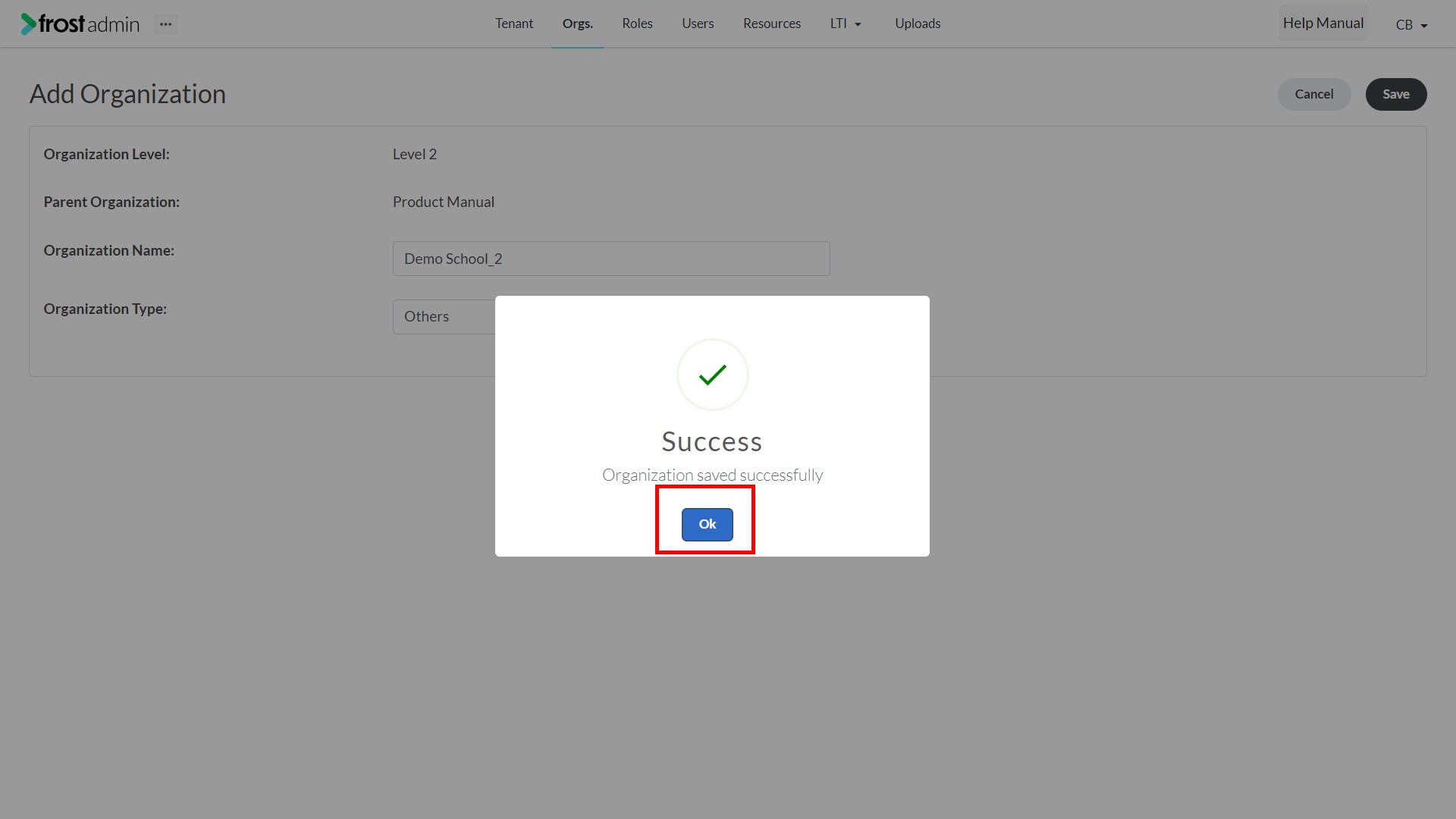

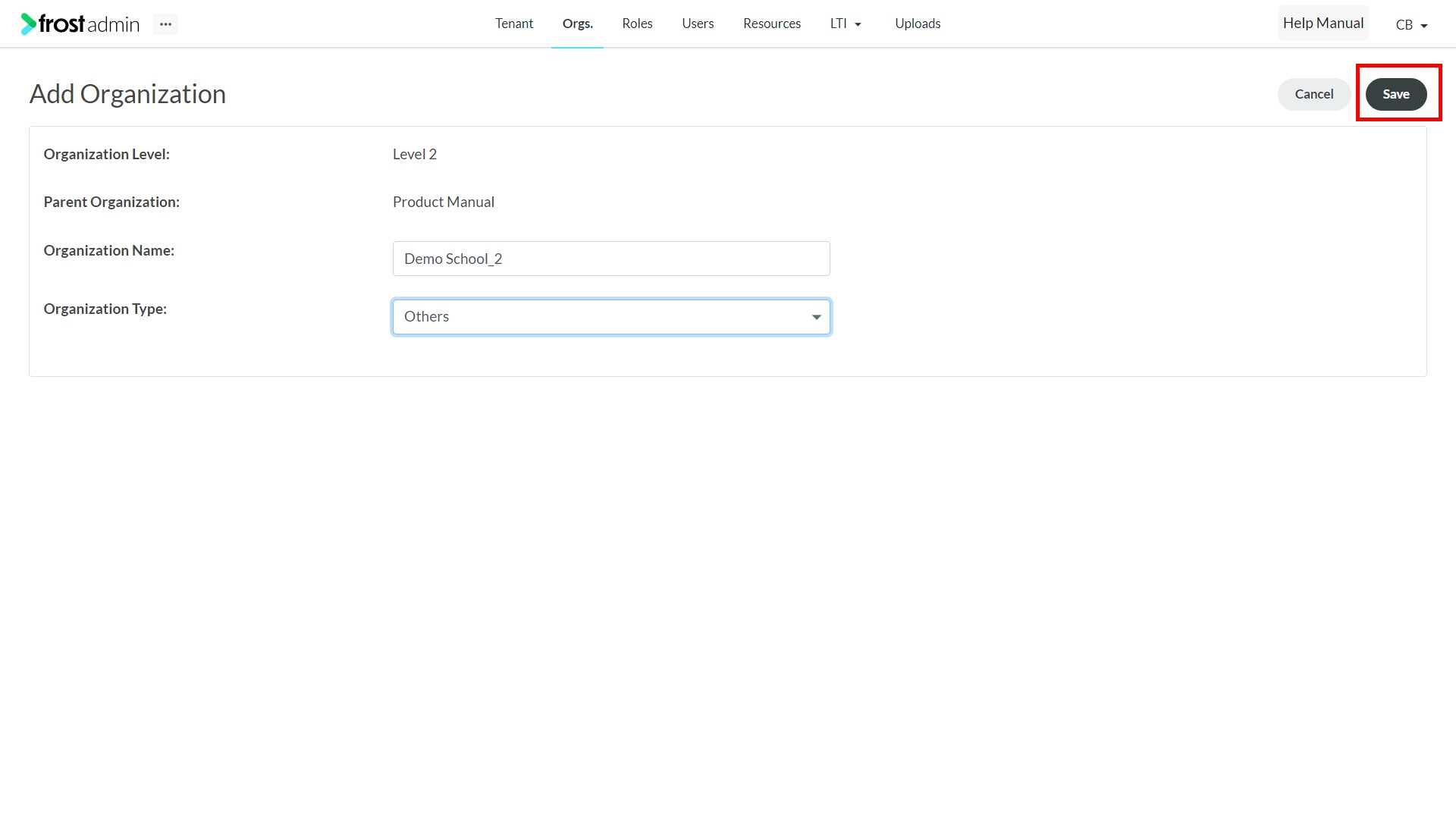

5. Click the Save button.

Step 4: Associating Resource to the Organization

1.
2.
3.
4.
5.
6.
7.

Previous Next

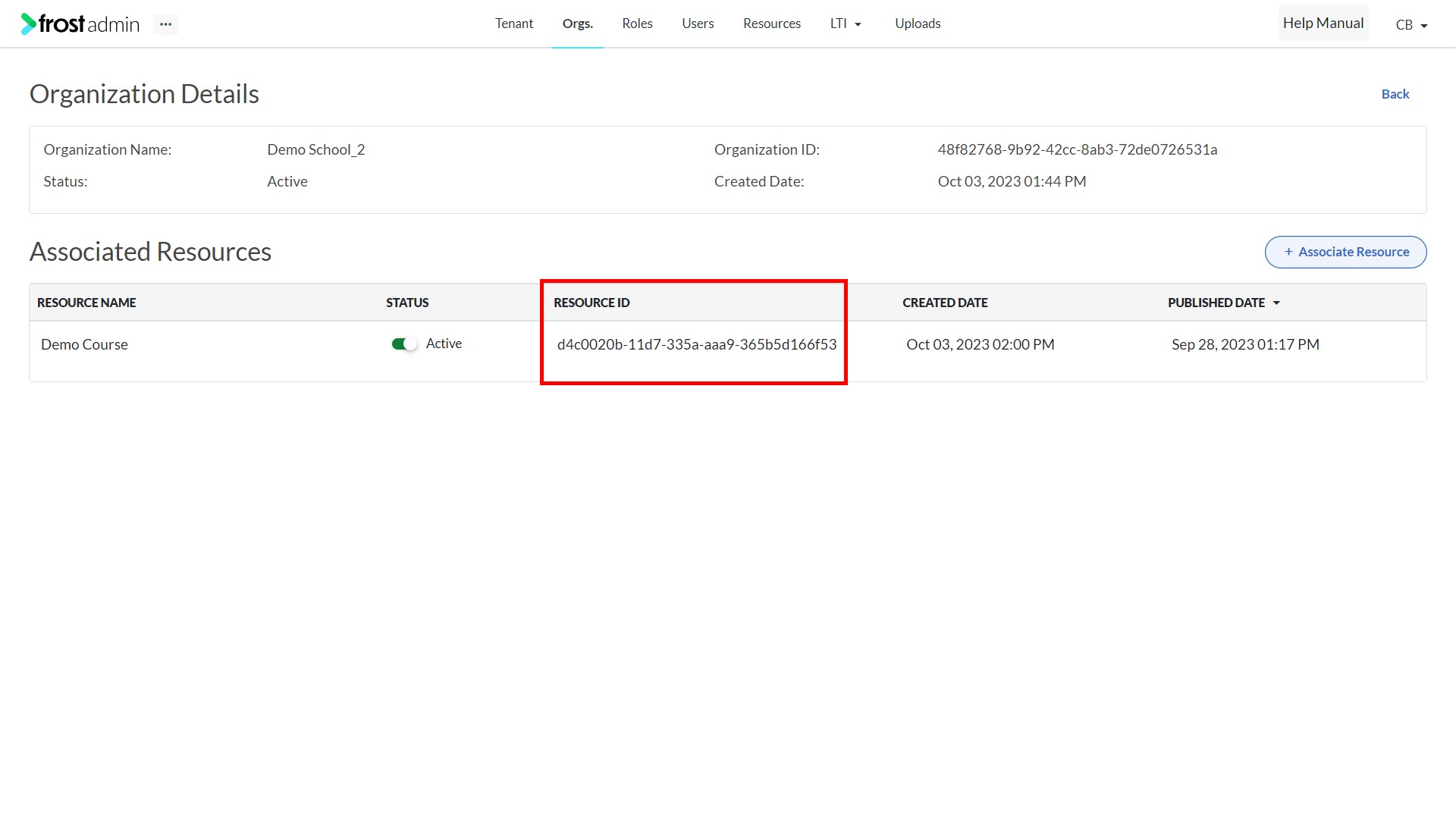

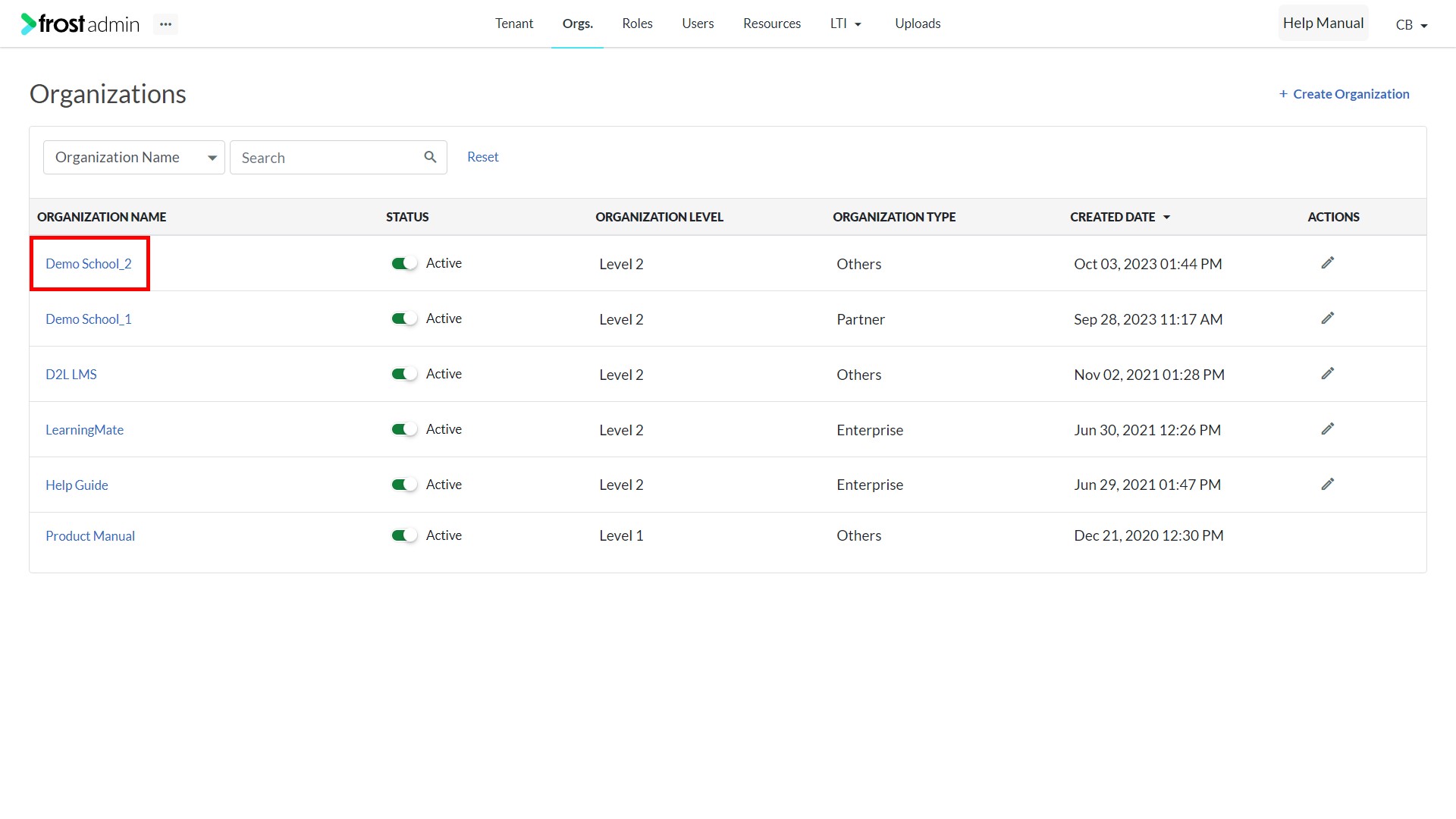

1. Select an Organization.

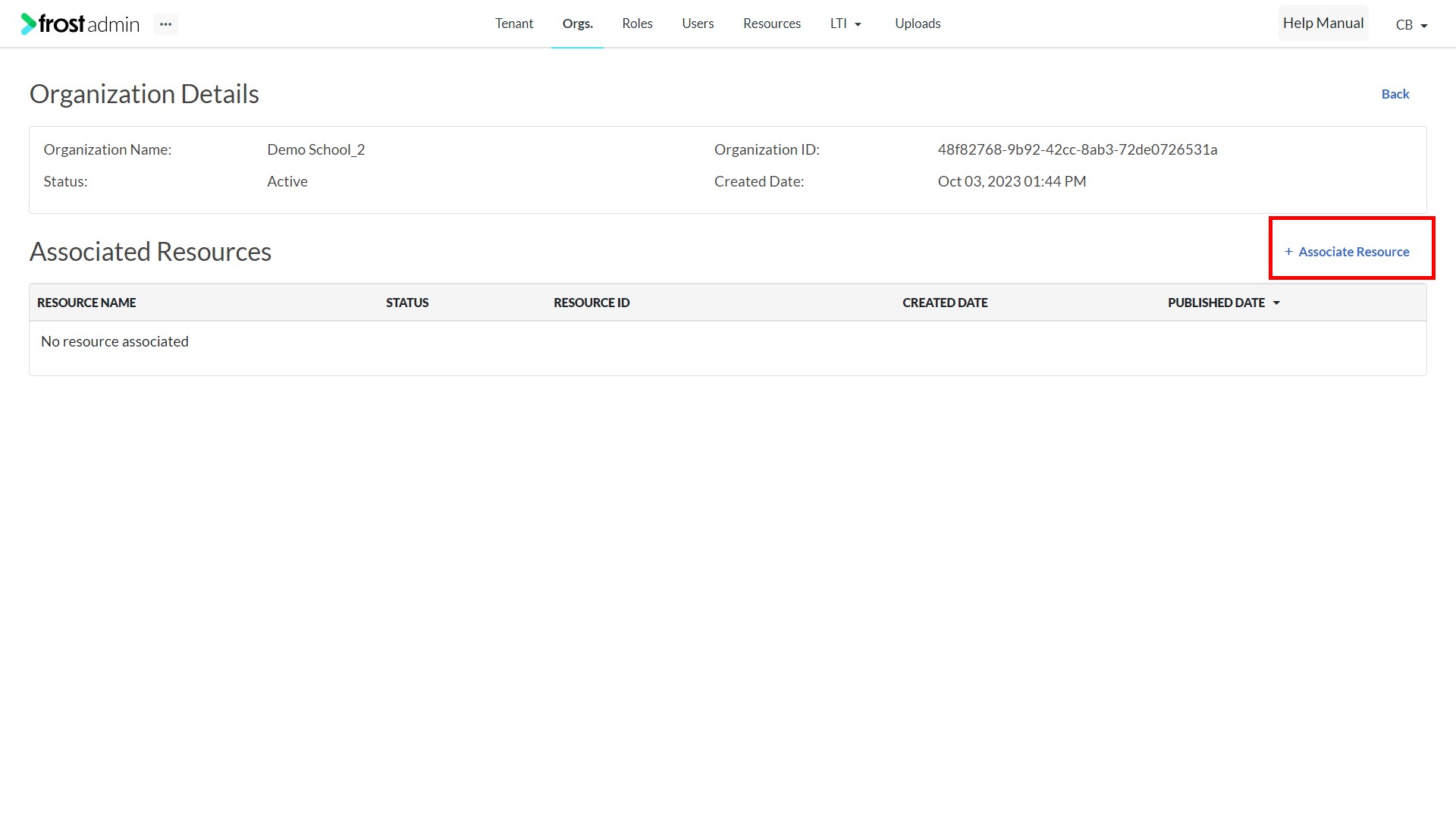

2. Under the Associated Resources section, click the Associate Resource button.

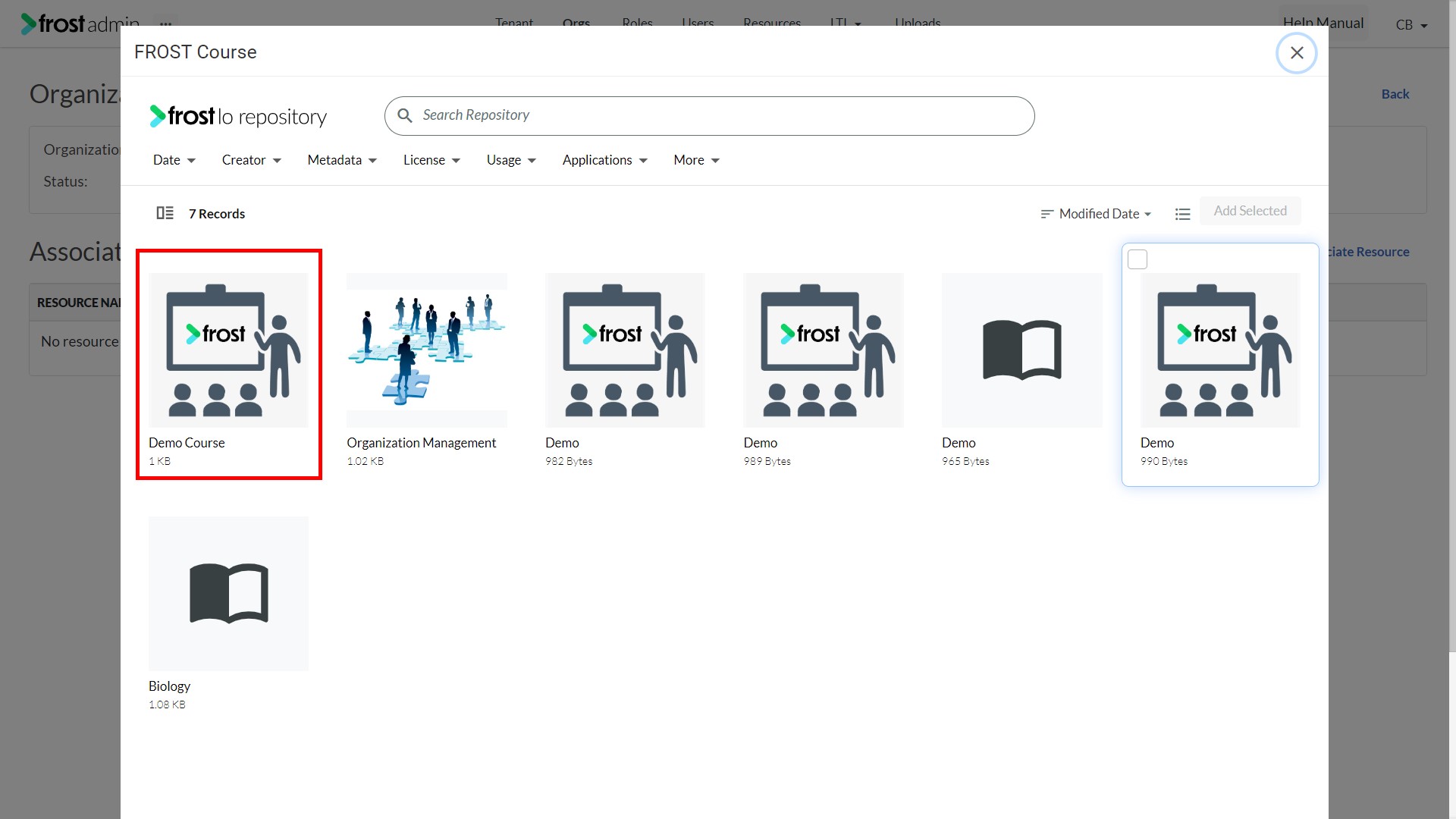

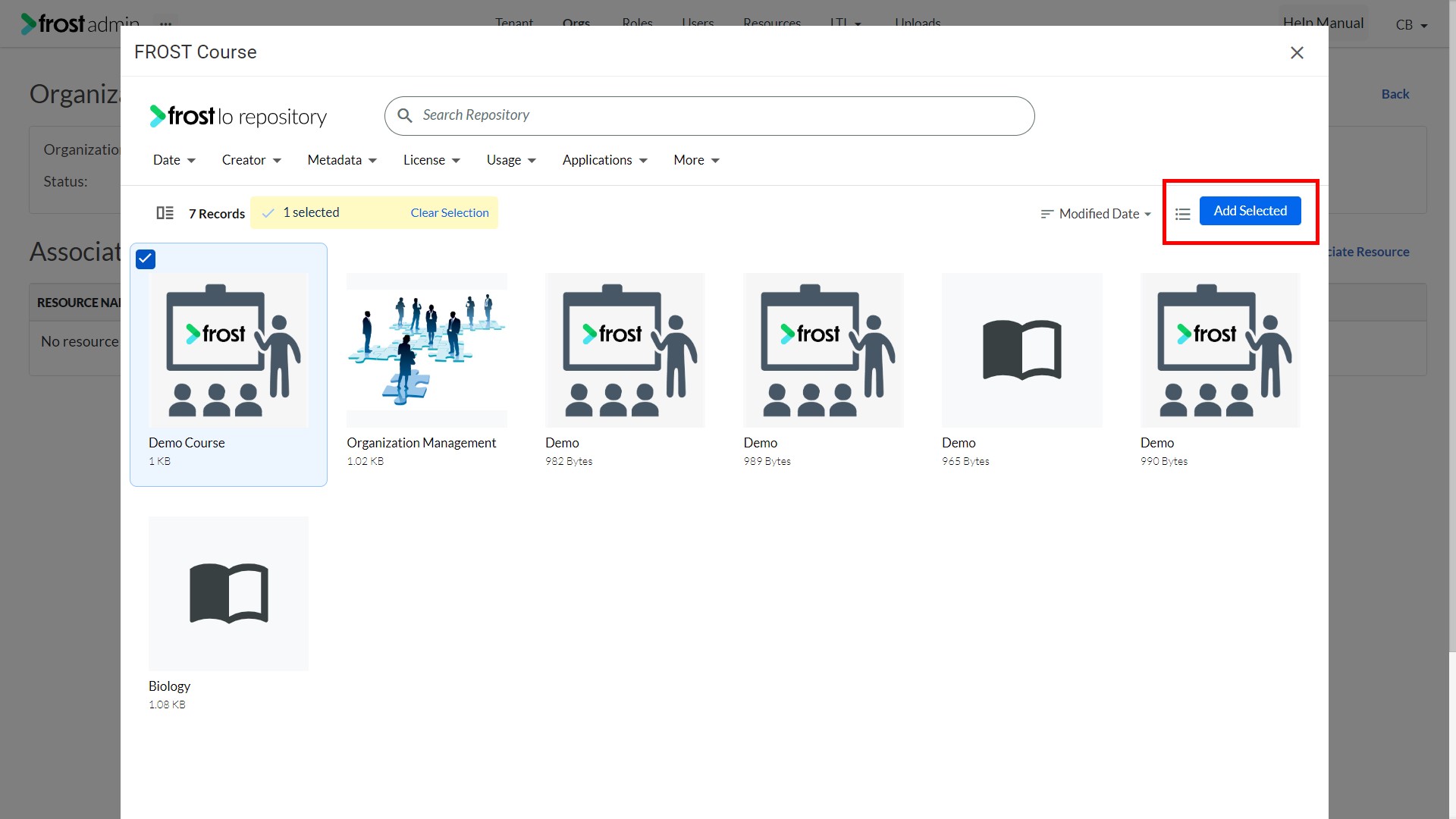

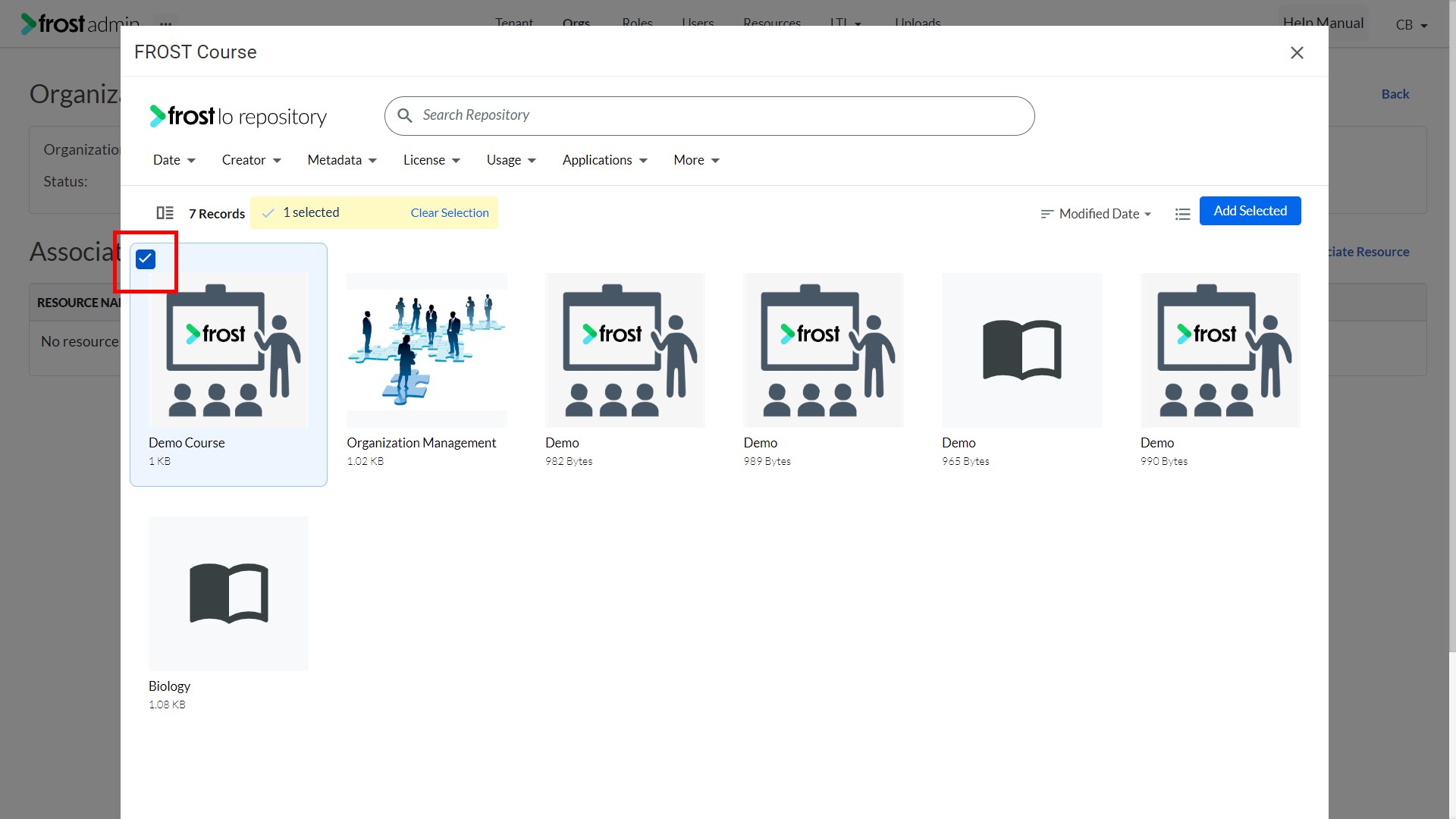

3. Select the resource.

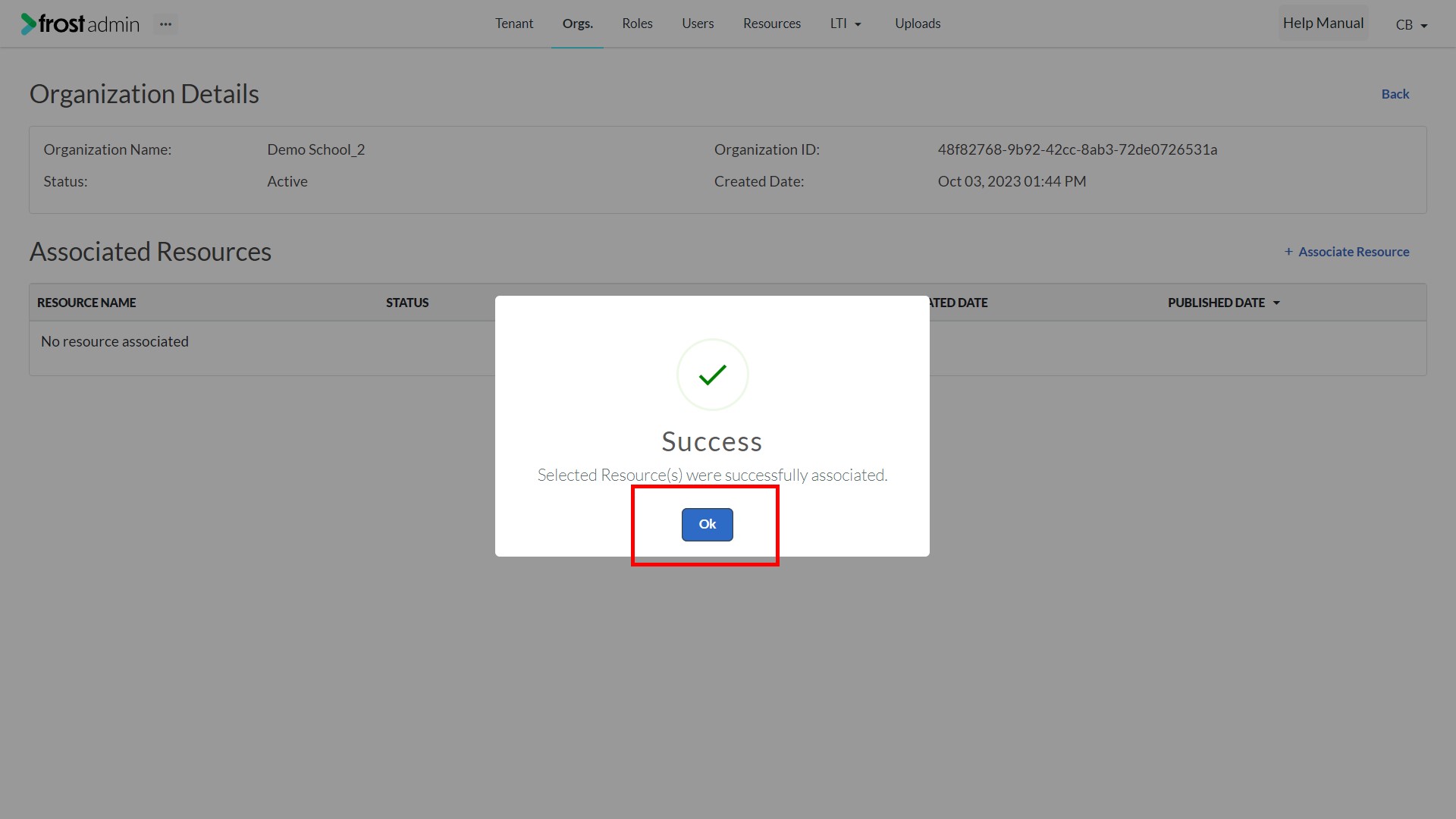

4. Click Add Selected.

Step 5: Adding LTI 1.1 Configuration

1.
2.
3.
4.
5.
6.
7.

Previous Next

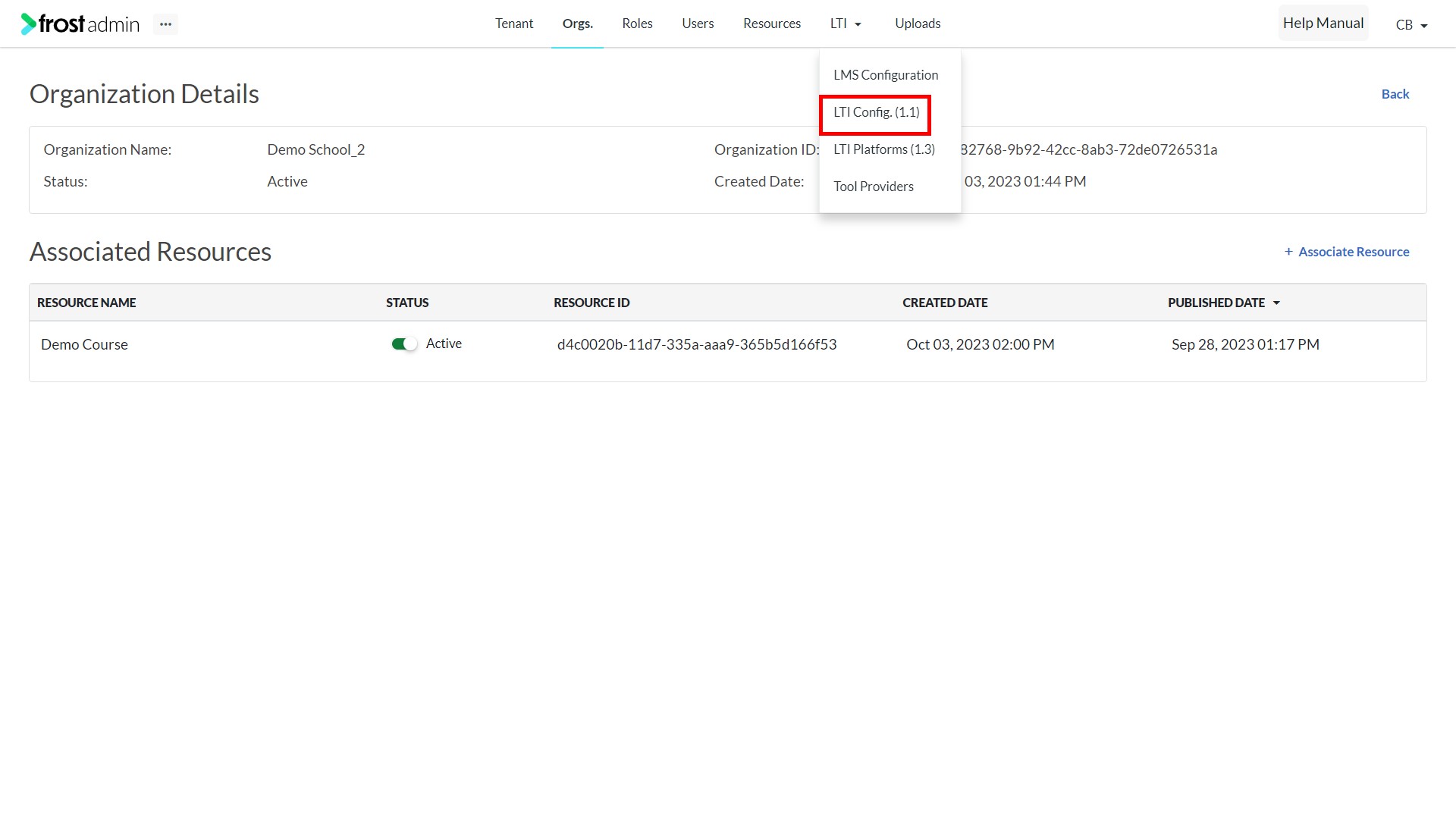

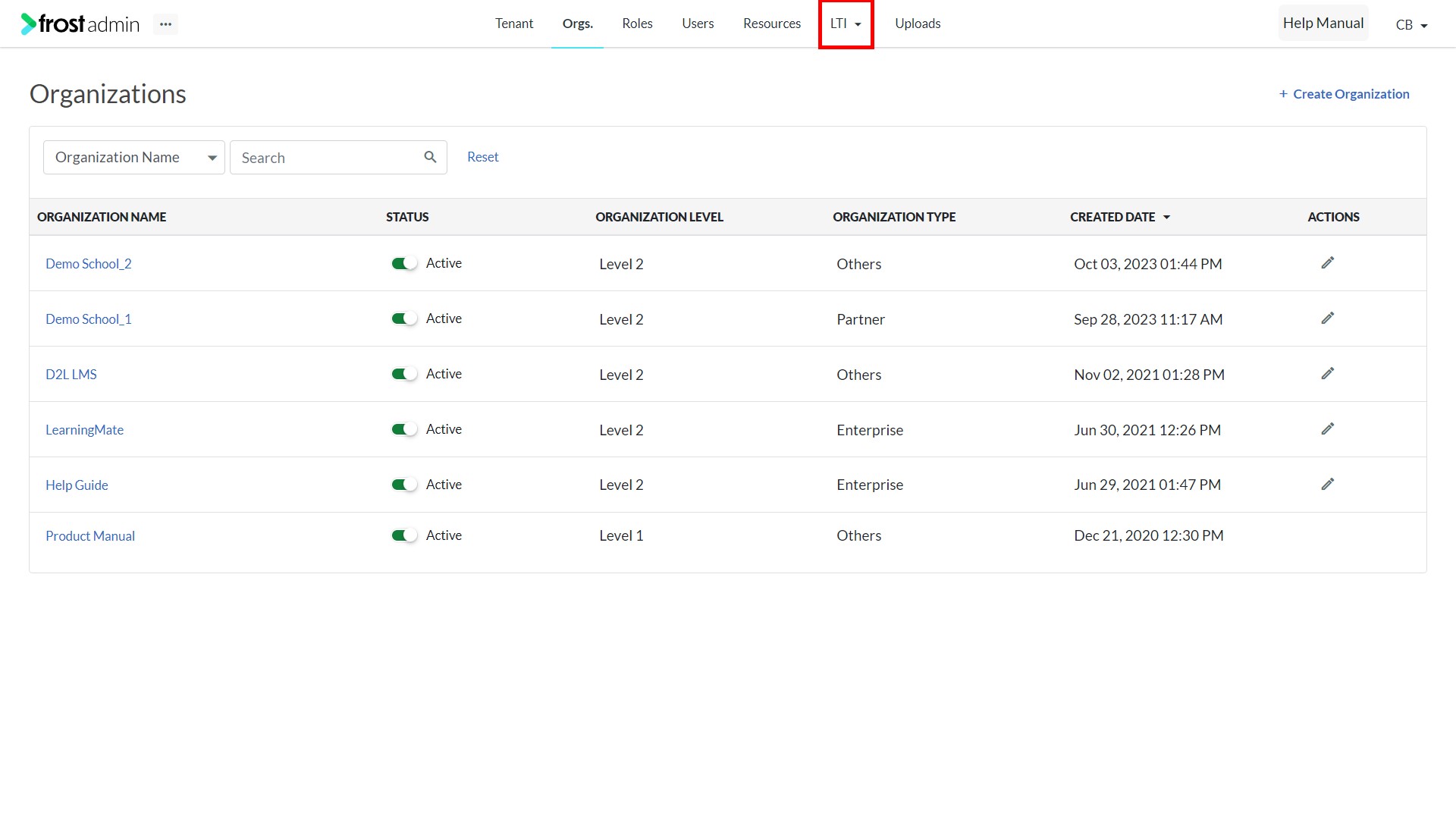

1. From the Admin dashboard, select the LTI drop-down and click LTI Config. (1.1).

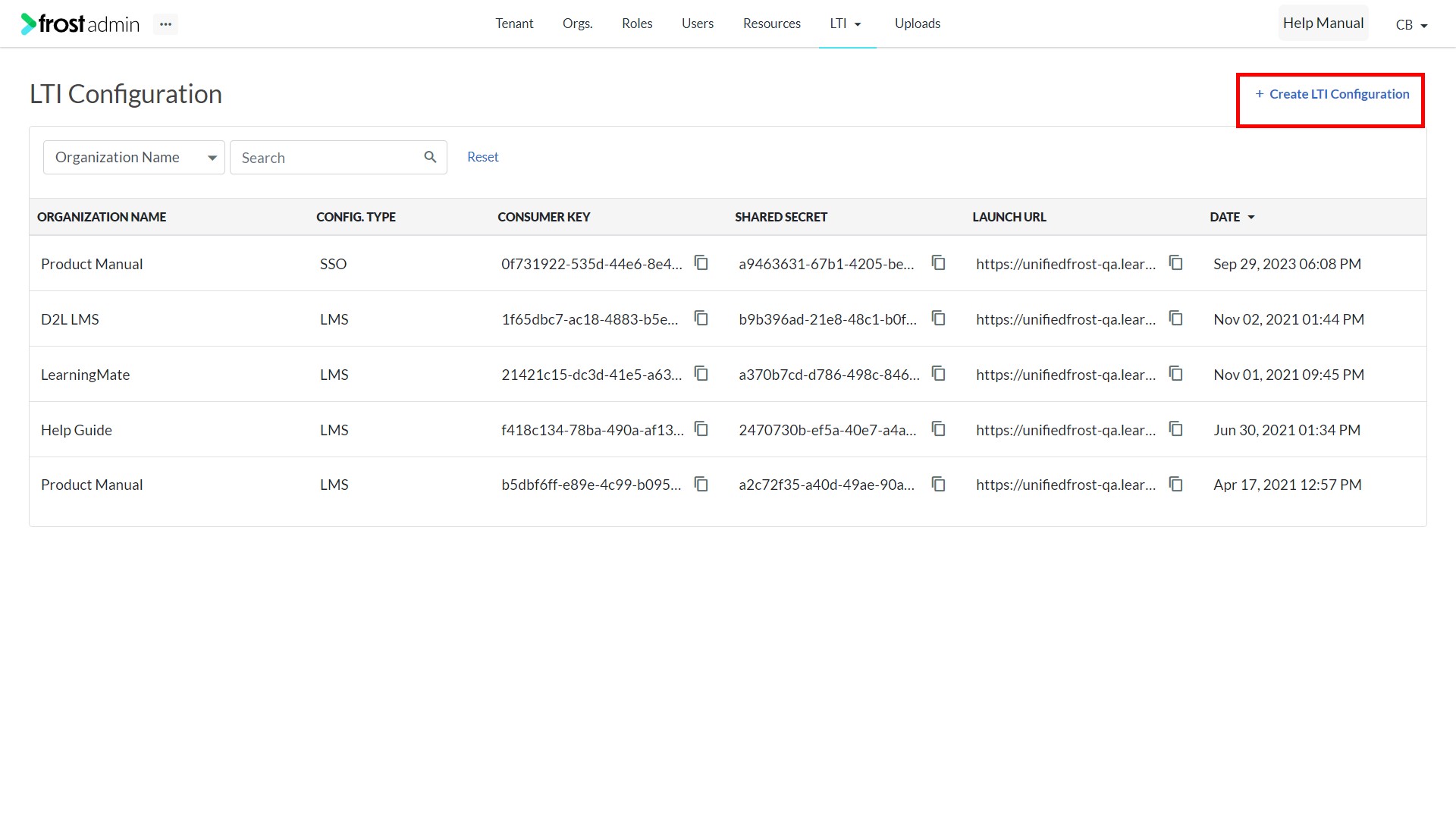

2. Click the Create LTI Configuration button.

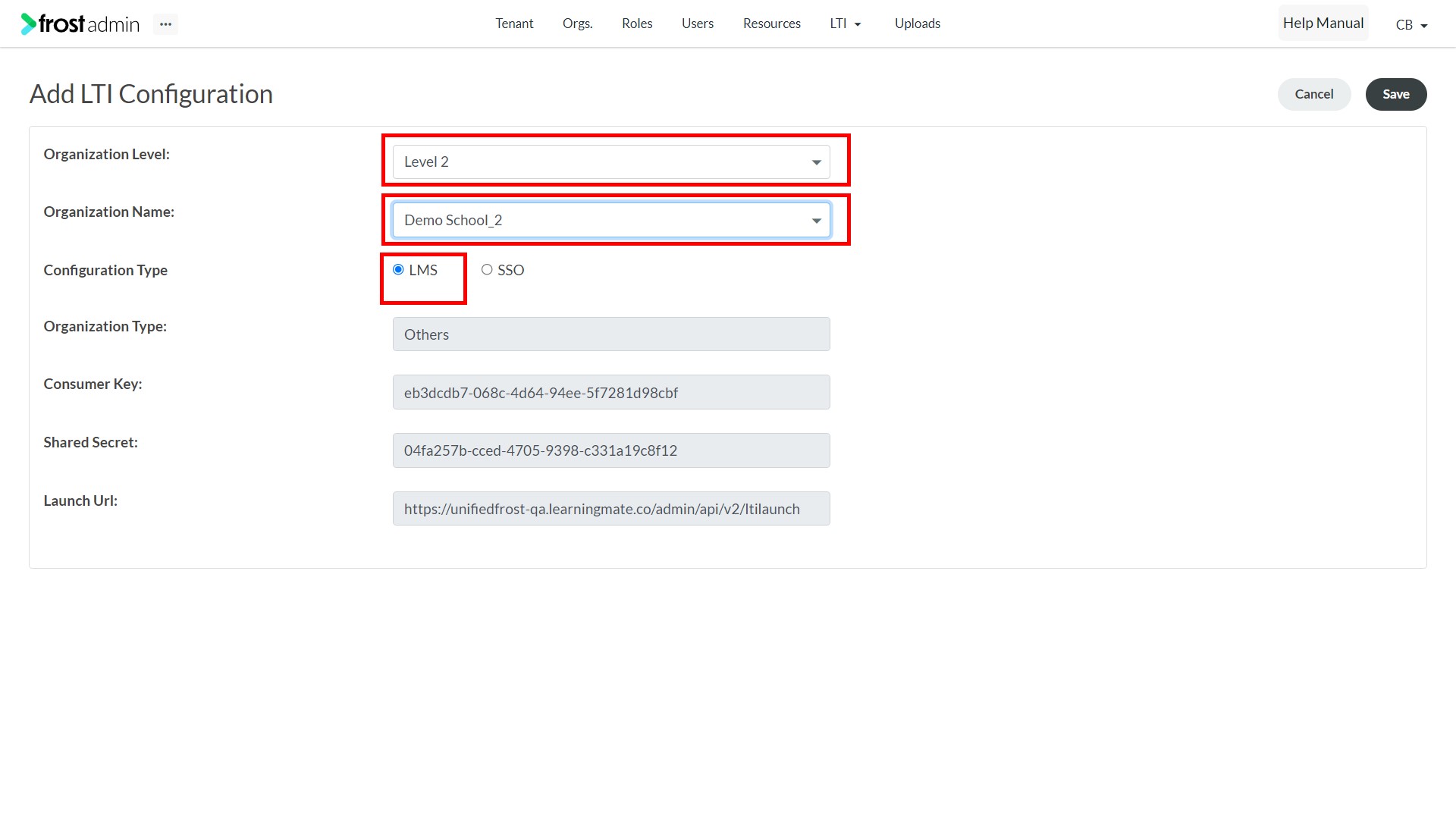

3. On the Add LTI Configuration form fill in the necessary details such as:
   • Organization Level – the level of the organization:
     • Level 1
     • Level 2
   • Organization Name – select an organization
   • Configuration Type - select organization type as LMS
4. Based on the data selected above, the following fields are generated automatically:
   • Organization Type
   • Consumer Key
   • Shared Secret
   • Launch URL

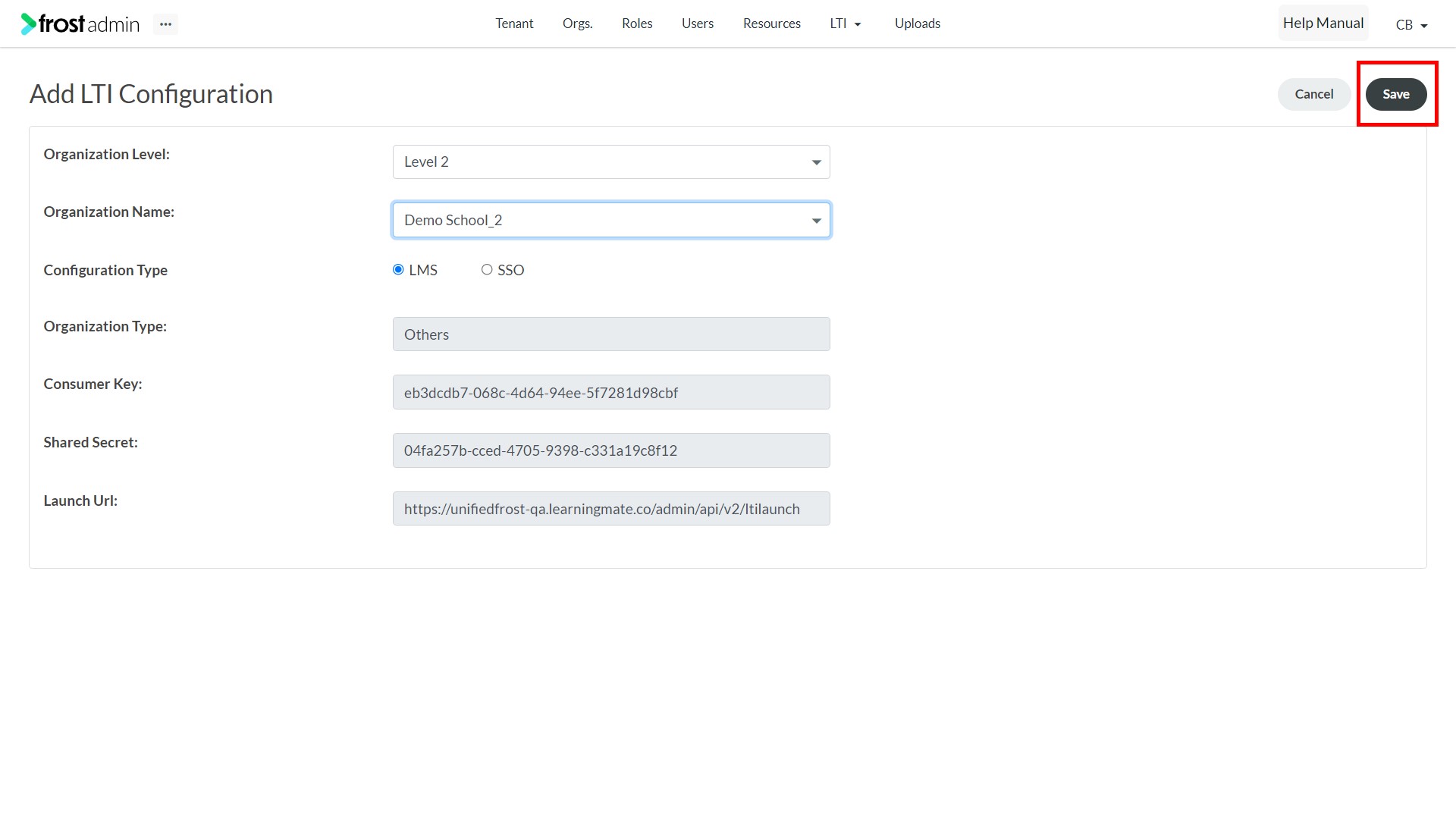

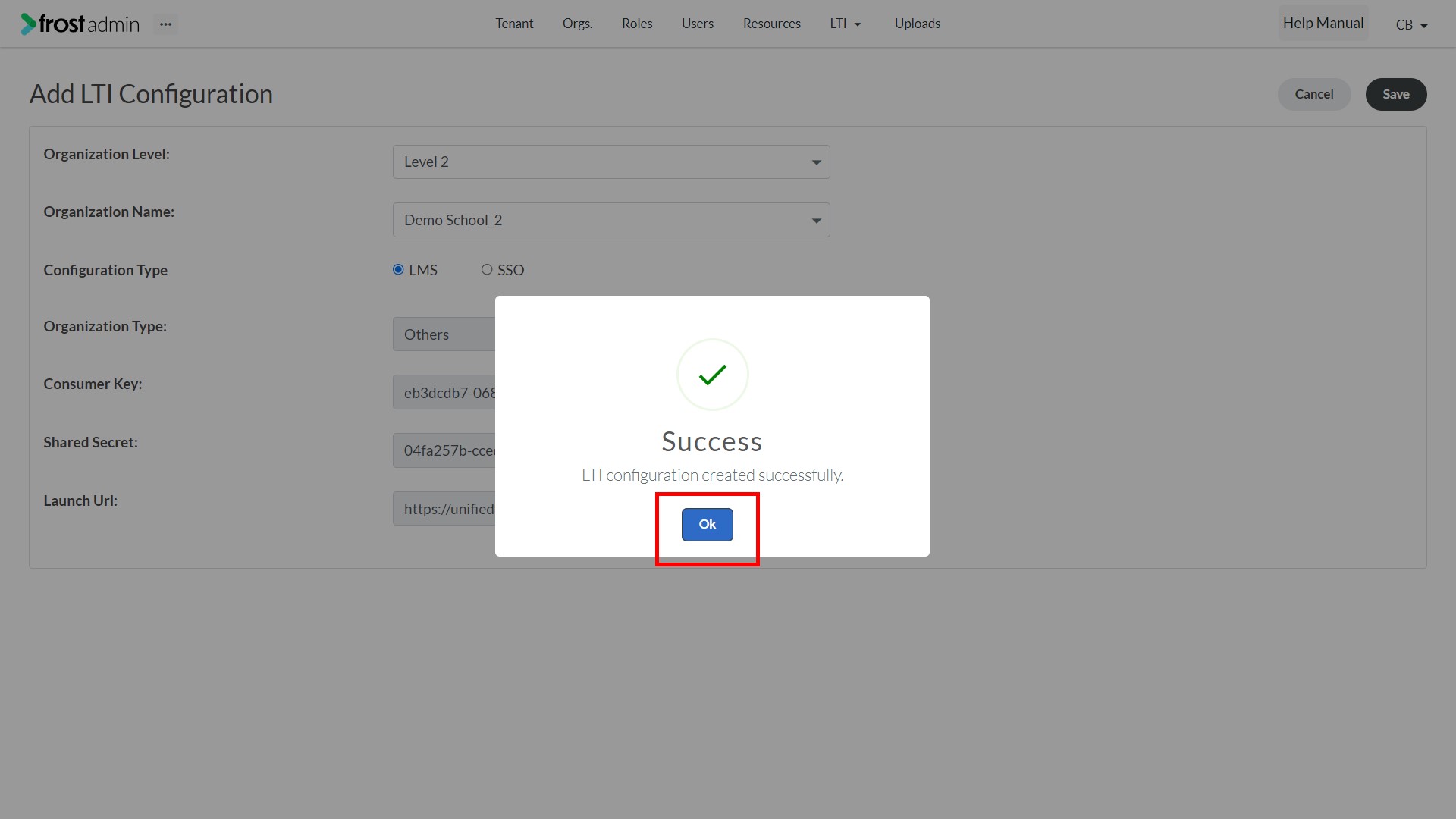

5. Click the Save button.

Step 6: Importing the Course in Moodle

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.

Previous Next

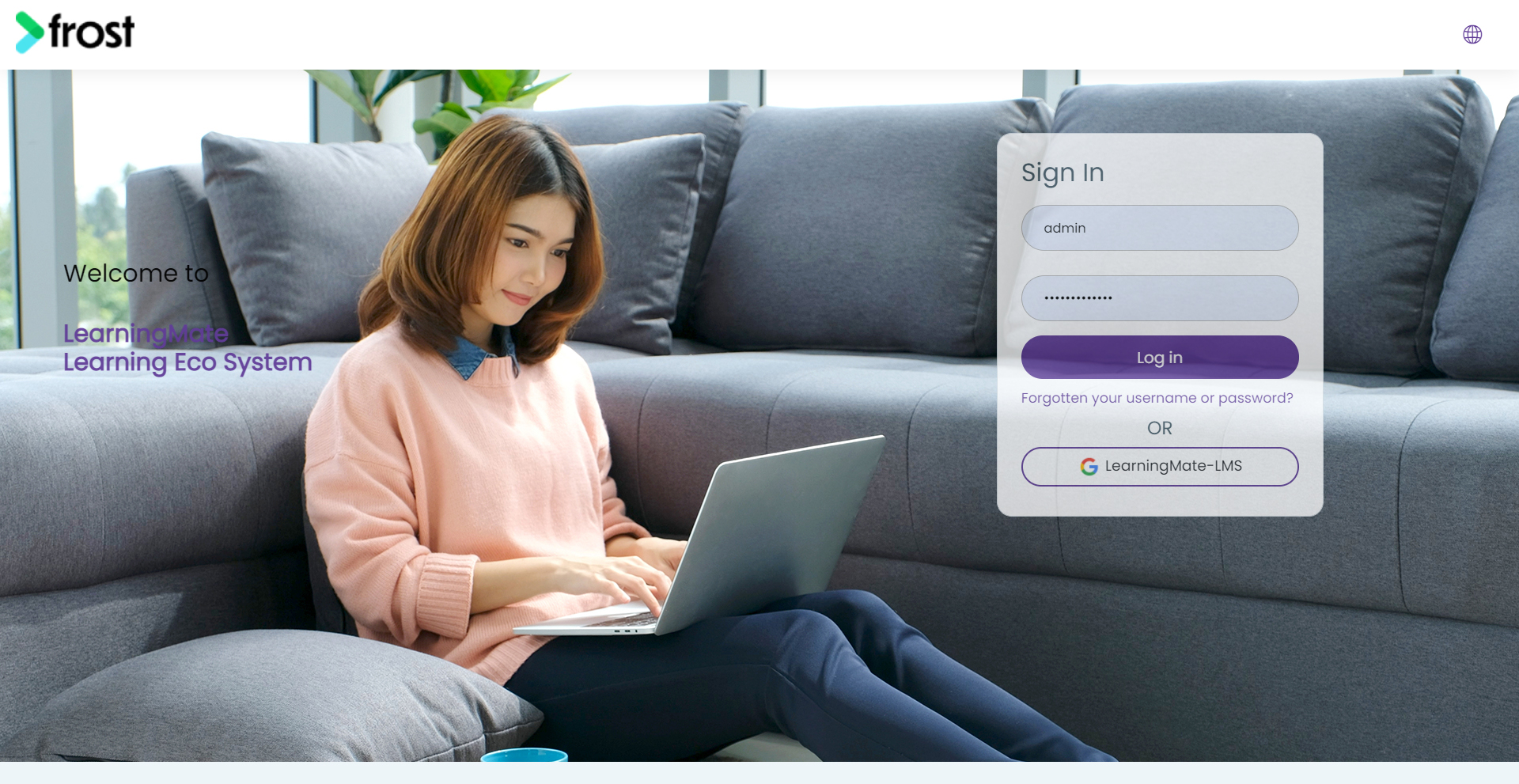

1. Login into Moodle as an admin.

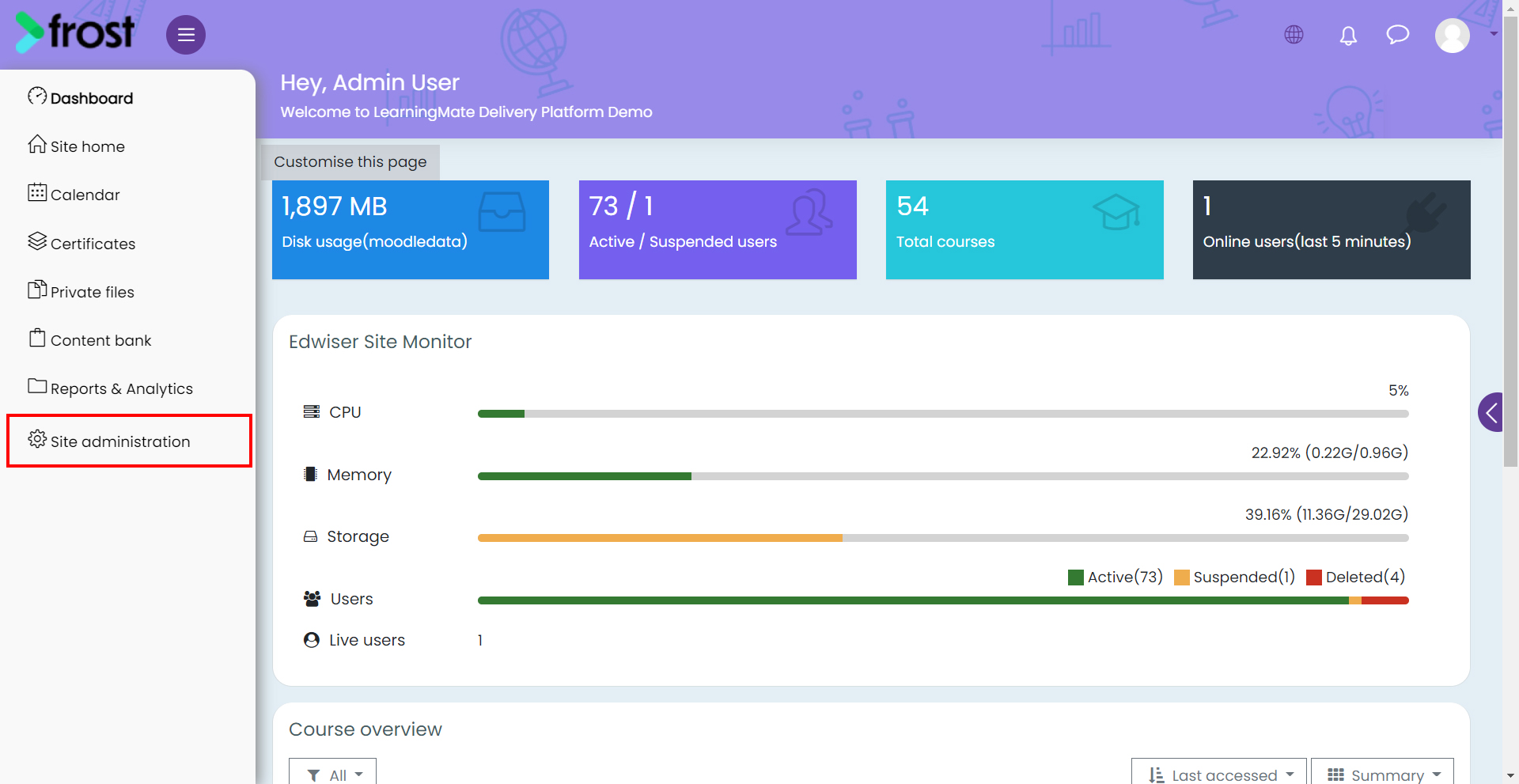

2. Navigate to Site administration.

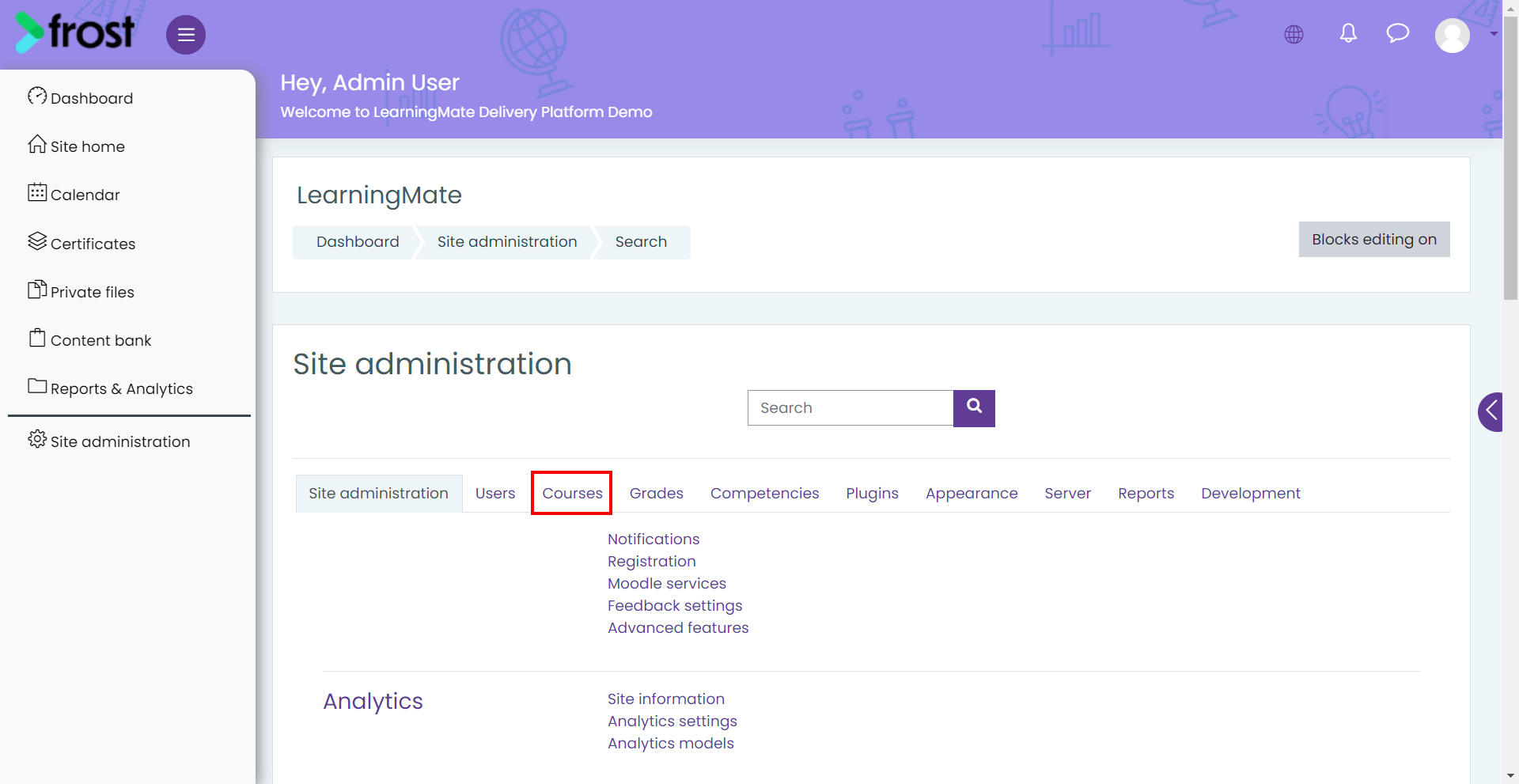

3. Select Courses.

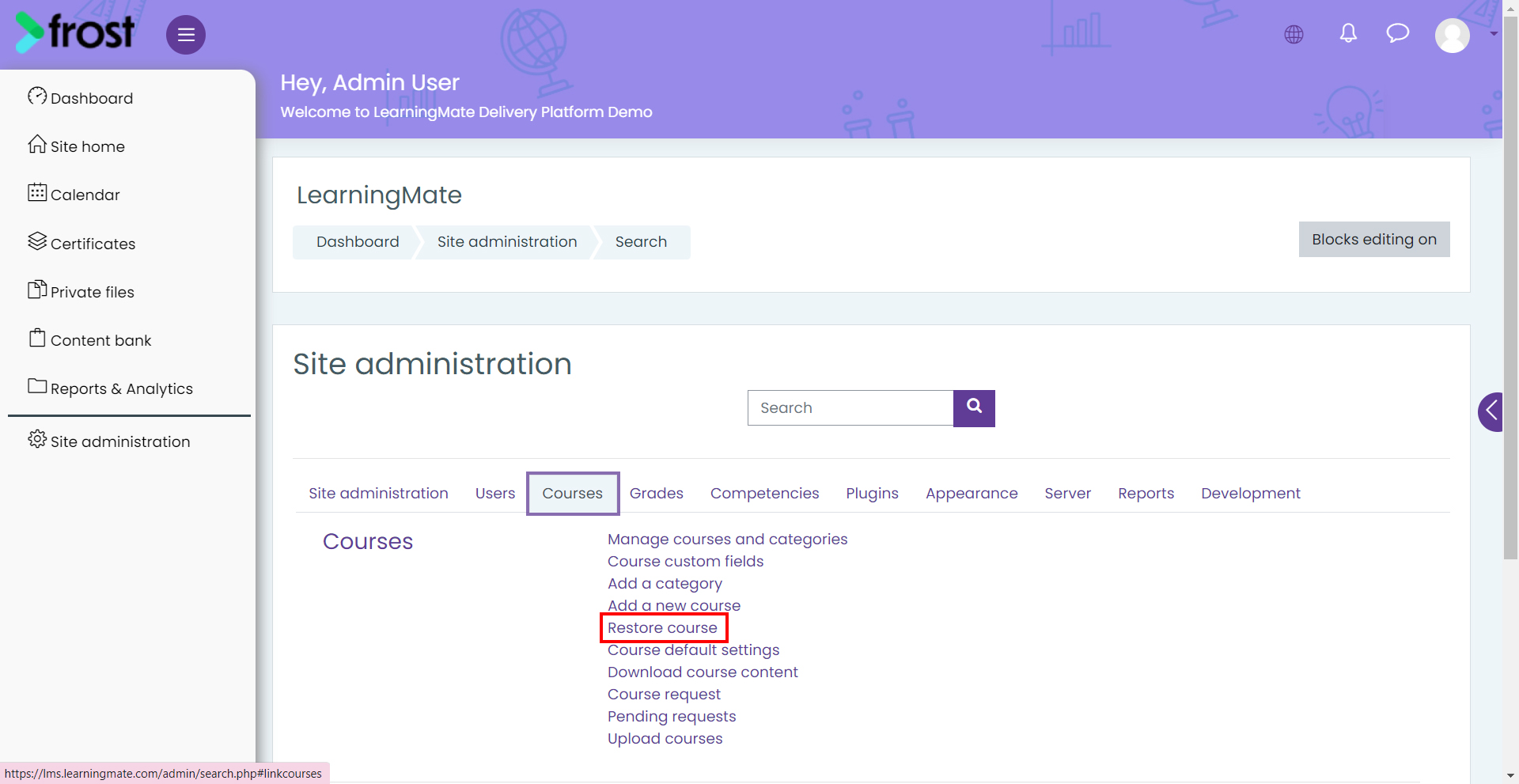

4. Under Courses, select Restore course.

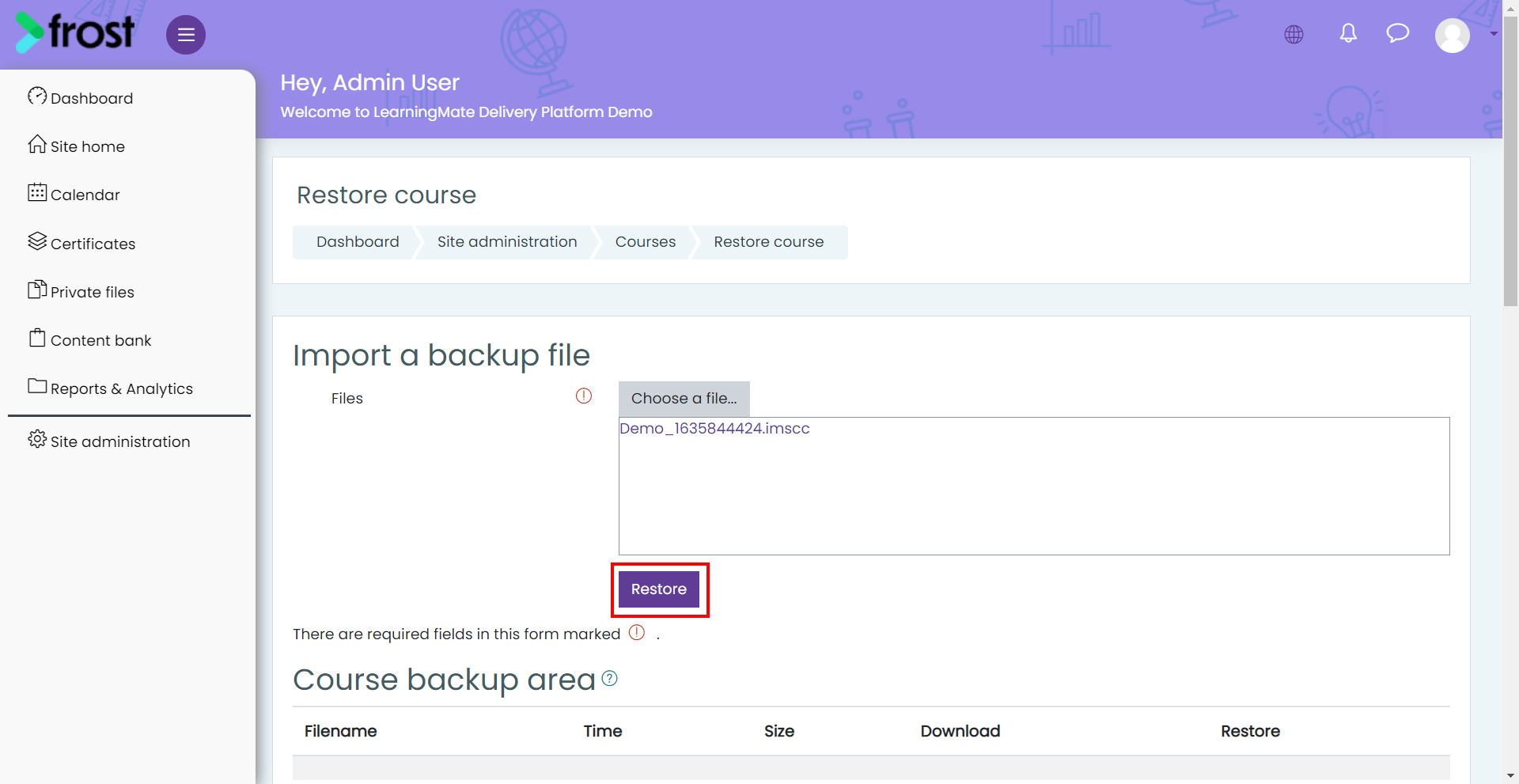

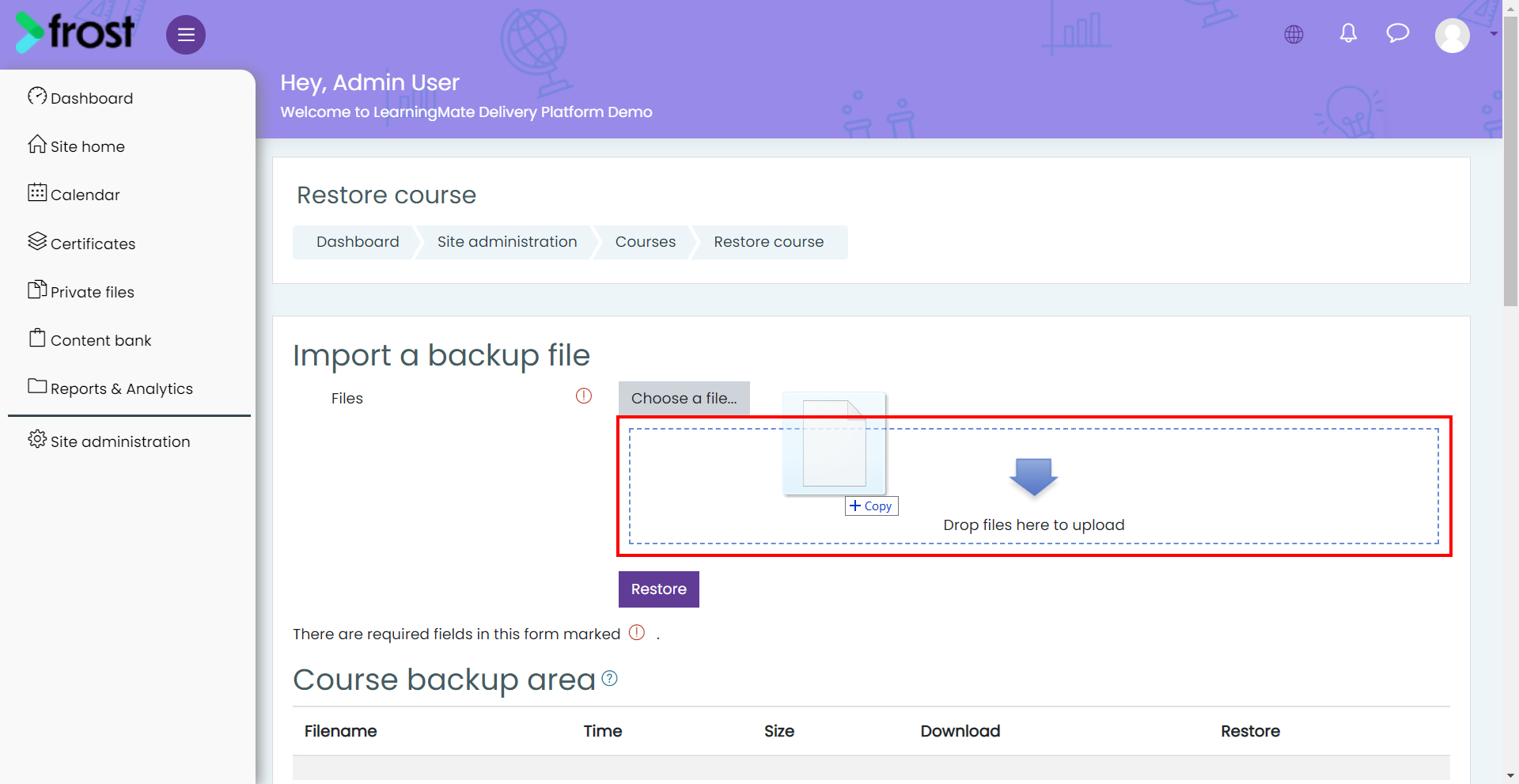

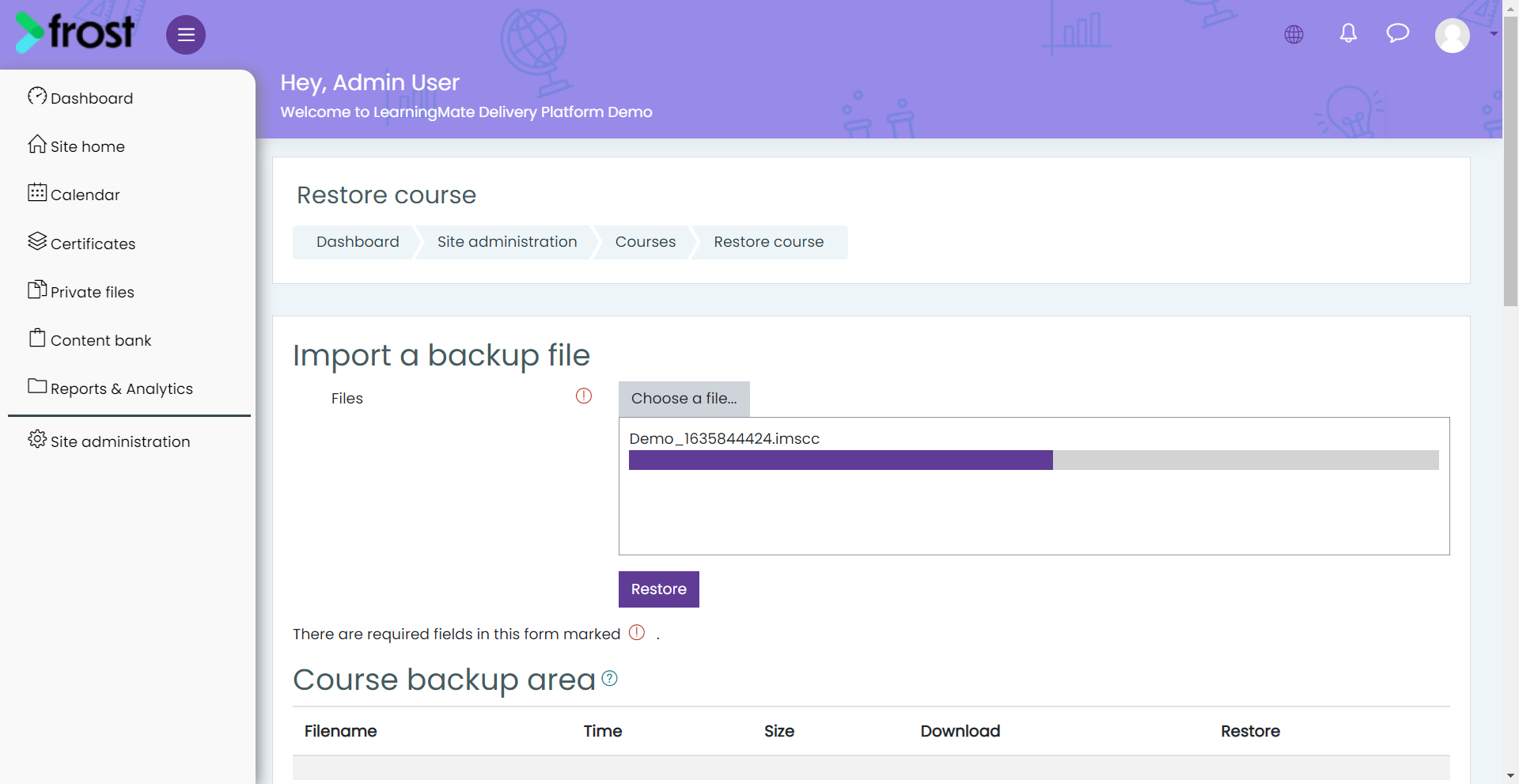

5. Drag and Drop the Exported Course Package and click Restore.

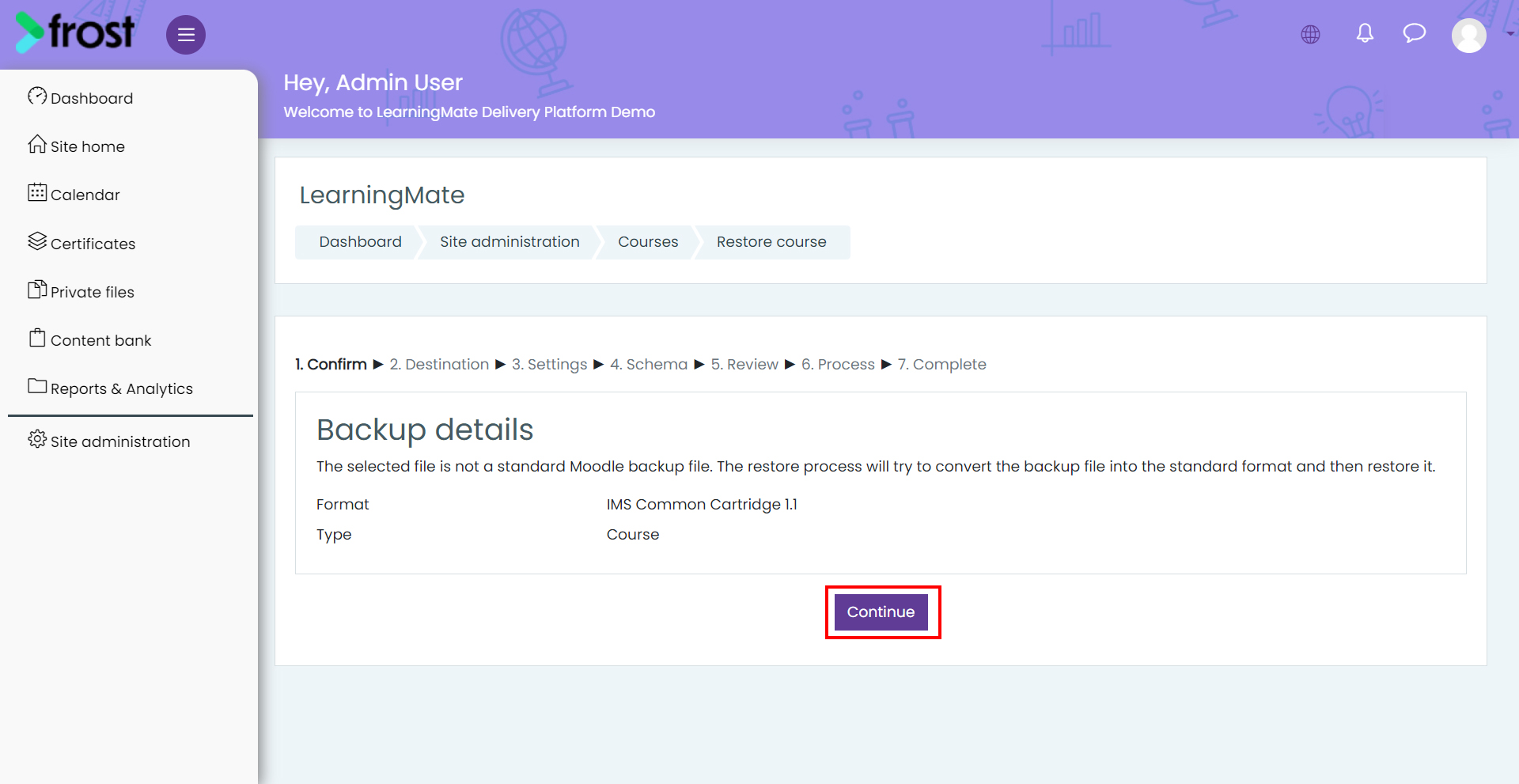

6. On the Confirm page, click Continue.

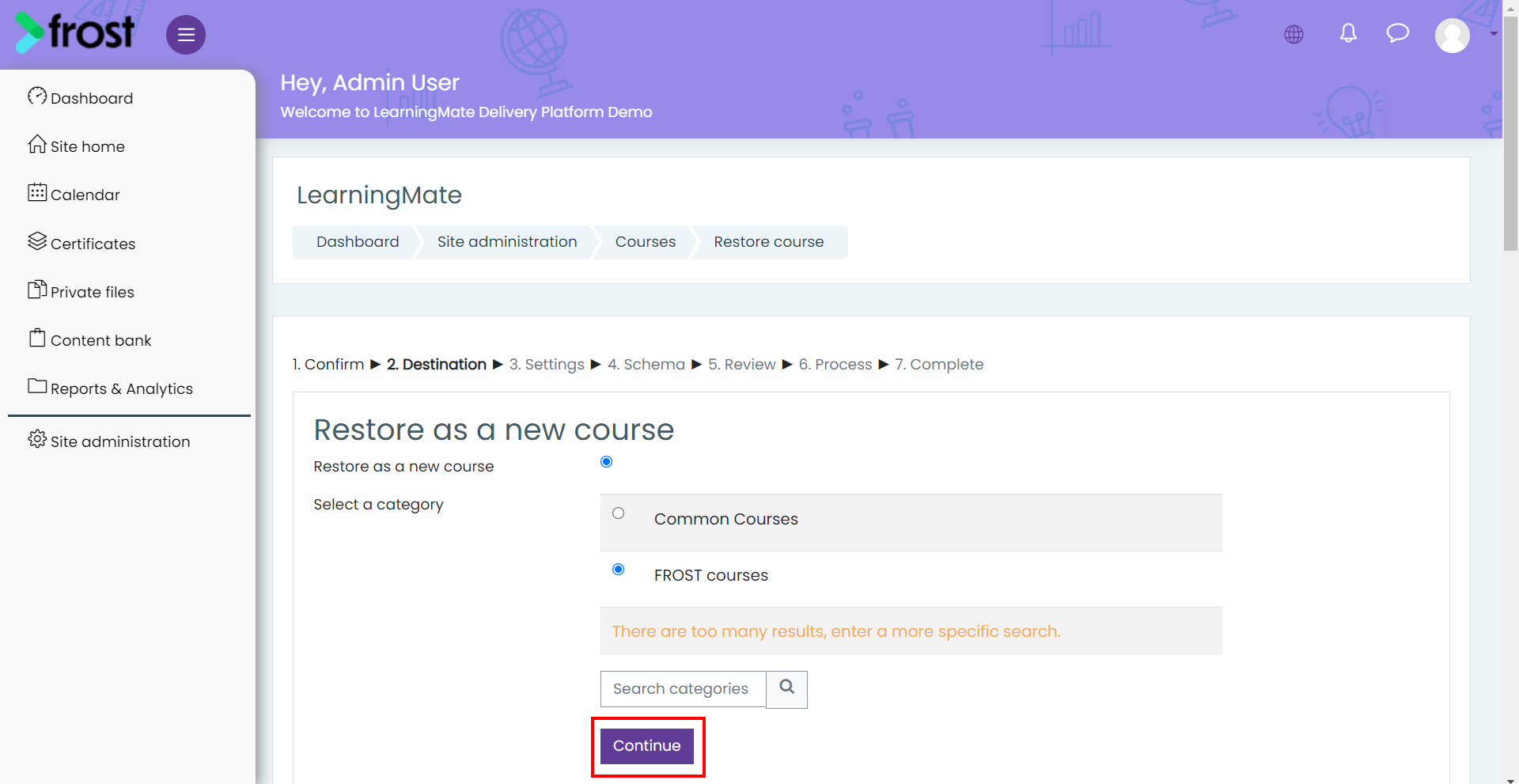

7. On the Destination page, select a category, and click Continue.

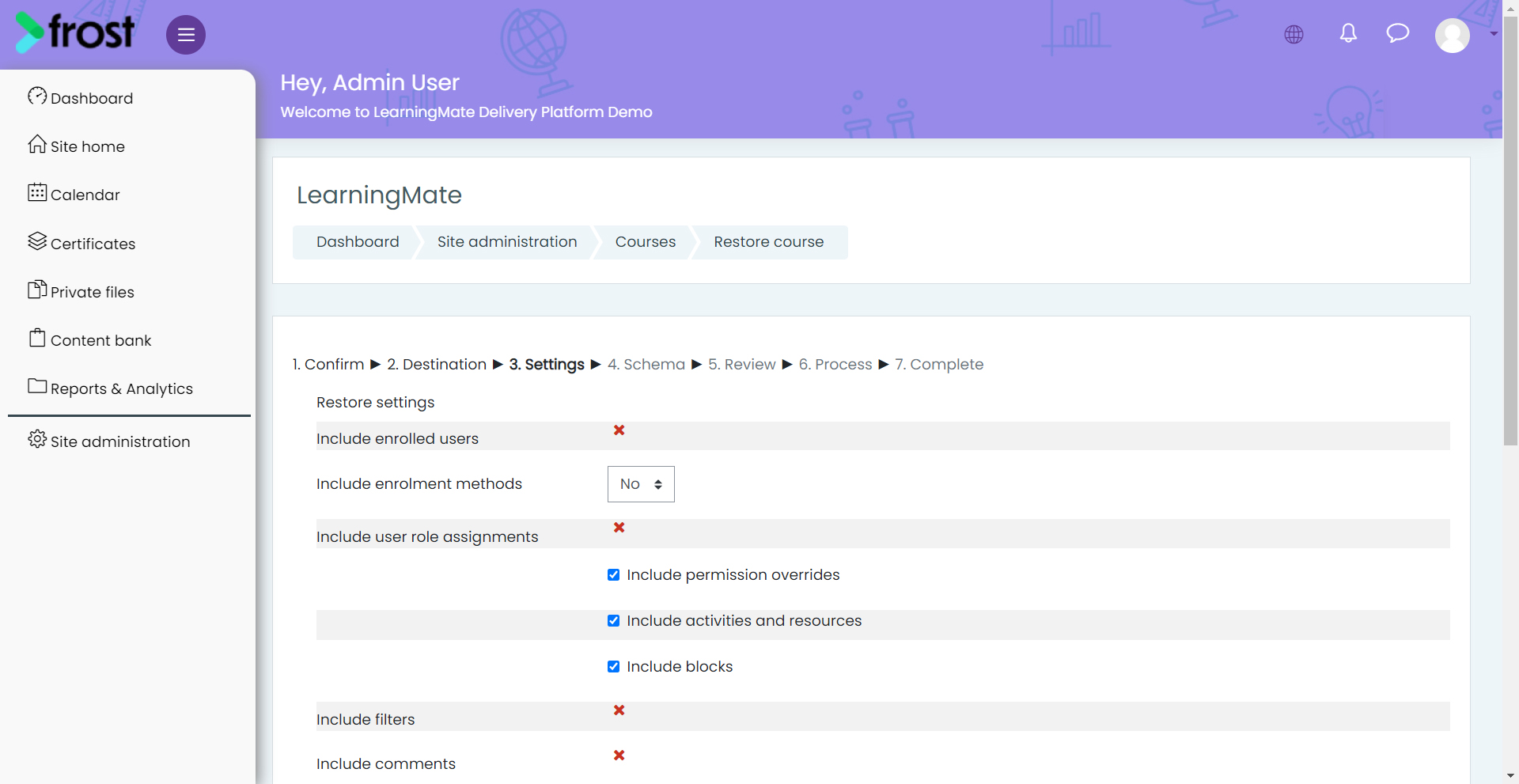

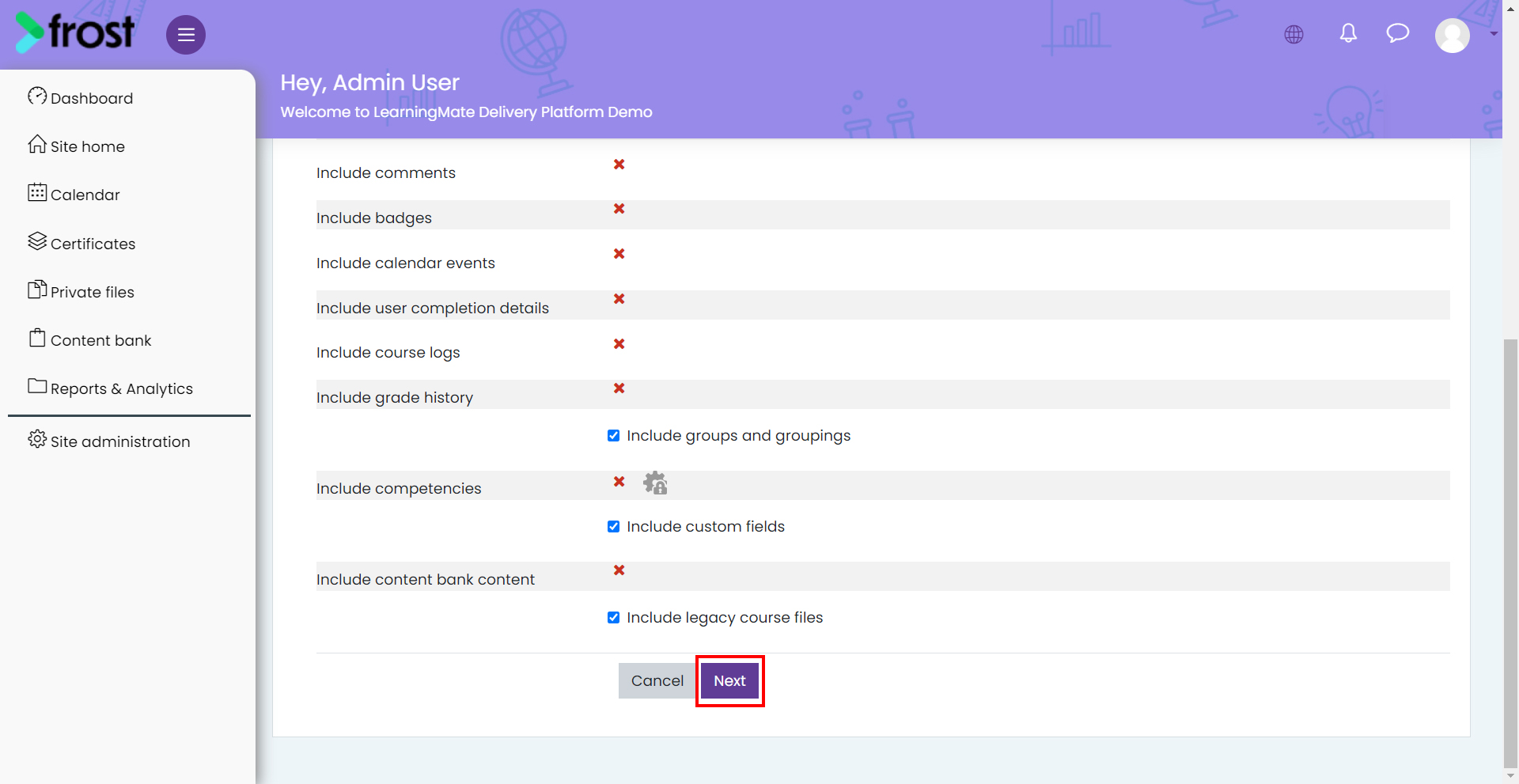

8. On the Settings page, check the appropriate options and click Next.

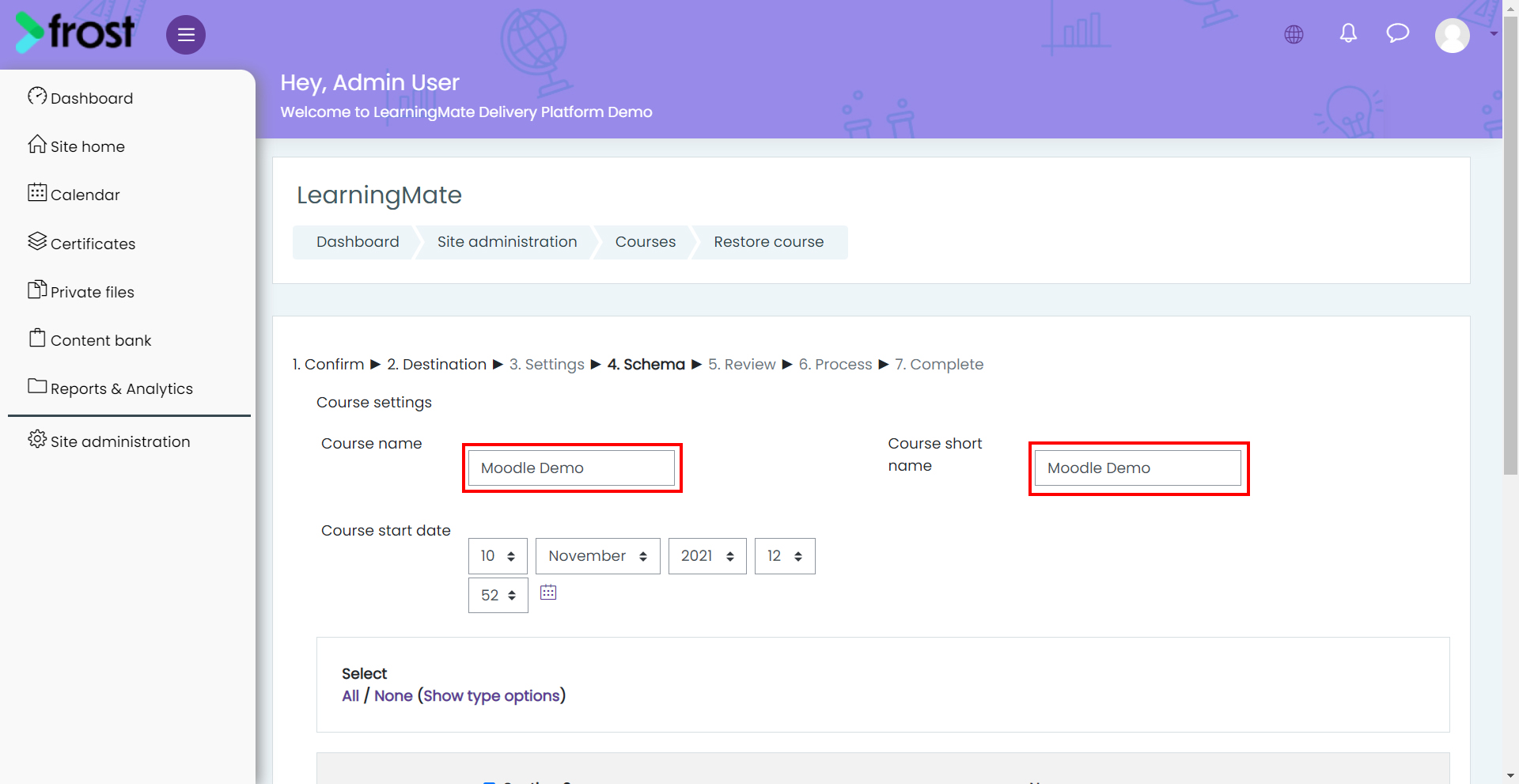

9. On the Schema page, enter the Course Name and Course Short Name.

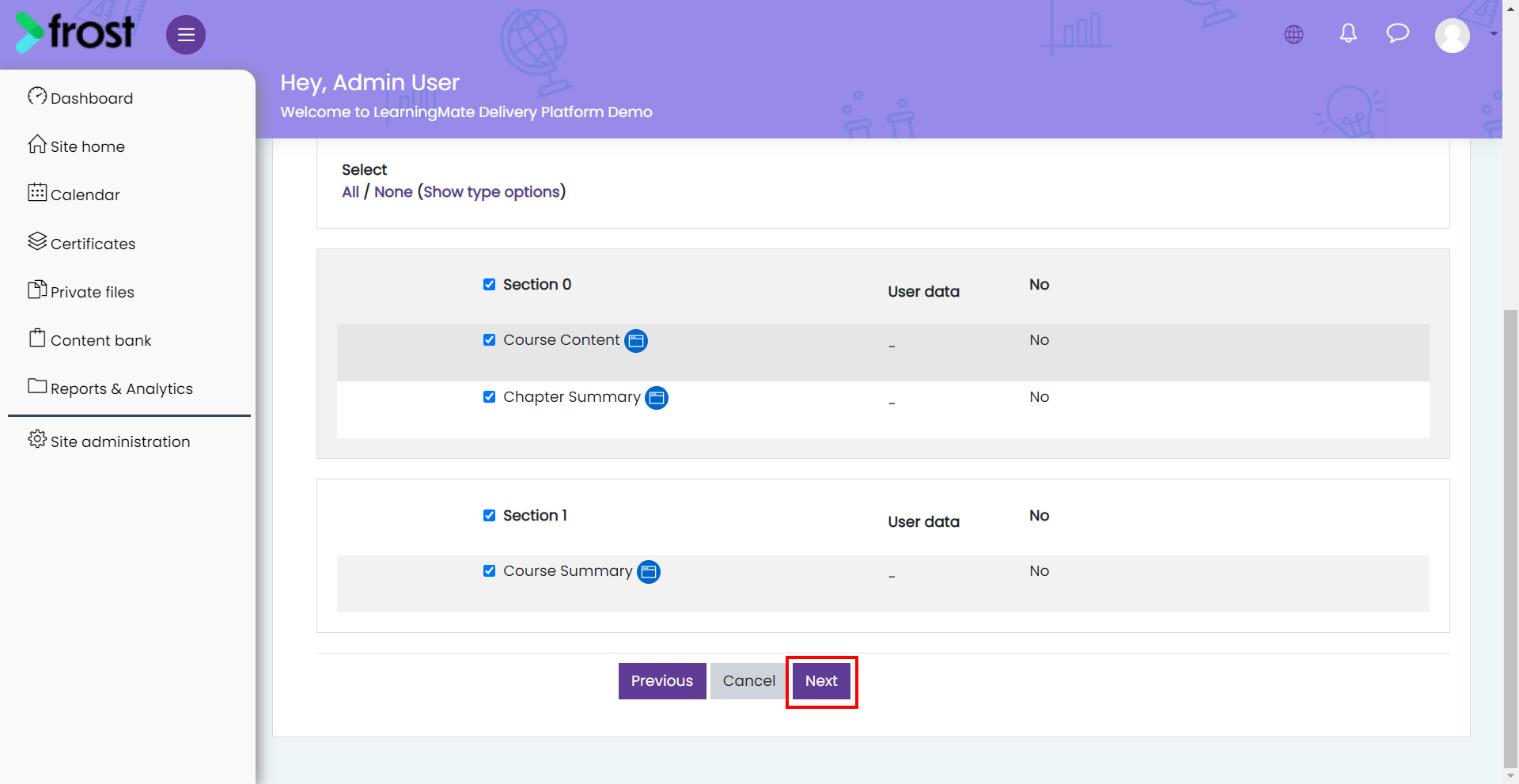

10. Check the nodes to be uploaded and click Next.

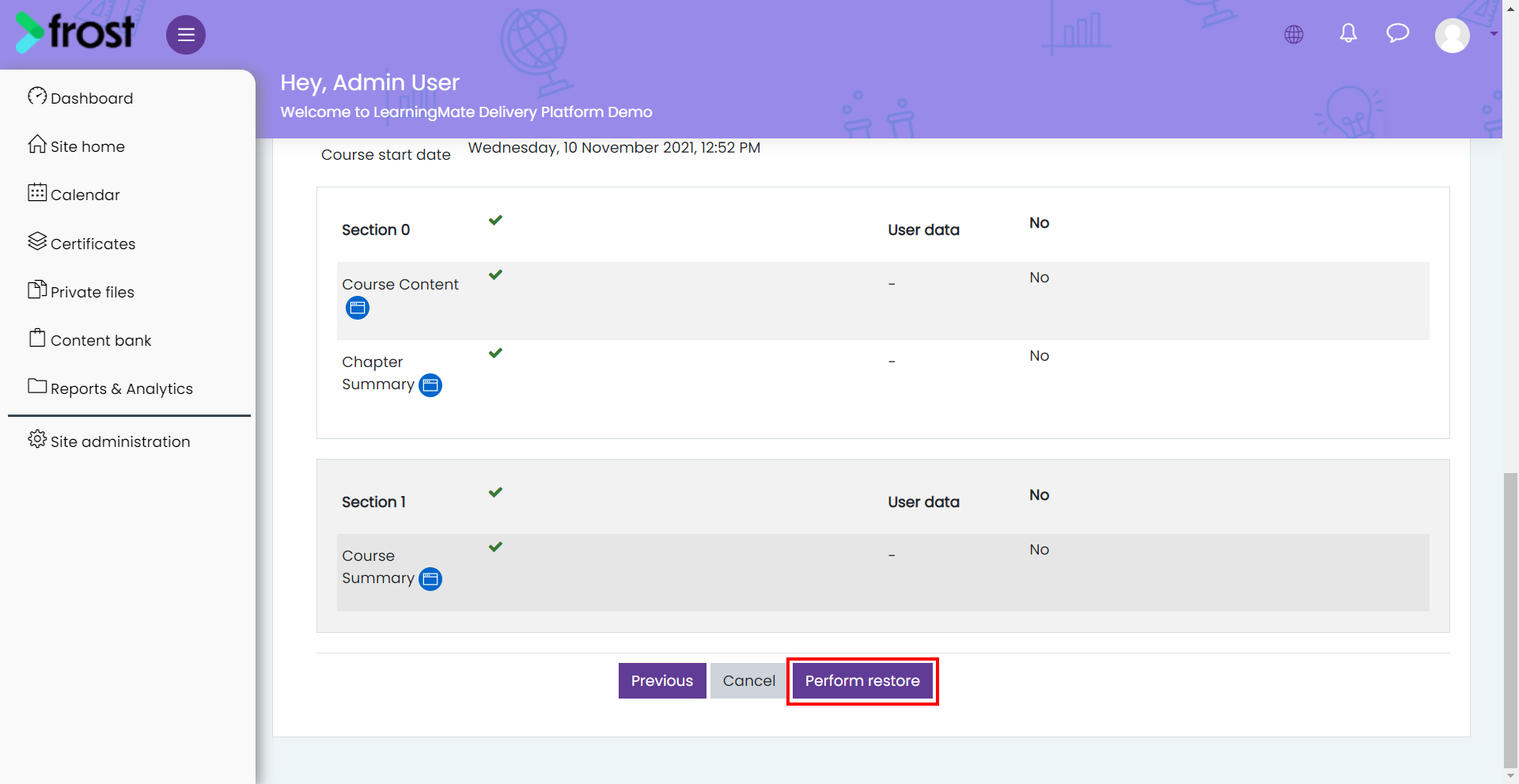

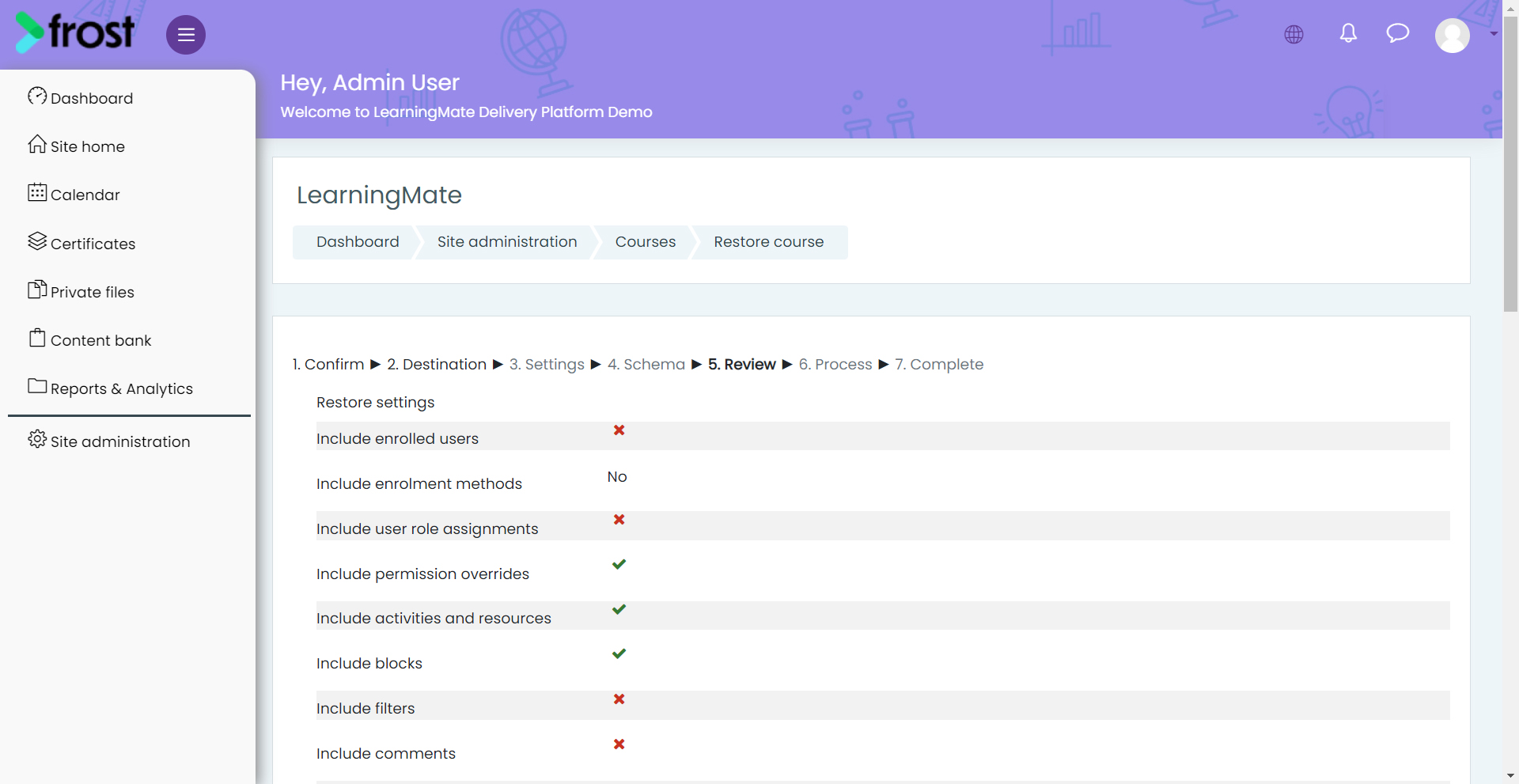

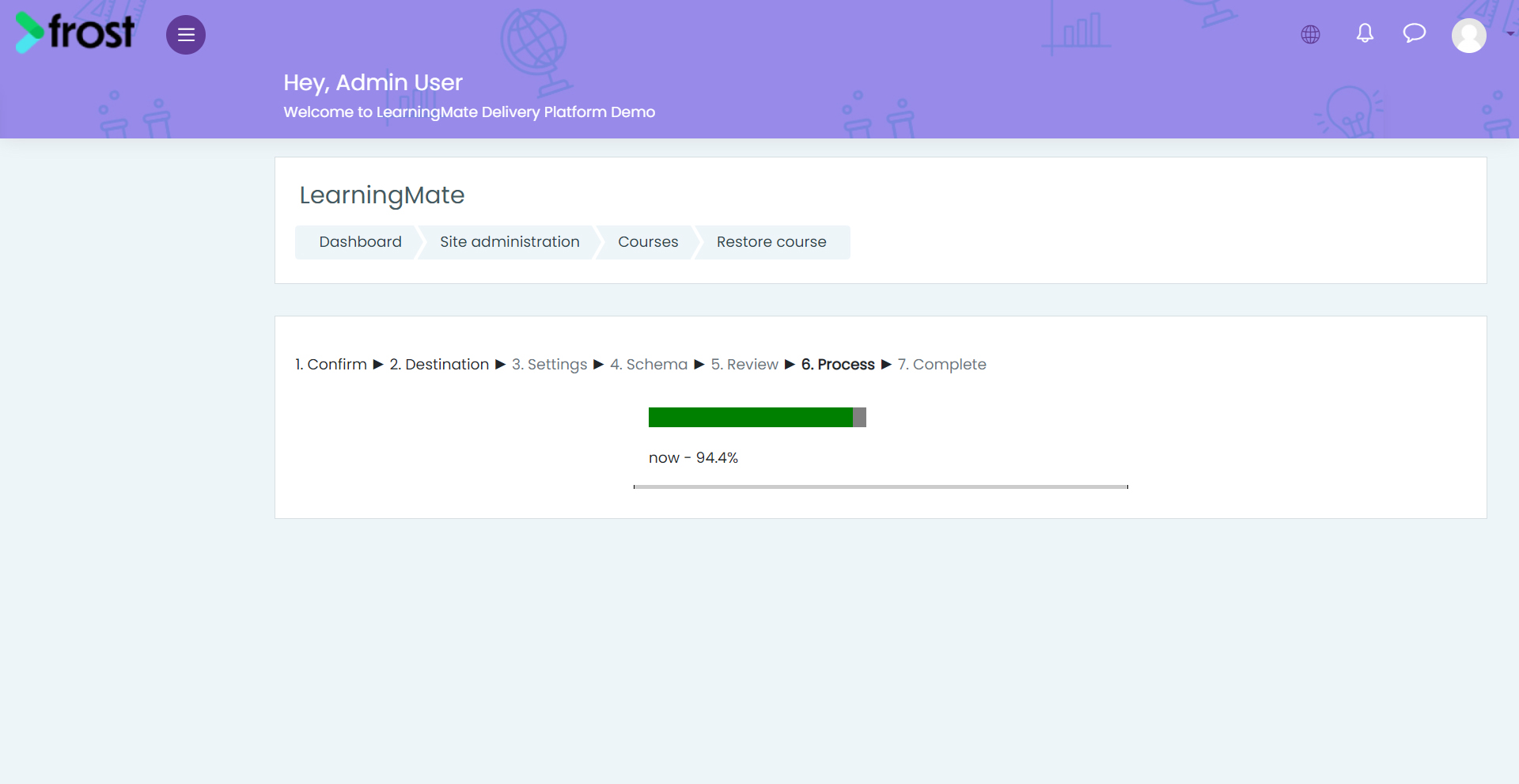

11. On the Review page, click Perform Restore.

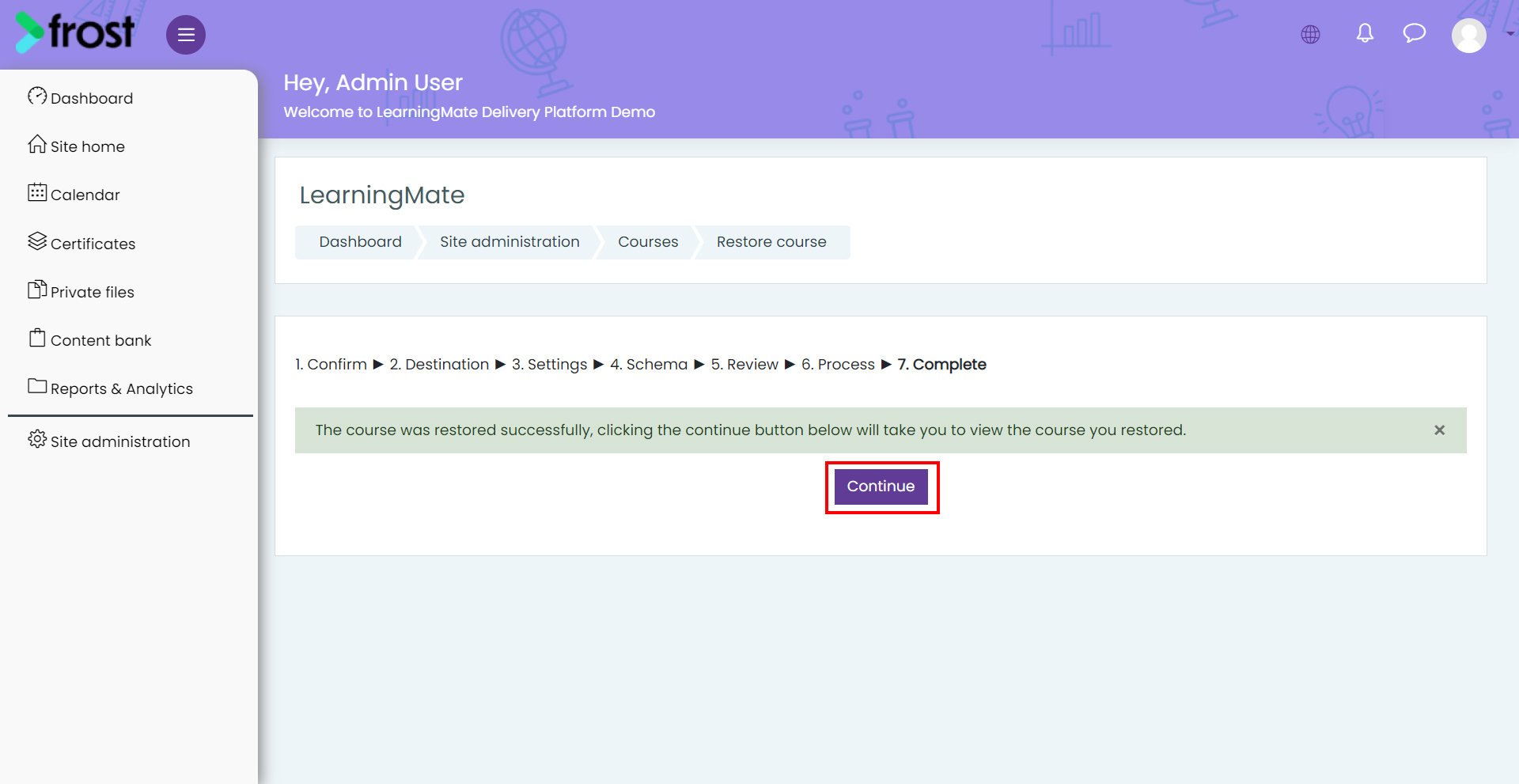

12. Click Continue.

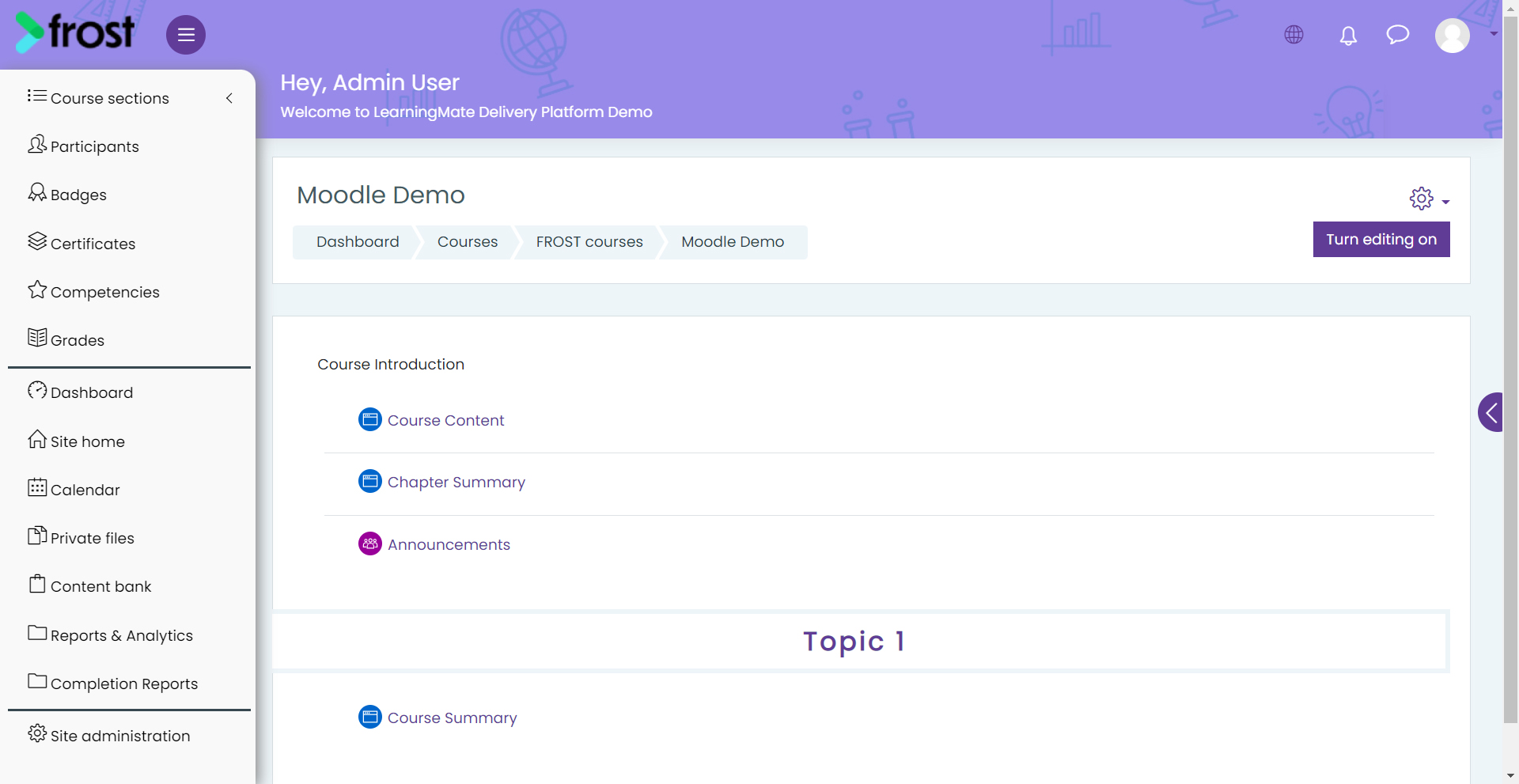

13. On successful upload, the course TOC can be viewed.

Step 7: LTI Setup in Moodle

1.
2.
3.
4.
5.
6.
7.

Previous Next

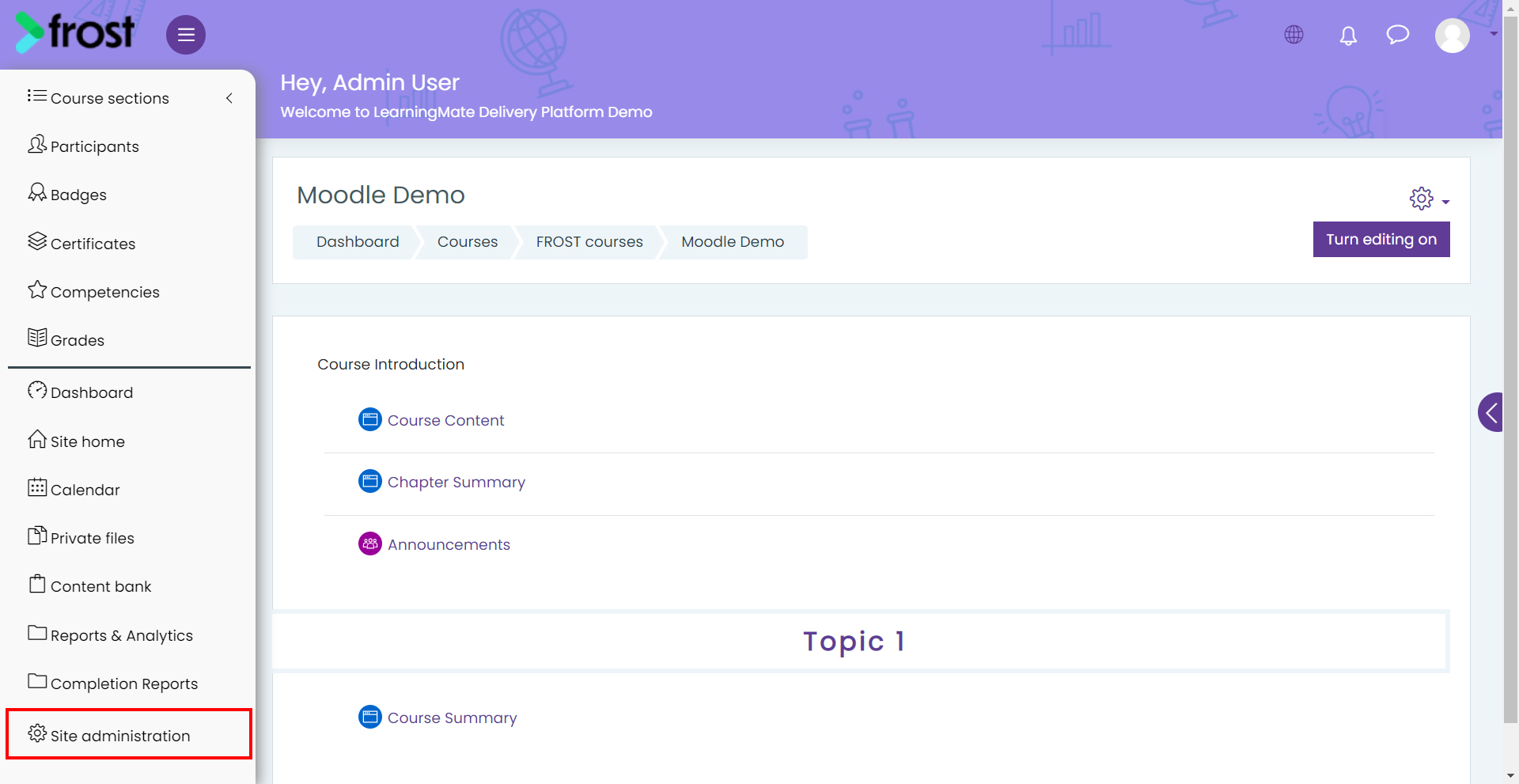

1. Navigate to Site administration.

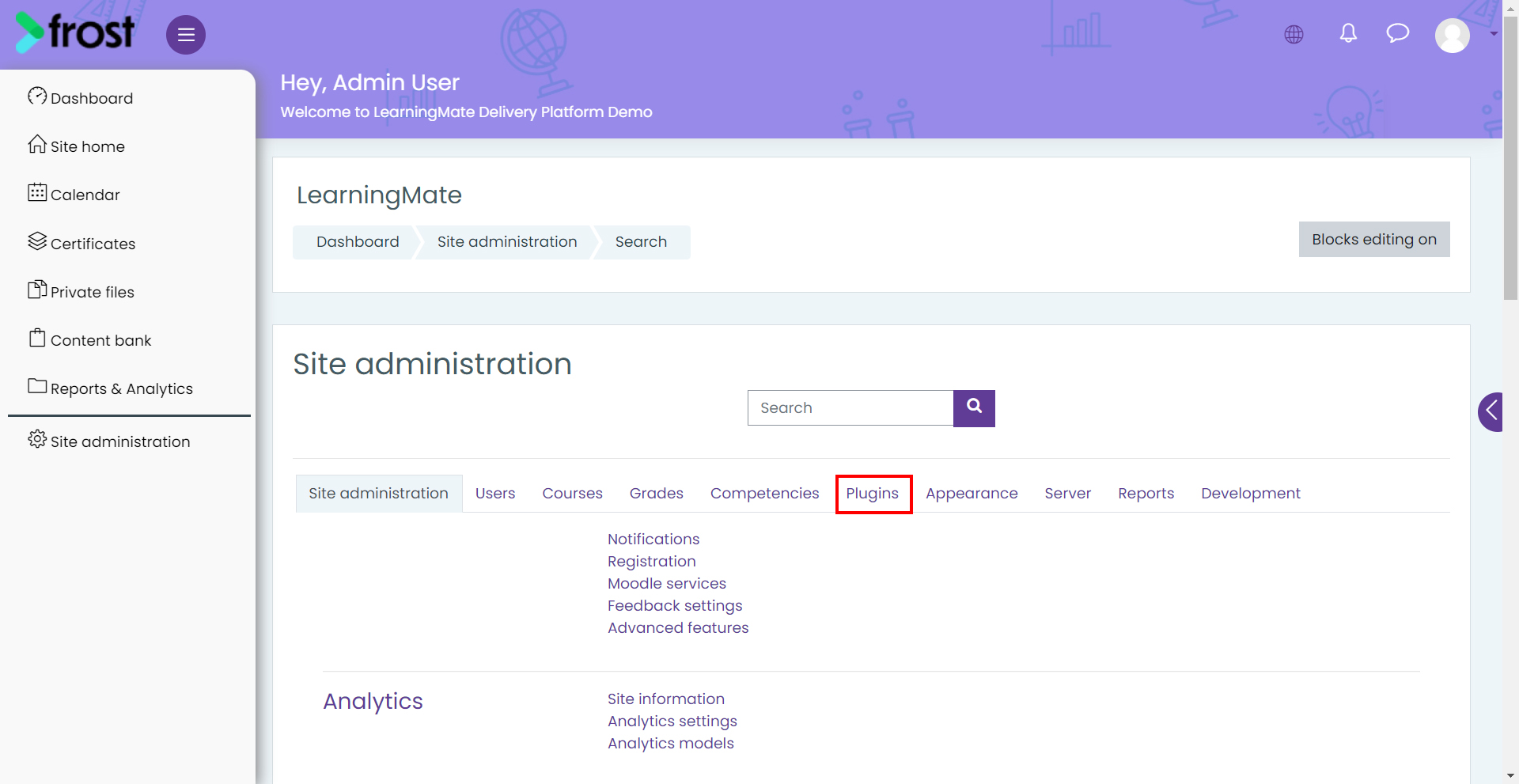

2. Select Plugins.

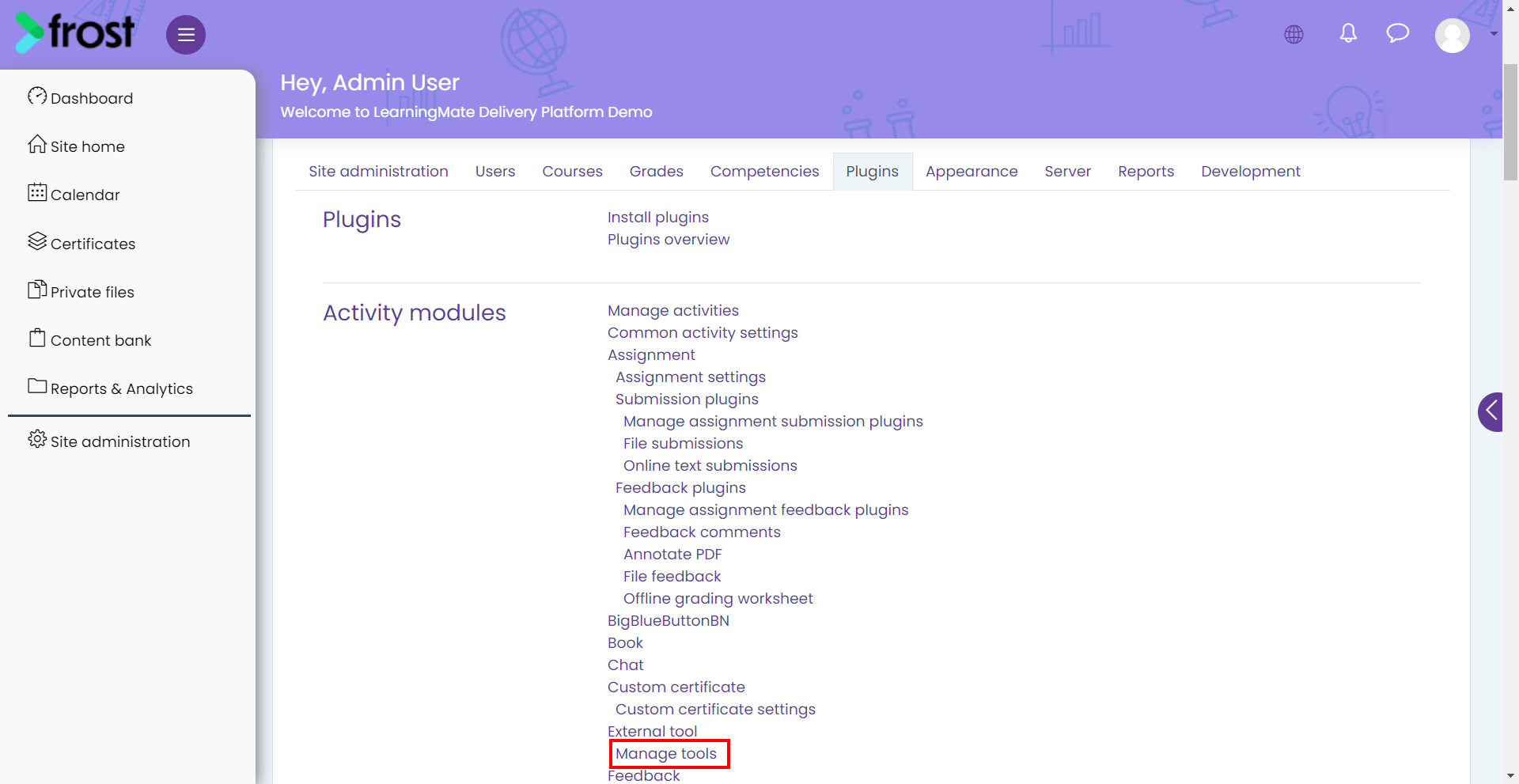

3. Under External tool, select Manage tools.

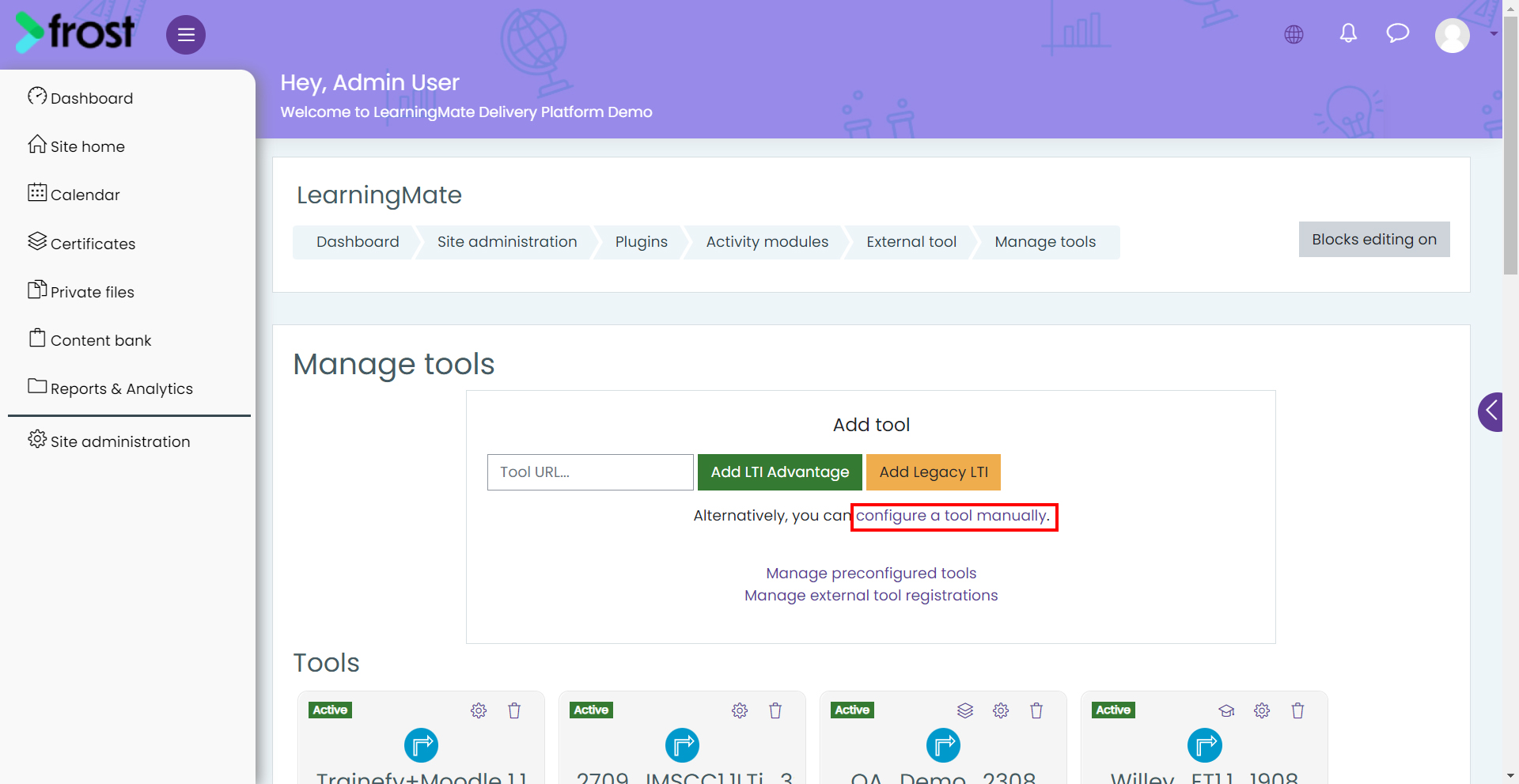

4. Select configure a tool manually.

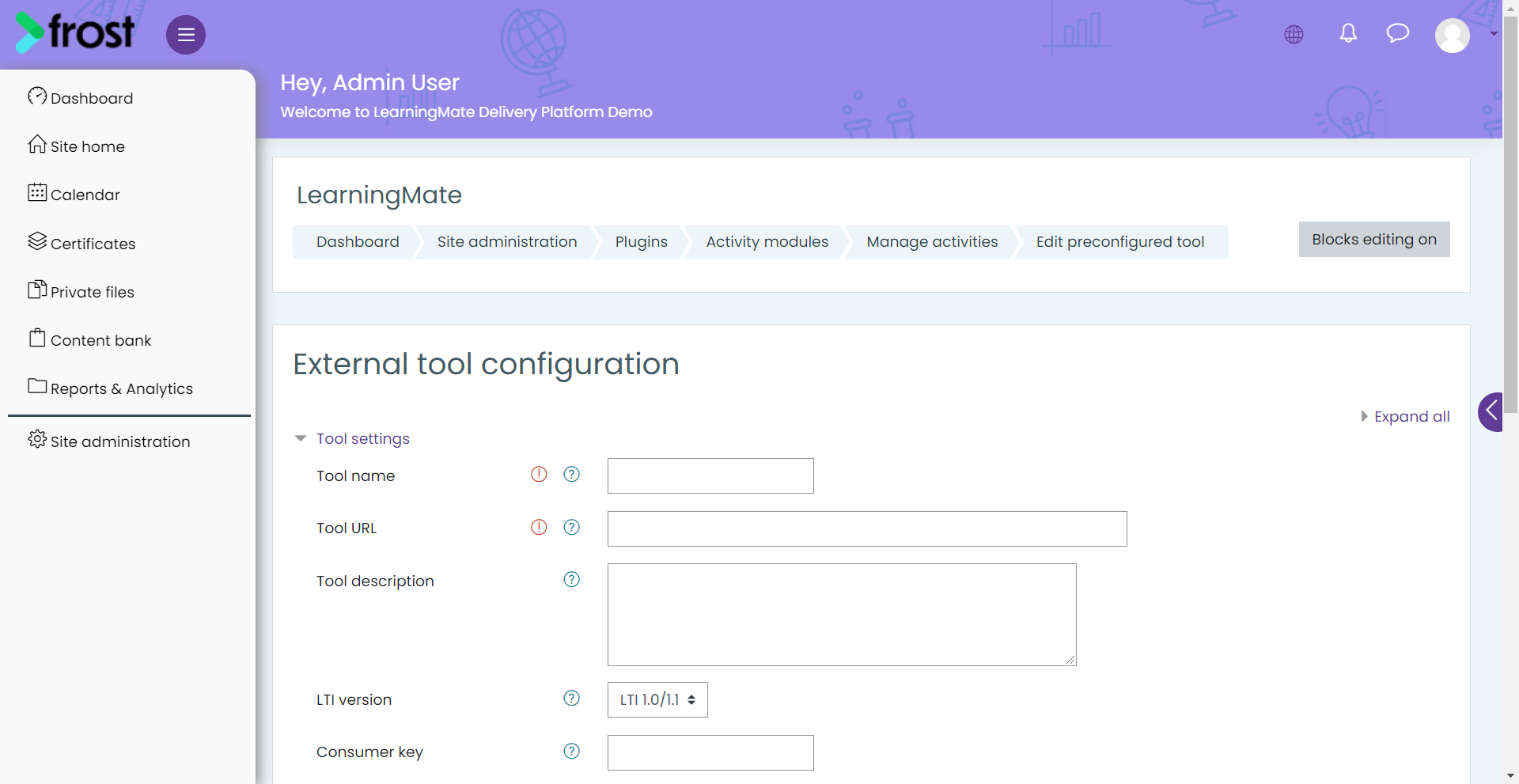

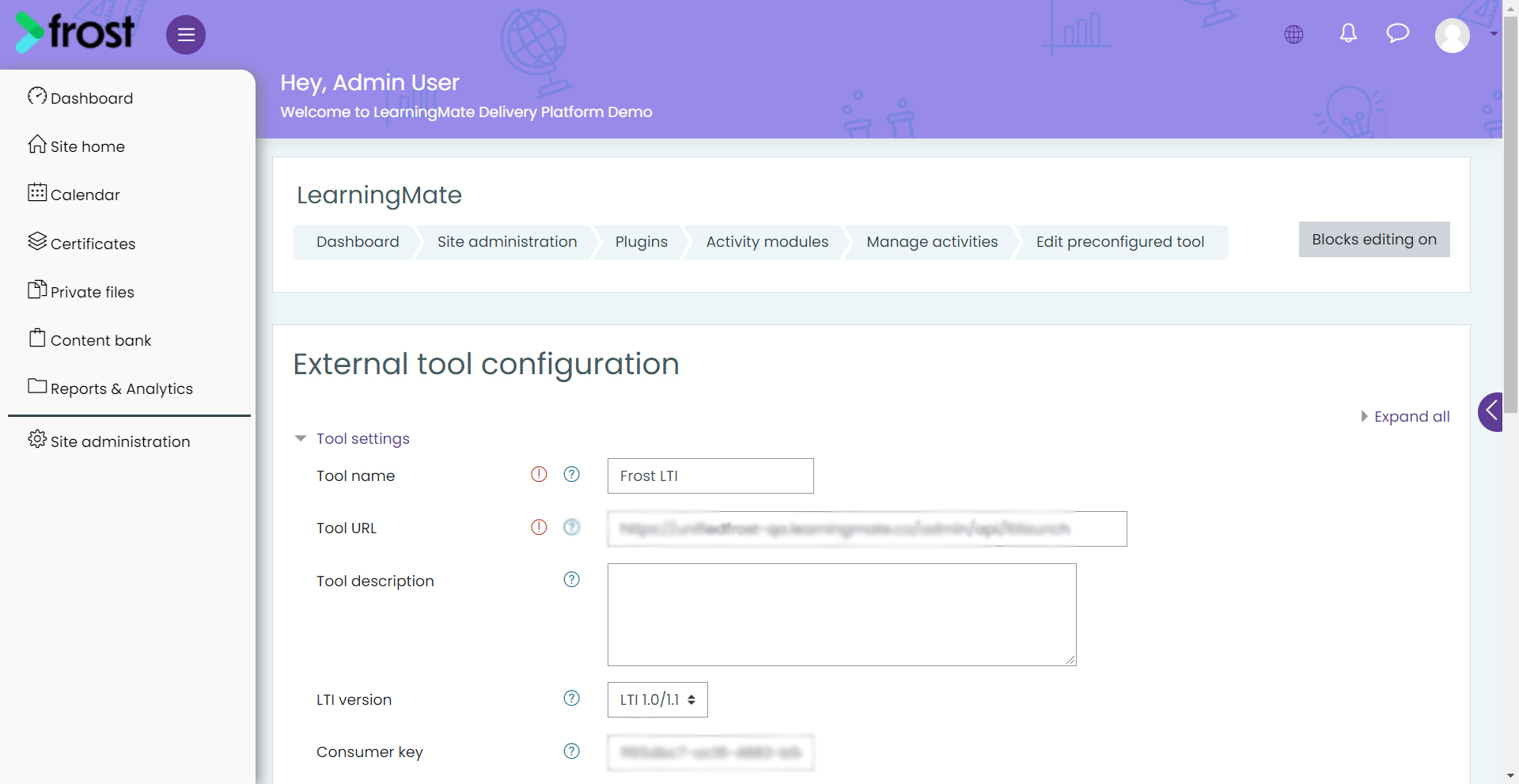

5. On the External tool configuration page, provide the following information:
   • Add Tool Name
   • Tool Url: – Copy LAUNCH URL from LTI Platform table in admin
   • LTI Version: – LTI 1.0/1.1
   • Consumer Key: – Copy CONSUMER KEY from LTI Platform table in admin
   • Shared Secret: – Copy SHARED SECRET from LTI Platform table in admin

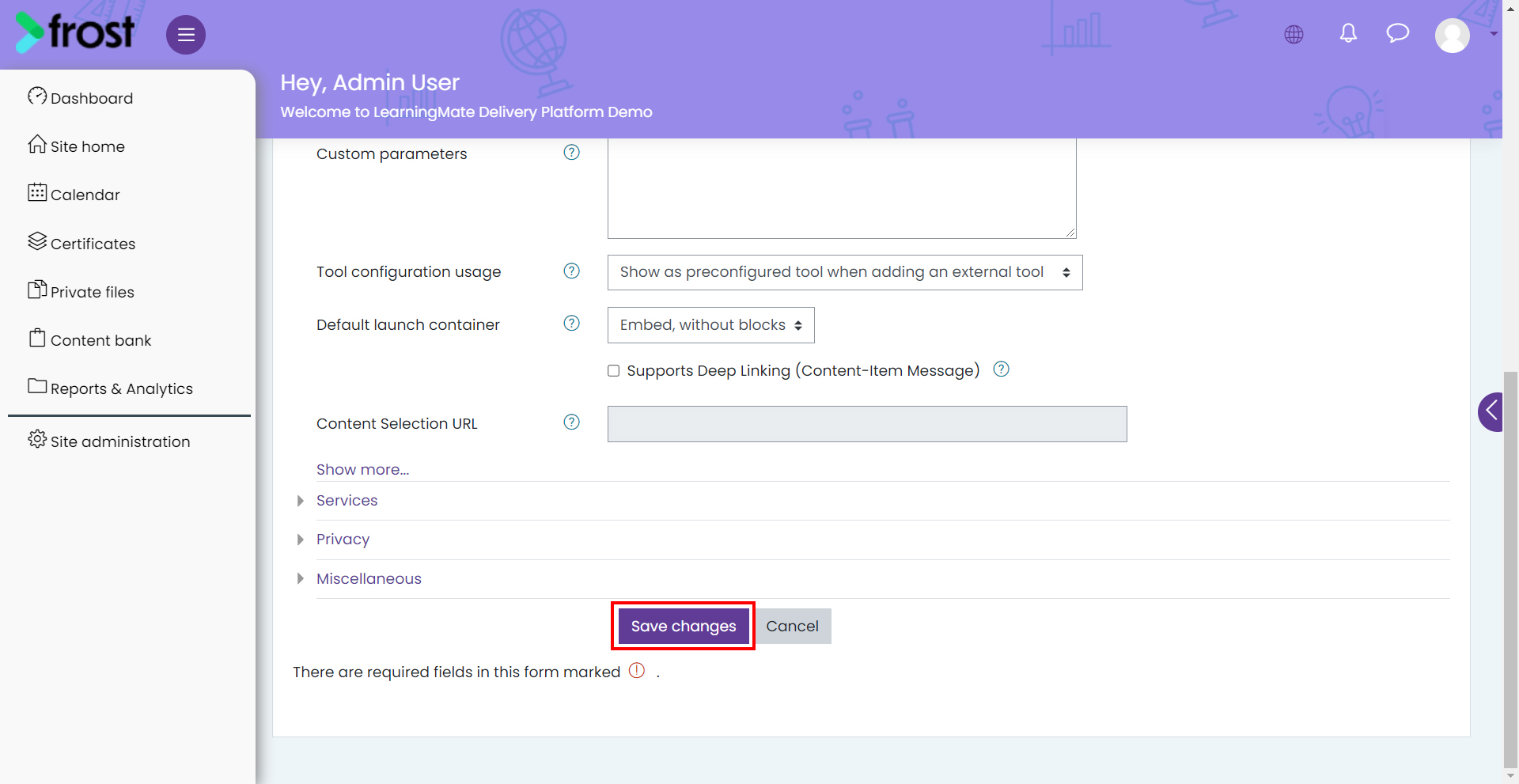

6. Click Save Changes.
7.

Note: On successful configuration, users can access the content of the Imported Course on Moodle LMS.
