LTI

Configuring LTI for SSO Login

  • Updated

How to Configure the Tenant to Authenticate SSO via LTI 1.1

LTI Authentication allows third-party application users to access the Frost platform using LTI 1.1. A Superadmin user has the authority to enable the tenant to authenticate SSO via LTI while an admin user can successfully configure it. Once the LTI Authentication is enabled and configured, a user should be able to access the application based on the assigned roles and platforms.









To configure the tenant to authenticate SSO via LTI:

Step 1: Enabling LTI SSO Authentication

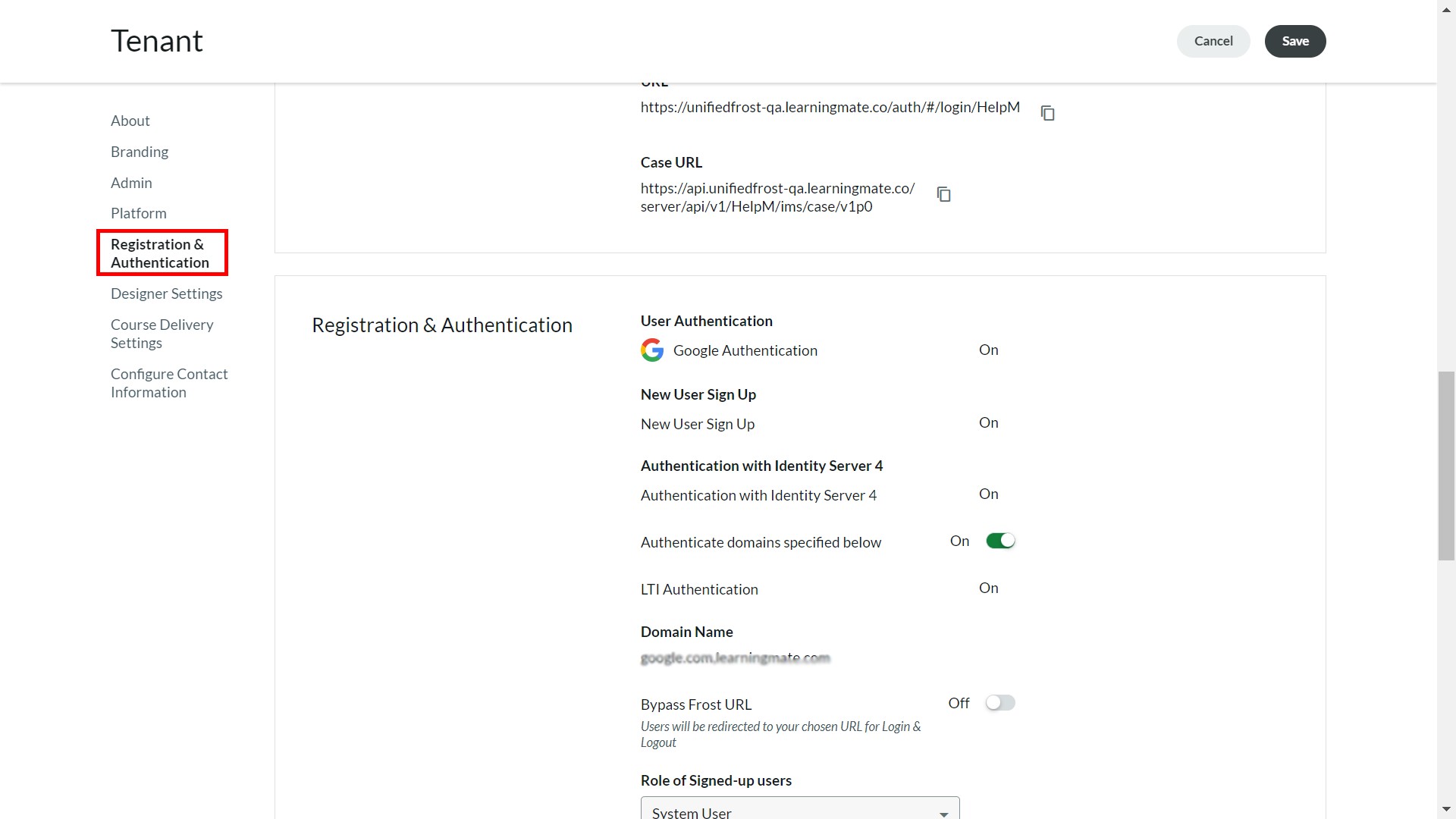

  1. From the Tenant Configuration page, navigate to the Registration & Authentication section.

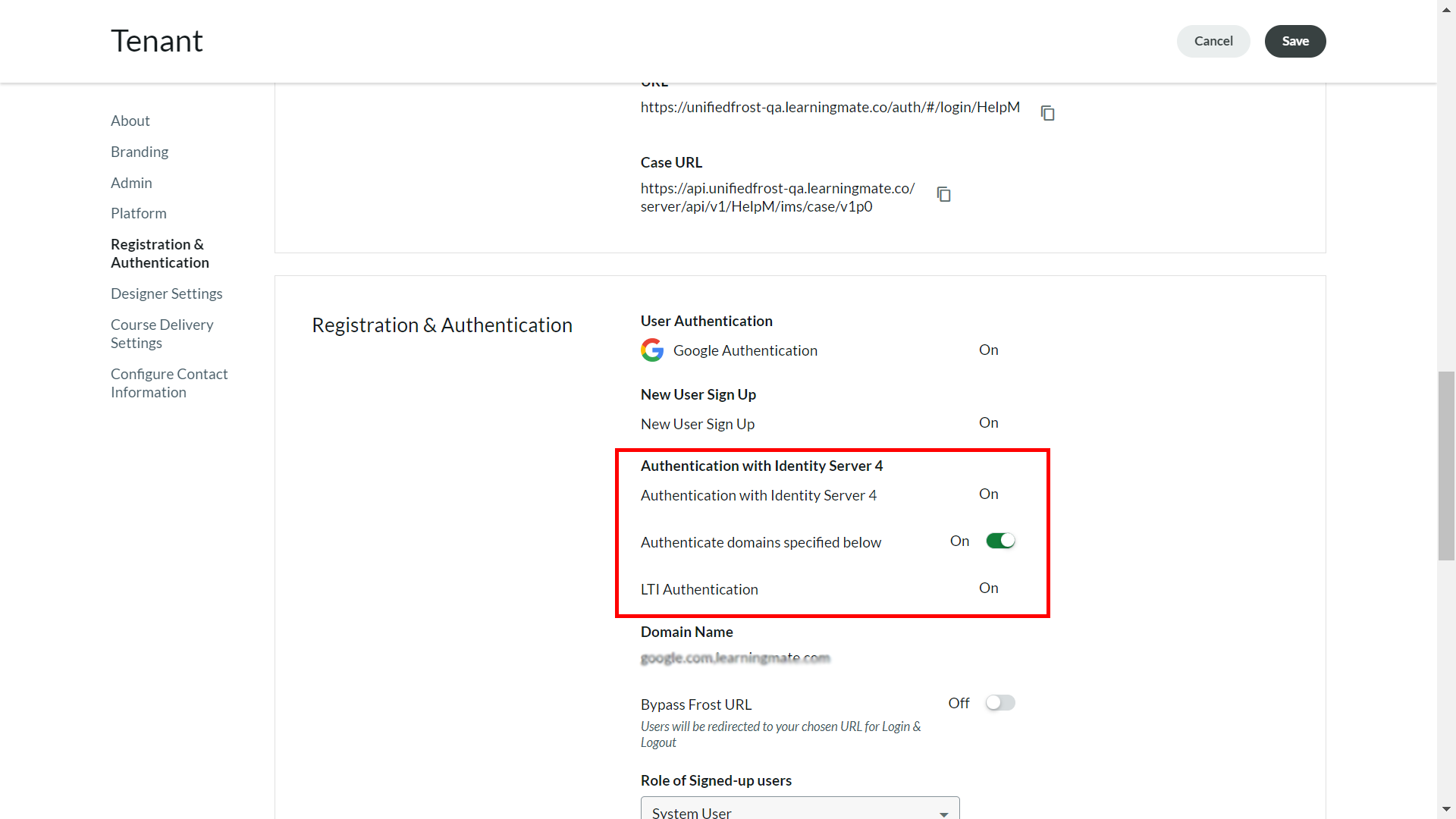

  2. To enable LTI Authentication, toggle the switch from Off to On.

Note: Only Superadmin can view and enable the LTI Authentication feature. A Super Admin is a user that has complete access to the system. The super admin user access is with LearningMate only. To make any super admin level configurations for the tenant, kindly raise a Zendesk Request or contact the Account SPOC.

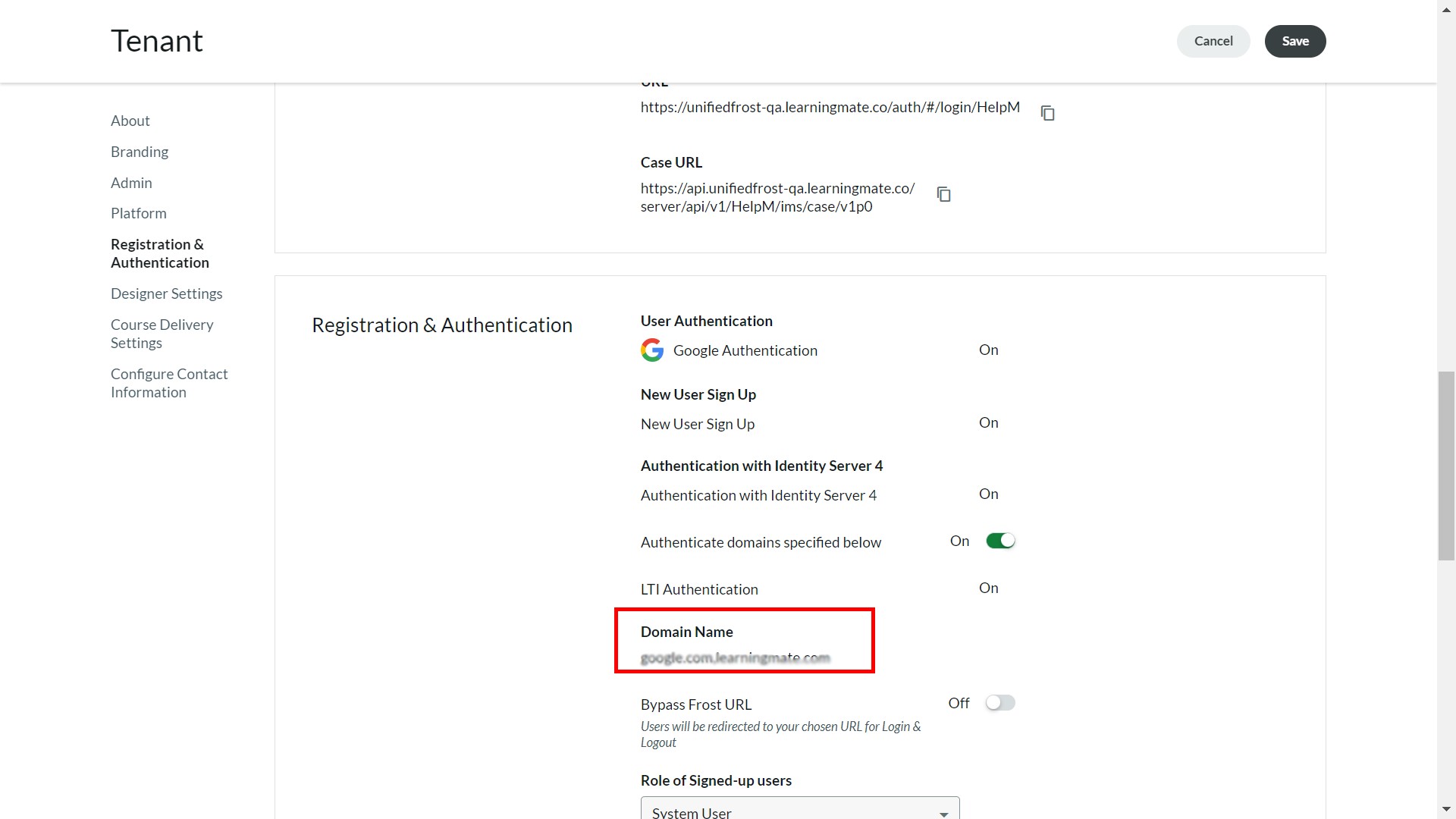

  1. In the Domain Name field, enter the domains to be authorized for login.

Note: These domains will be given the authorization to log in using LTI authentication. This will allow users coming from third-party applications to log in to the tenant.

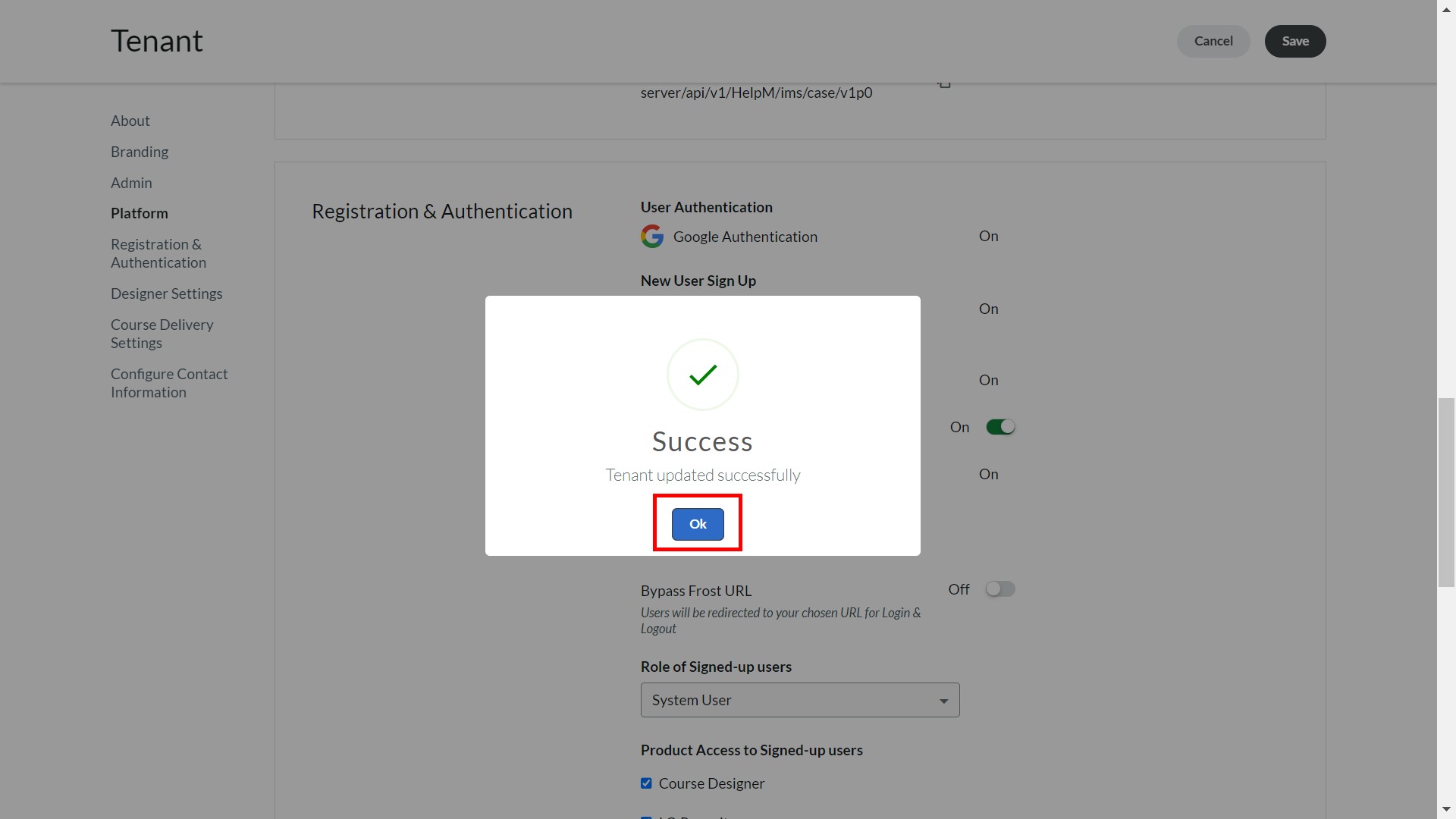

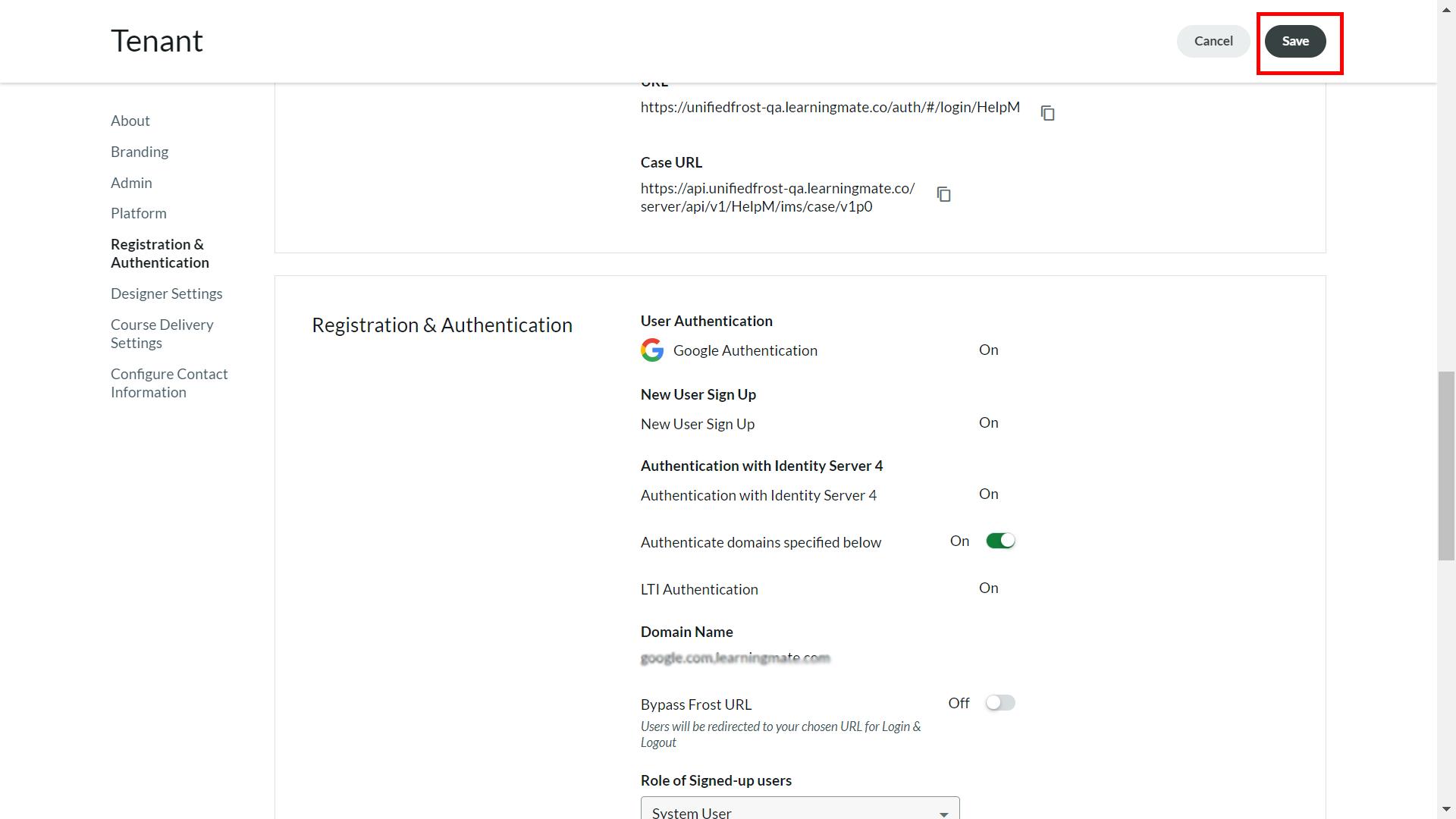

  1. Click Save to update the tenant configuration.



Step 2: Creating LTI Configuration

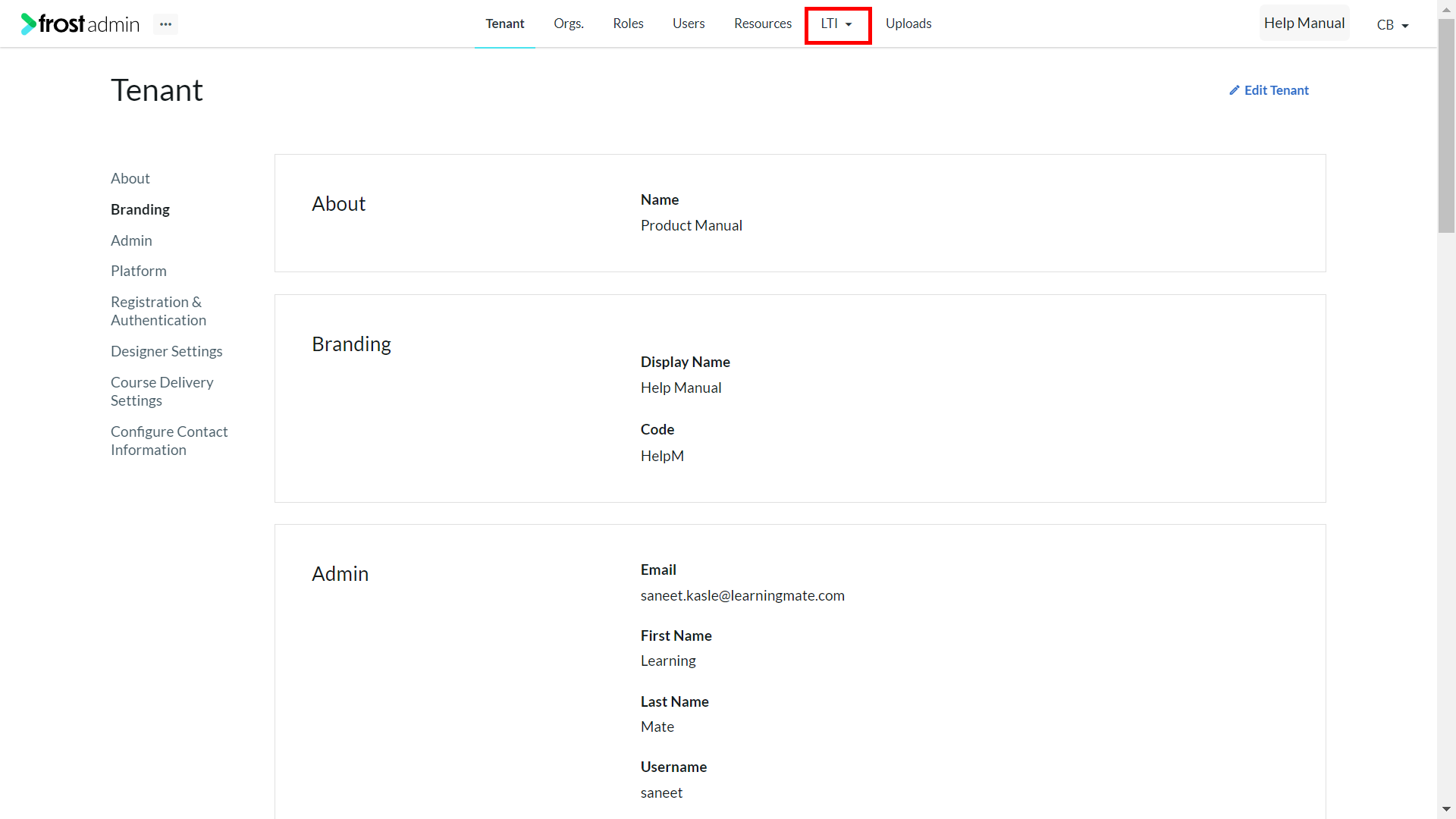

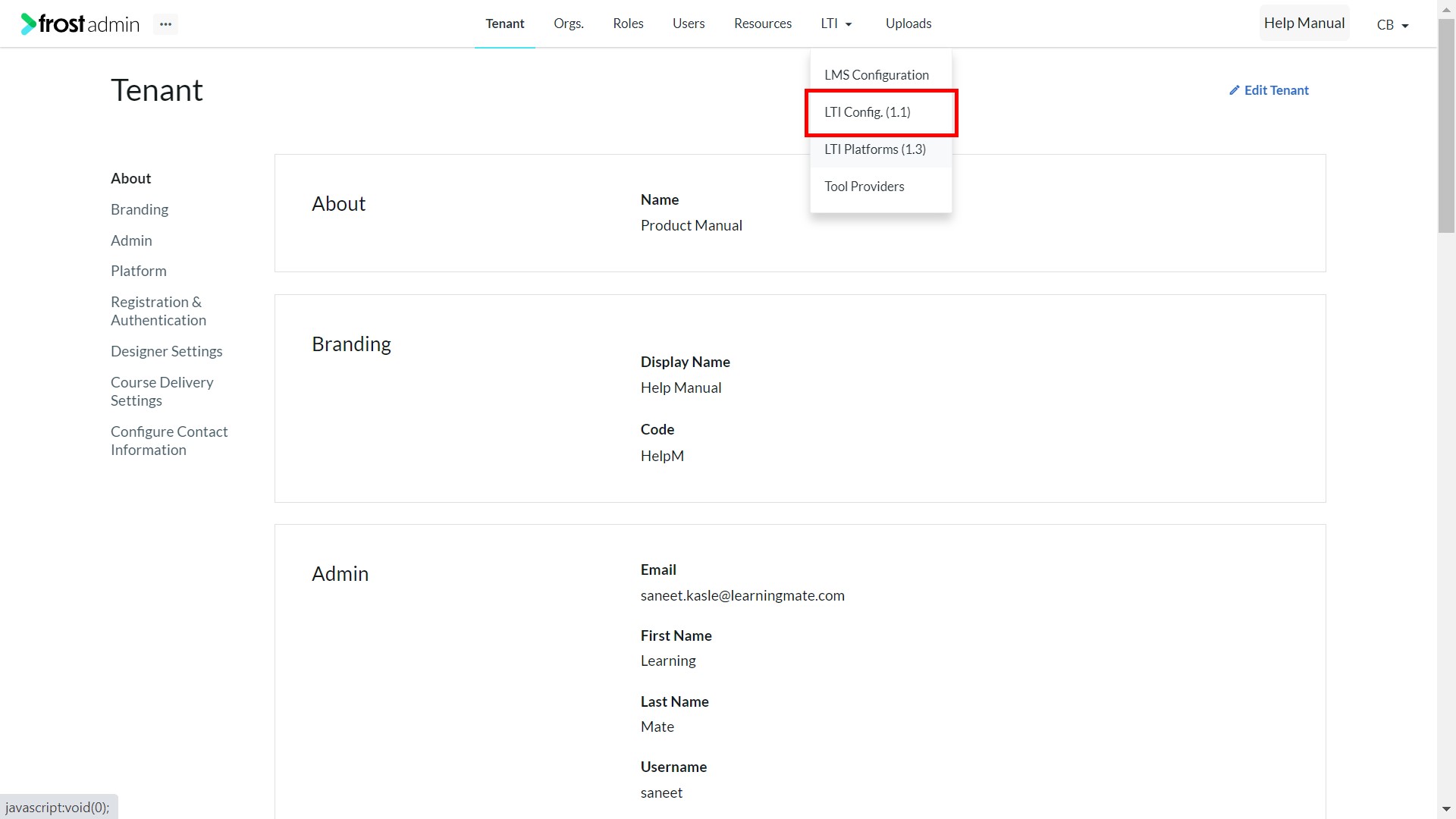

  1. Navigate to the Admin platform, click the LTI drop-down and select LTI Config. (1.1).

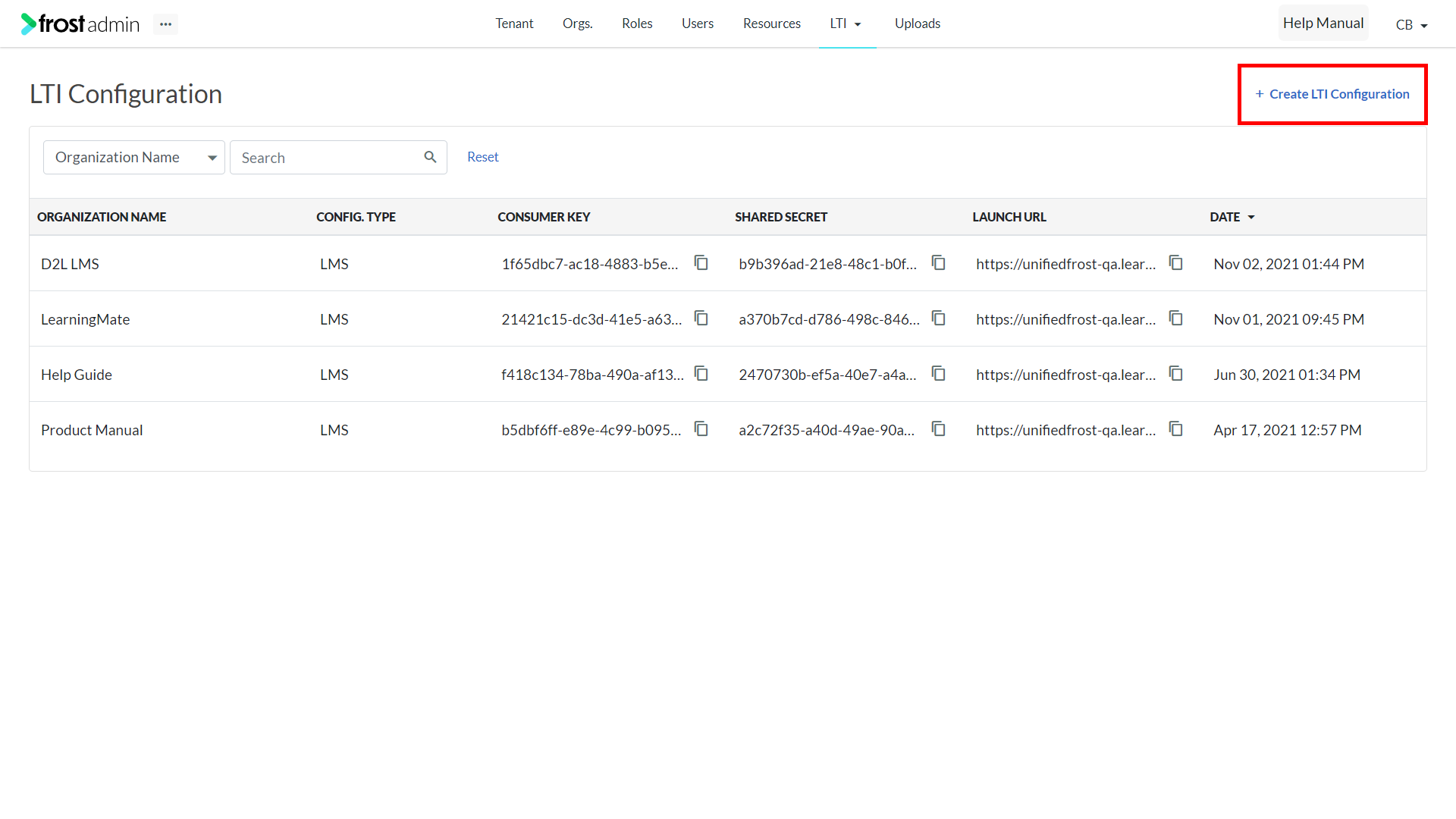

  2. Click Create LTI Configuration to open the Add LTI Configuration form.

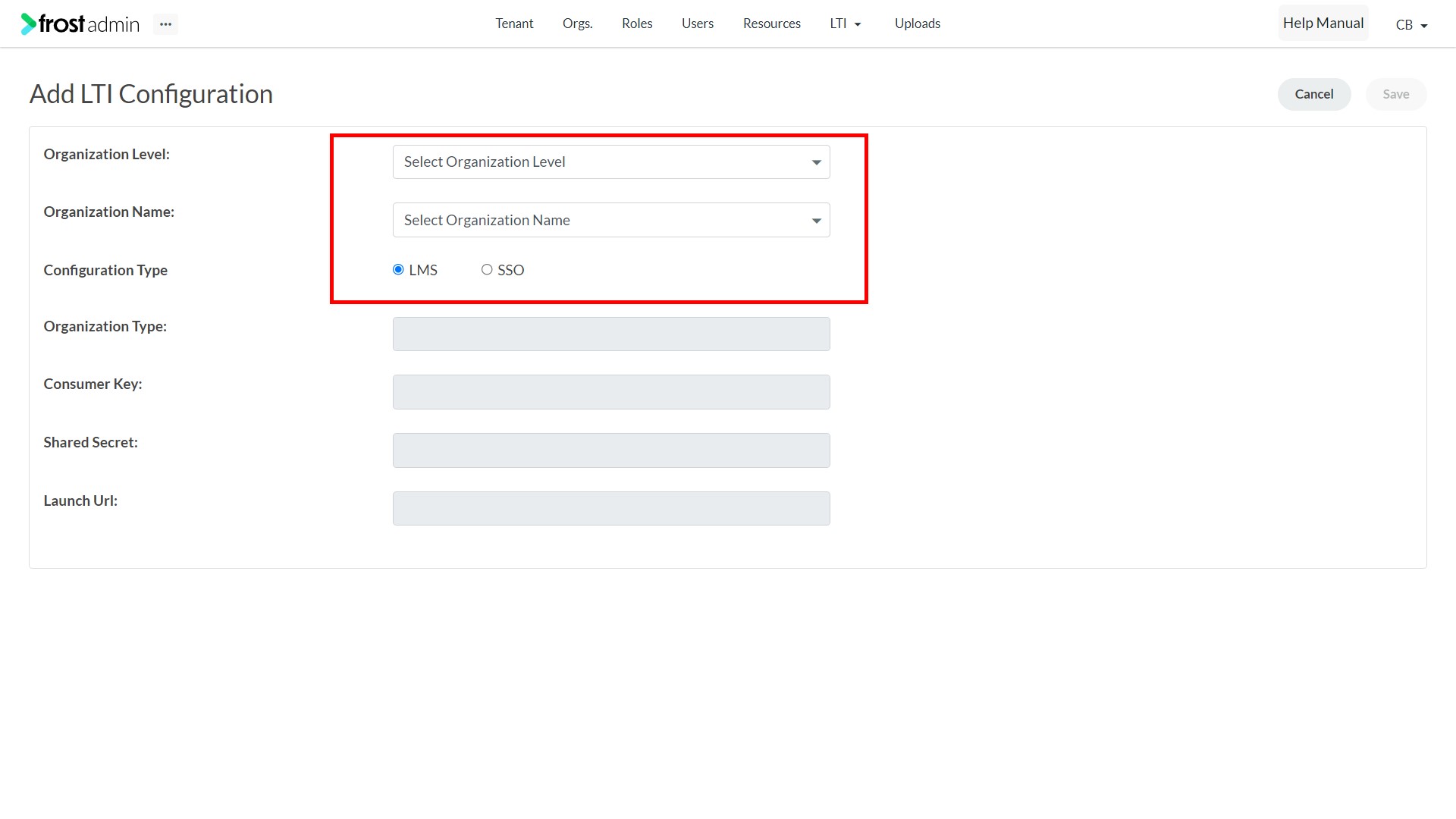

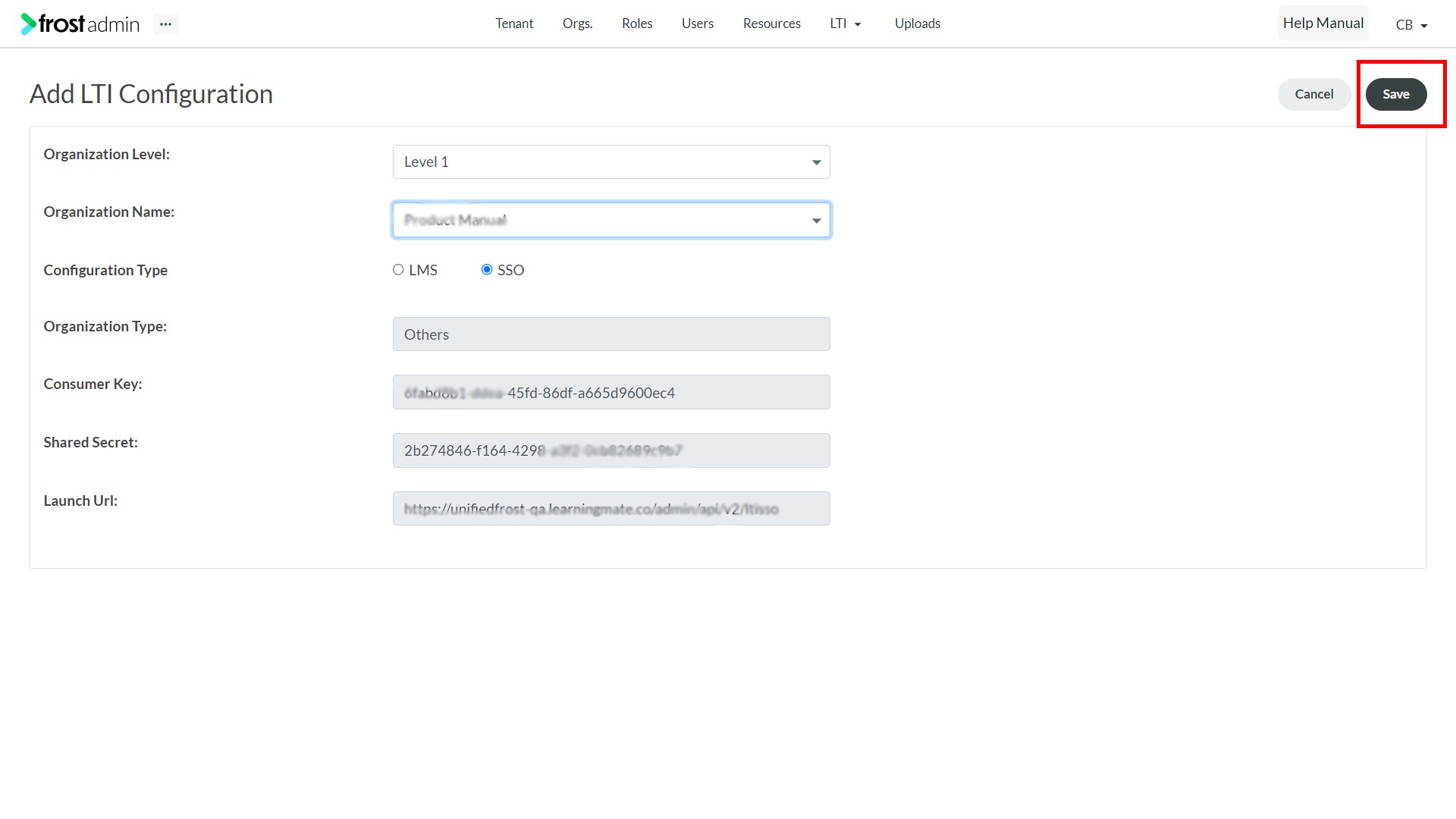

  3. Fill in the necessary details such as:
    • Organization Level – select the level of the organization
      • Level 1
      • Level 2
    • Organization Name – select an organization from the dropdown based on the level selected.
    • Configuration Type - select SSO

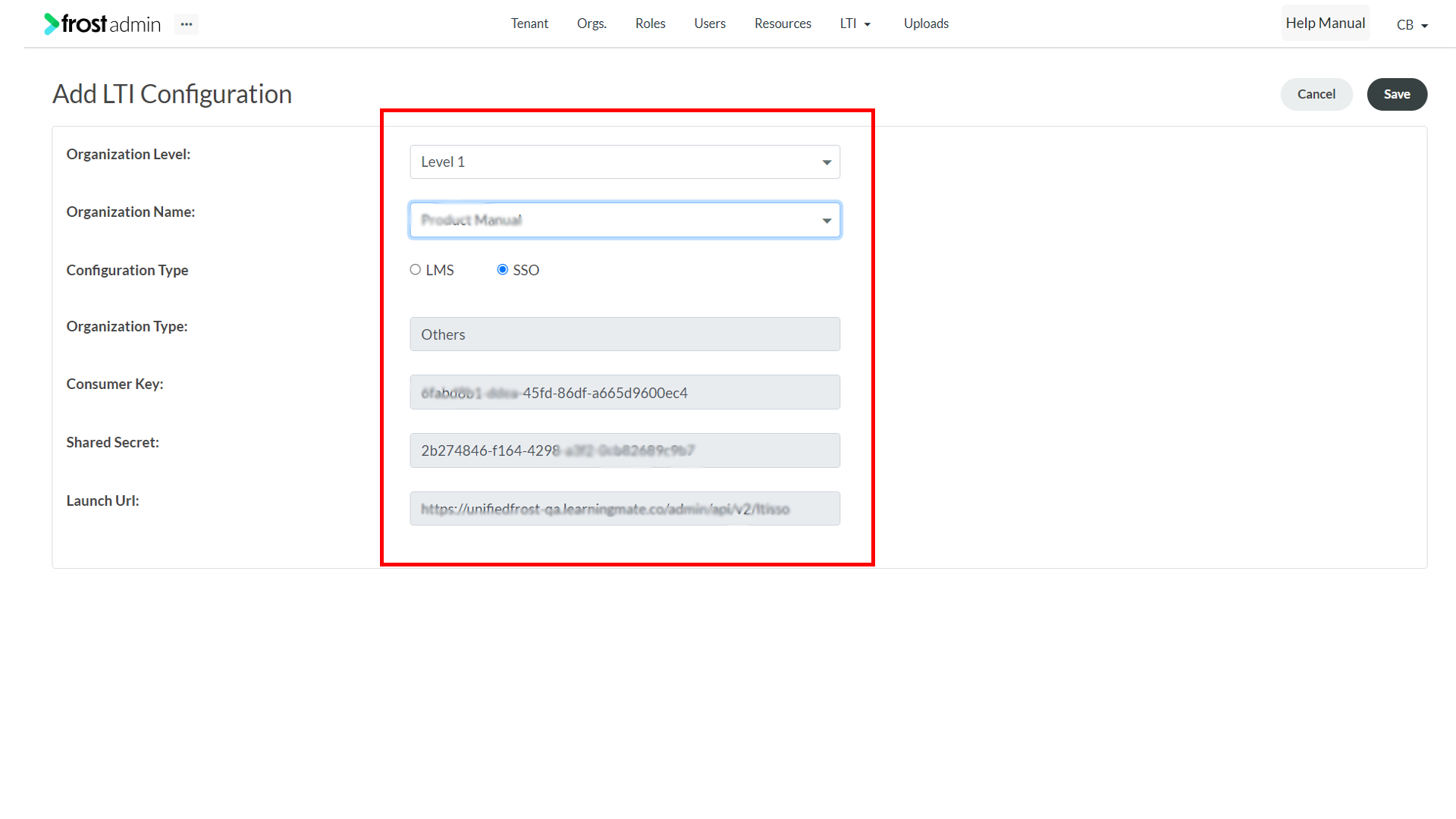

  4. Based on the data selected above, the following fields are generated automatically:
    • Organization Type
    • LMS Consumer Key
    • Shared Secret
    • Launch Url

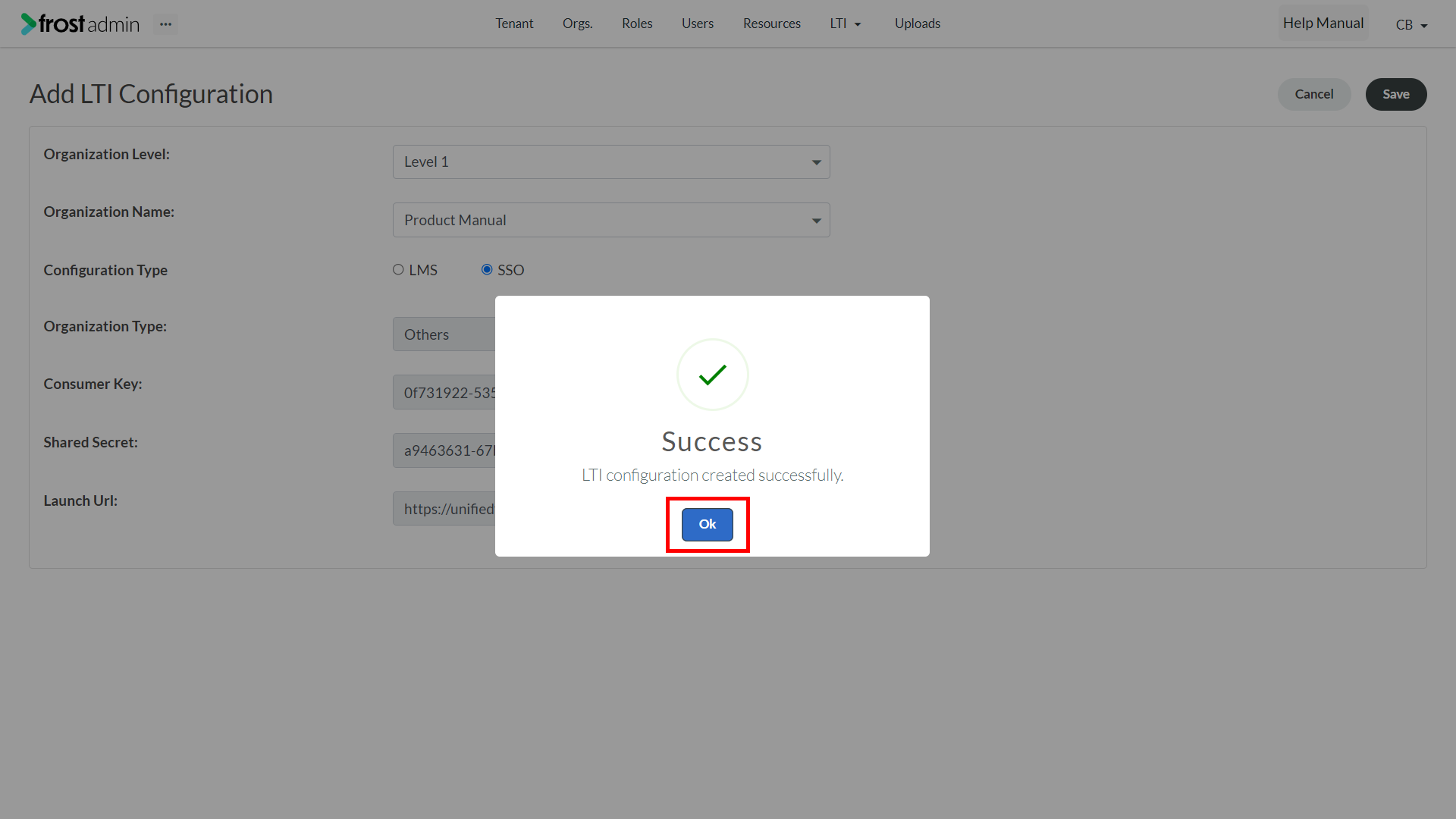

  5. Click Save to add the LTI Configuration to the system.
  6. Share the LMS Consumer‌ ‌Key,‌ ‌Shared‌ ‌Secret,‌ ‌and‌ Launch‌ ‌URL‌ ‌generated‌ by‌ ‌the‌ ‌Tenant‌ ‌with‌ ‌the‌ ‌third-party application‌.

Note: On successful configuration, the third-party application users can access Frost via LTI Authentication.
