Configuring LTI 1.3 on Canvas LMS

How to access and add the LOR objects in Canvas Course

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.

Previous Next

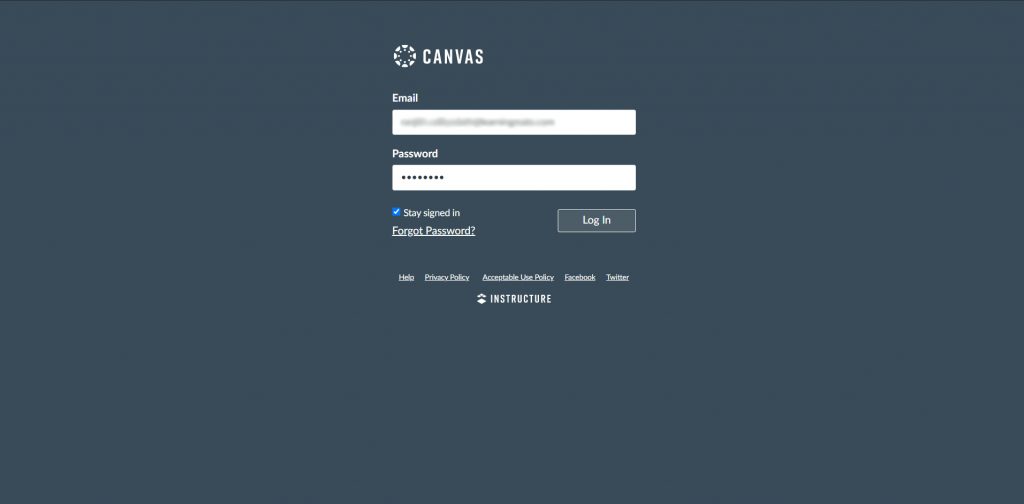

1. Login into Canvas as an admin user.
2. LTI Setup in Canvas
   • Navigate to Admin section
   • Select your account

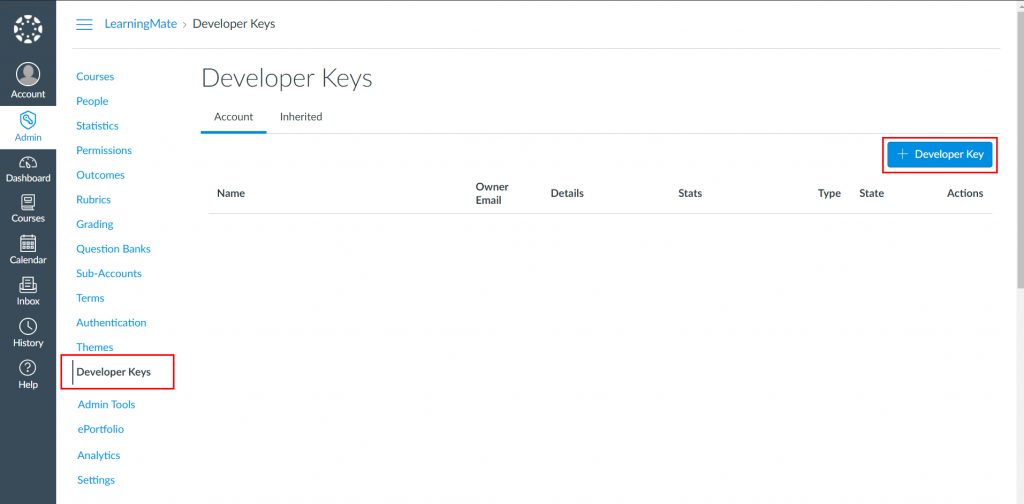

   • Select Developer Keys

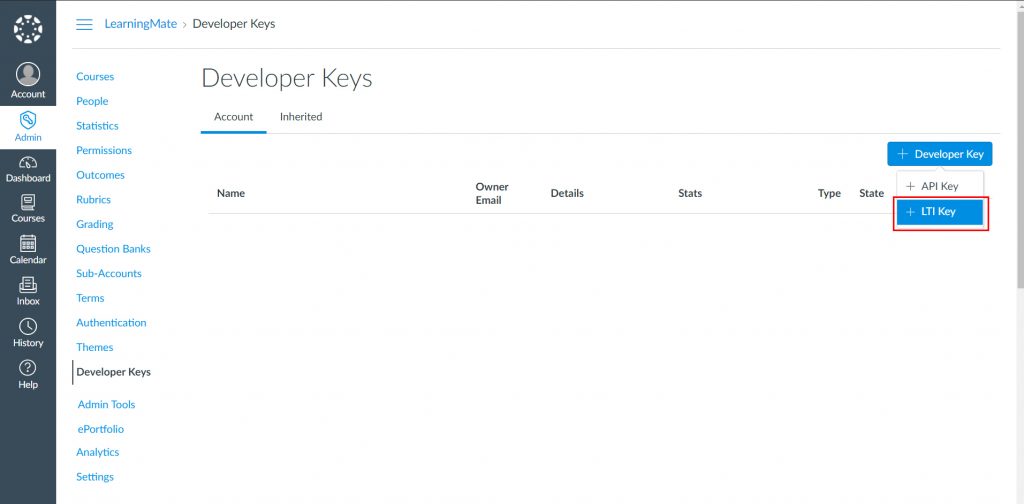

   • Under developer keys, create new LTI Key

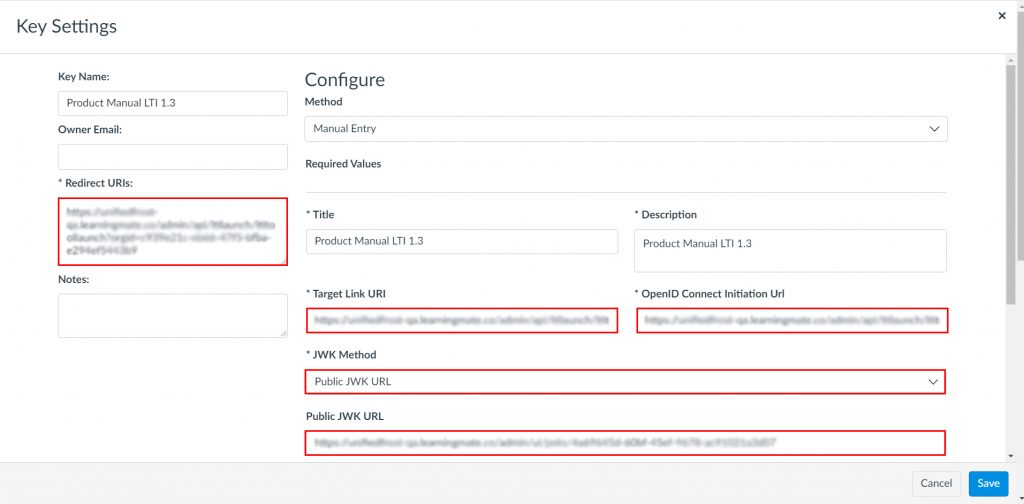

3. Fill out the following details to register LTI Tool in Canvas
   • Target Link URI: – Copy LAUNCH URL from LTI Platform table in admin
   • OpenID Connect Initiation Url: – Copy OPENID LOGIN URL from LTI Platform table in admin
   • Redirect URIs: – Copy LAUNCH URL from LTI Platform table in admin
   • JWK Method: – Select Public JWK URL
   • Public JWK URL: – Copy PLATFORM KEYSET URL from LTI Platform table in admin

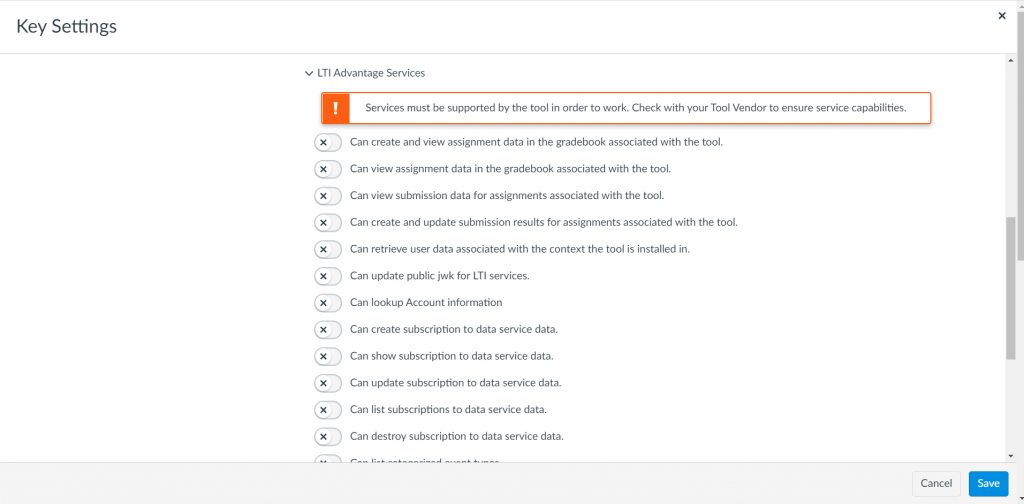

   • LTI Advantage Services:
     • Select All Options

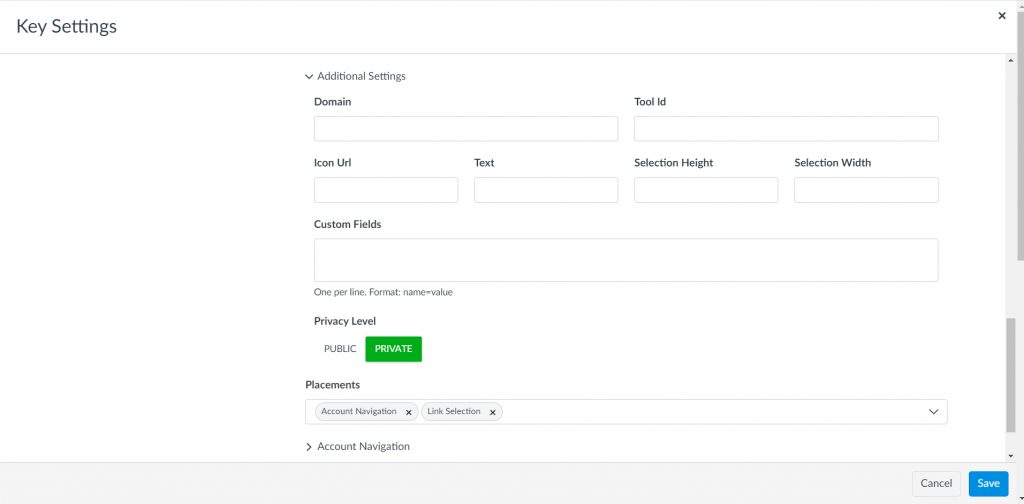

   • Additional Settings:
     • Icon URL: – Copy LAUNCH URL from LTI Platform table in admin
     • Text: – Title

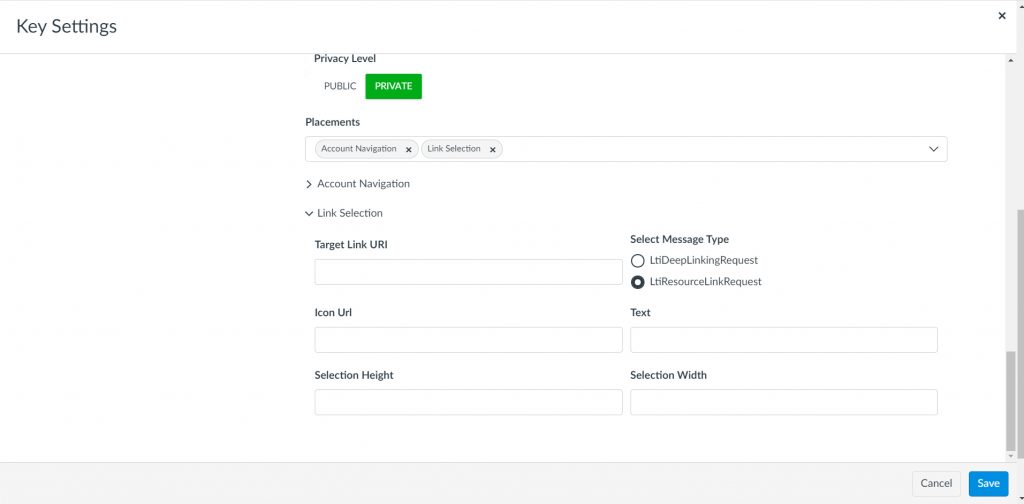

   • Add Link Selection in Placements

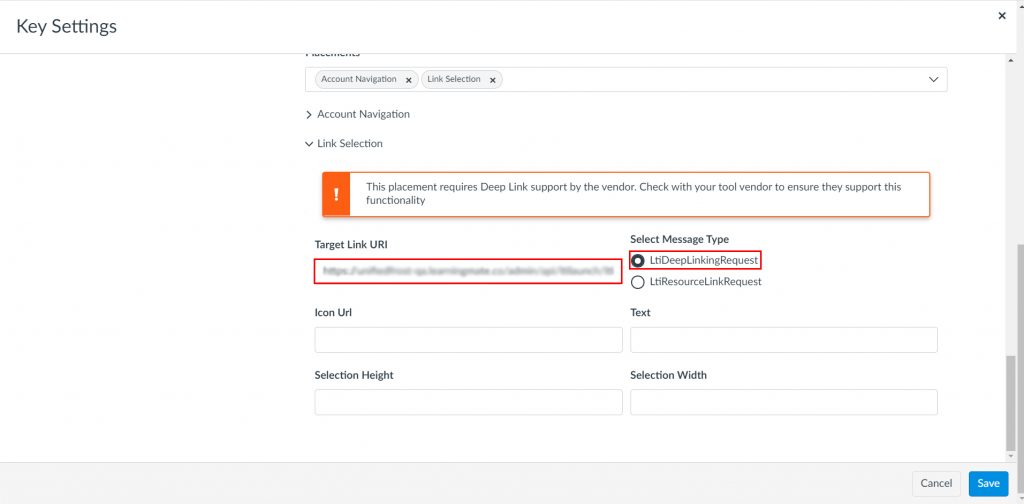

   • Link Selection Configuration:
     • Target Link URI: – Copy LAUNCH URL from LTI Platform table in admin
     • Select Message Type: – LtiDeepLinkingRequest
     • Selection Width and Height: – Optional
   • Click Save

Note: Newly created tool will be visible with necessary details/parameters/values required to fill in Frost.

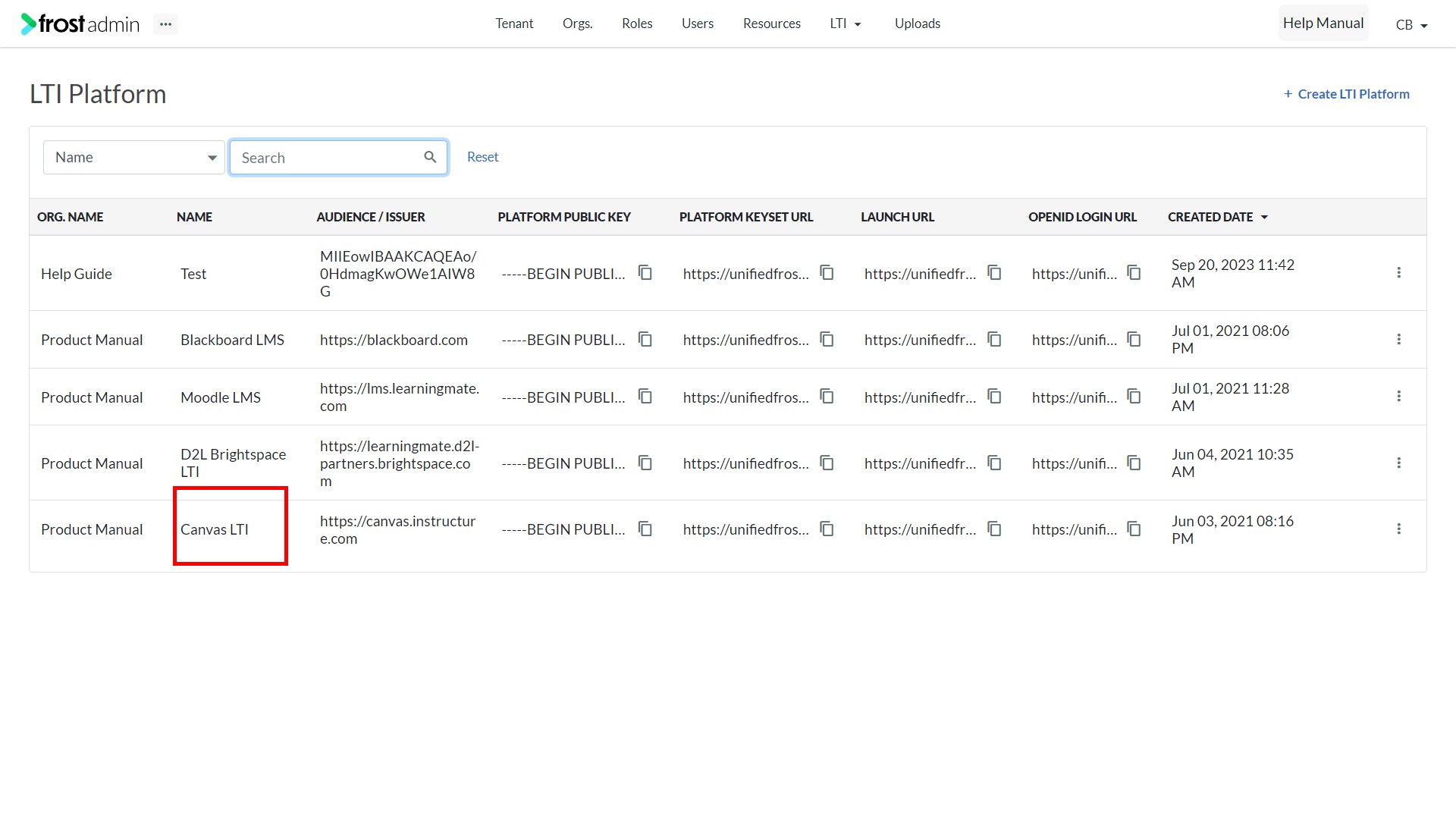

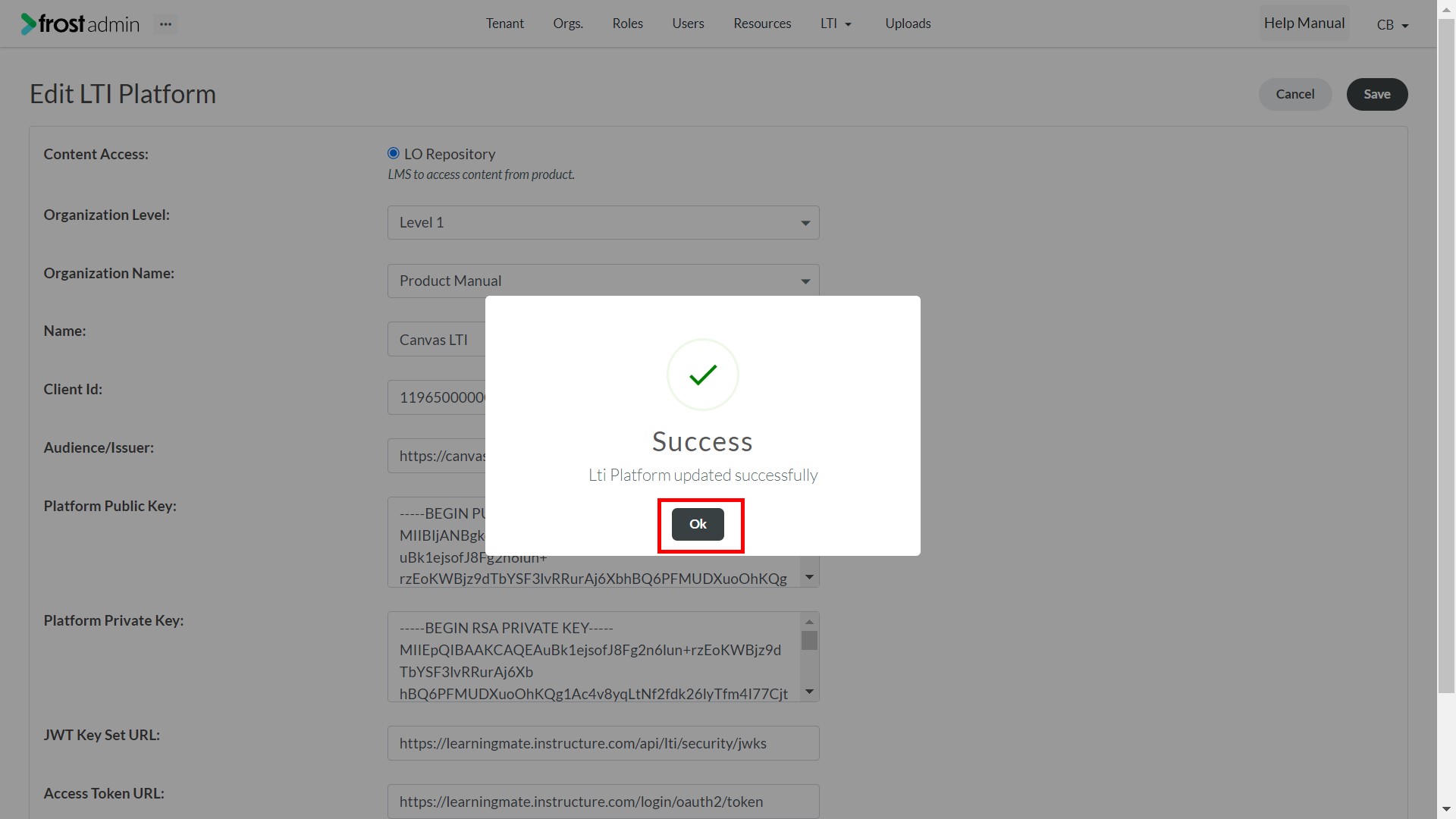

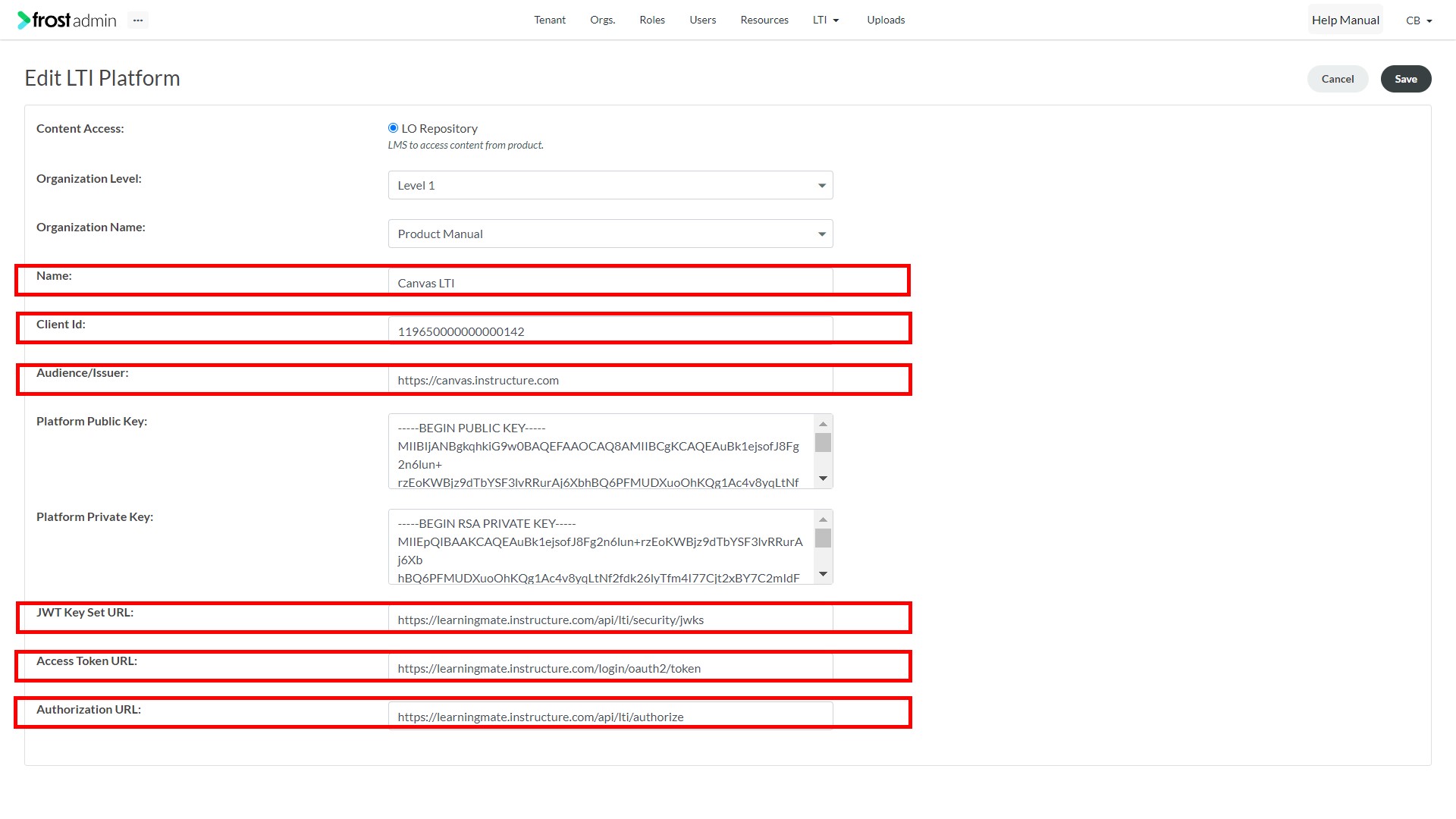

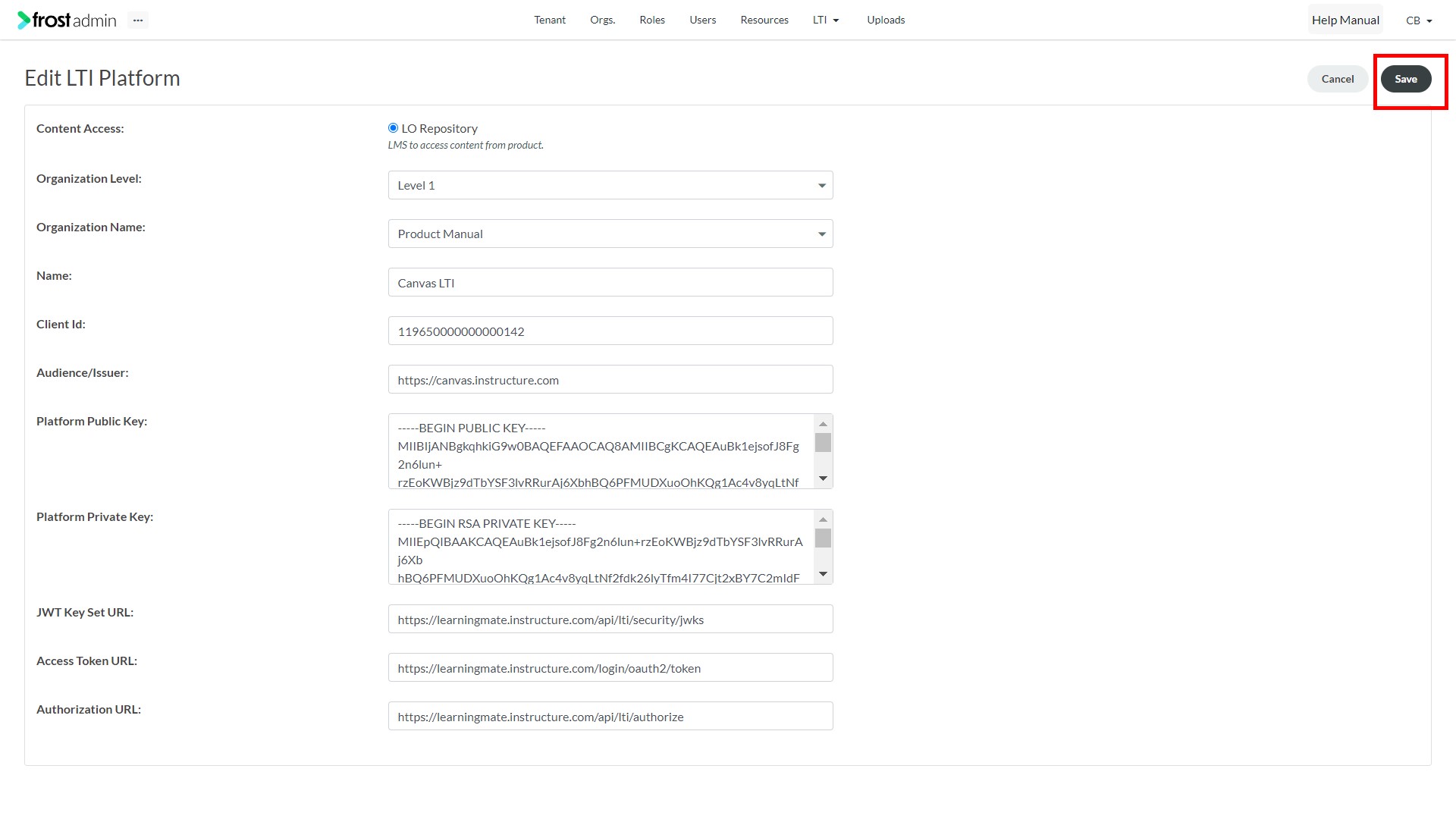

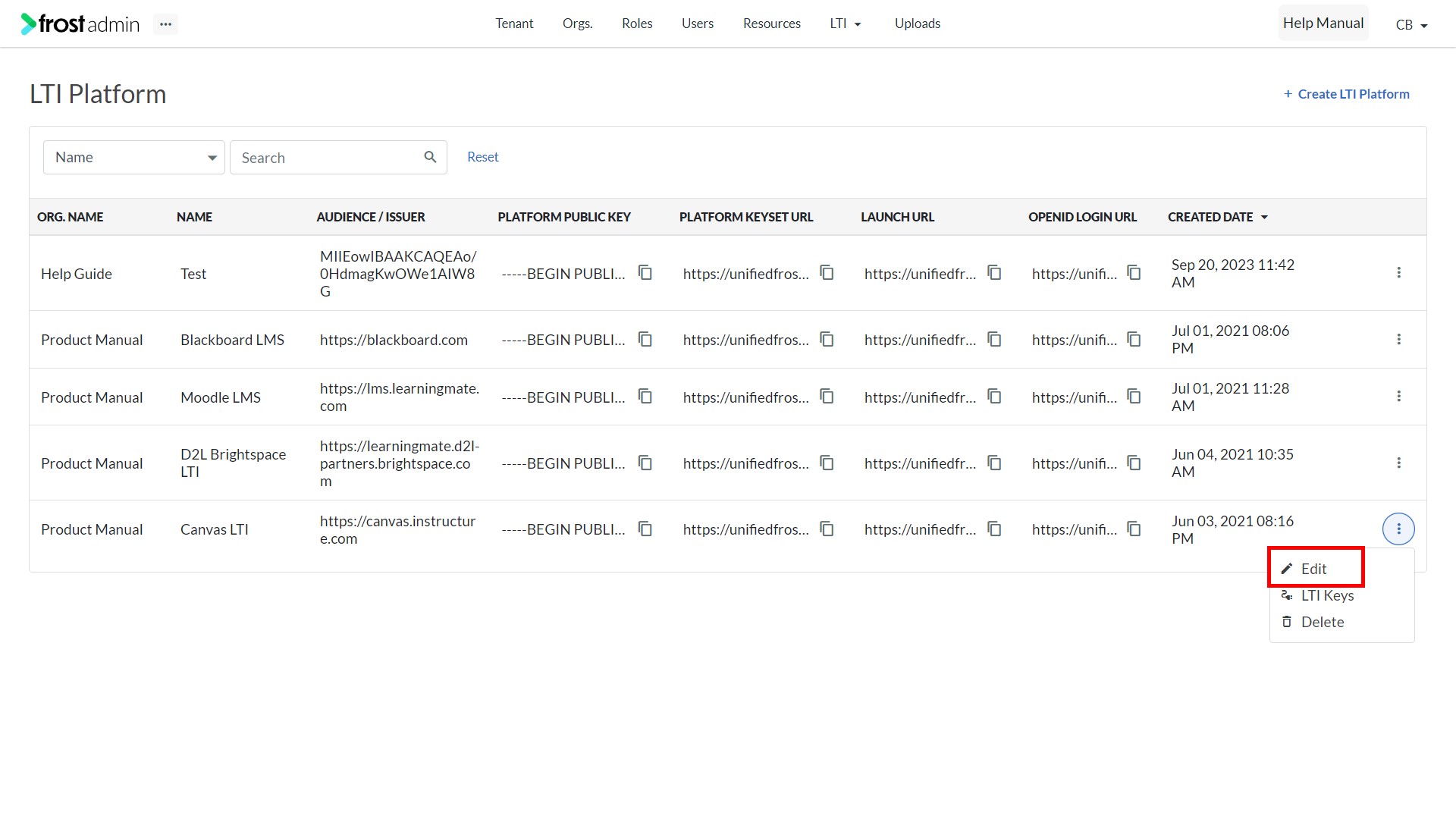

4. Edit LTI Platform in Frost
   • Copy Client Id from Canvas Developer Keys to LTI Platform
   • Audience/Issuer: – https://canvas.instructure.com
   • Client Id: – Client ID(from Canvas) eg it is number format
   • JWT Key Set URL: – https://learningmate.instructure.com/api/lti/security/jwks
   • Access Token URL: – https://learningmate.instructure.com/login/oauth2/token
   • Authorization URL: – https://learningmate.instructure.com/api/lti/authorize

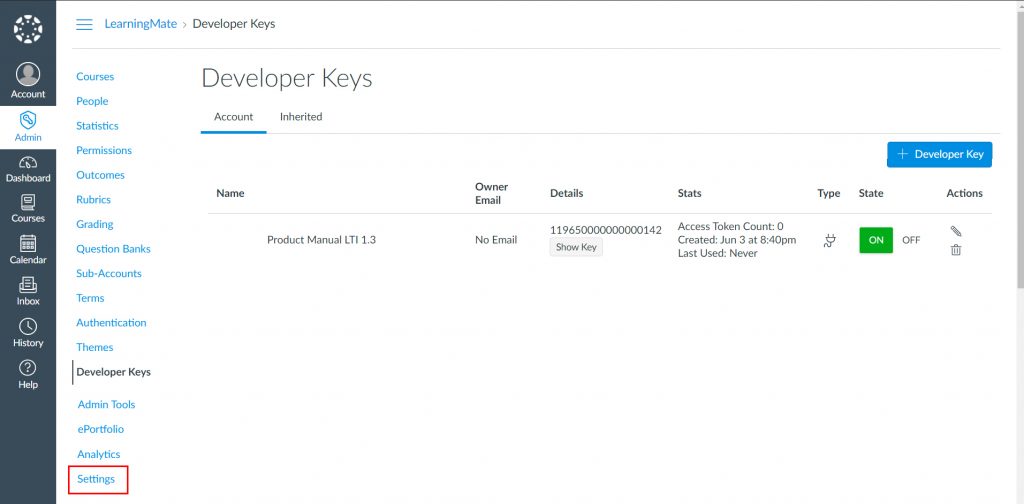

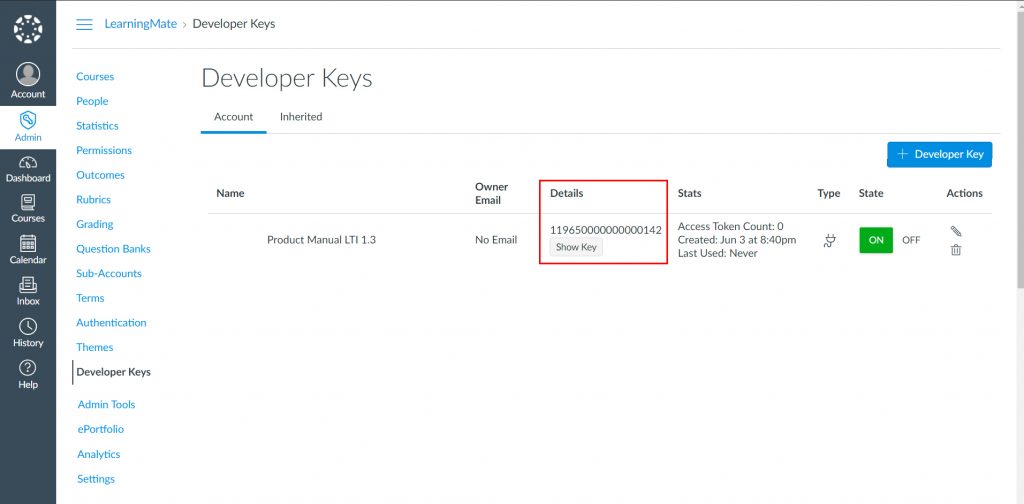

Note: Client ID is the numerical value listed under the Details column of the Developer Keys listing page.

5. Add External app through client id in Canvas

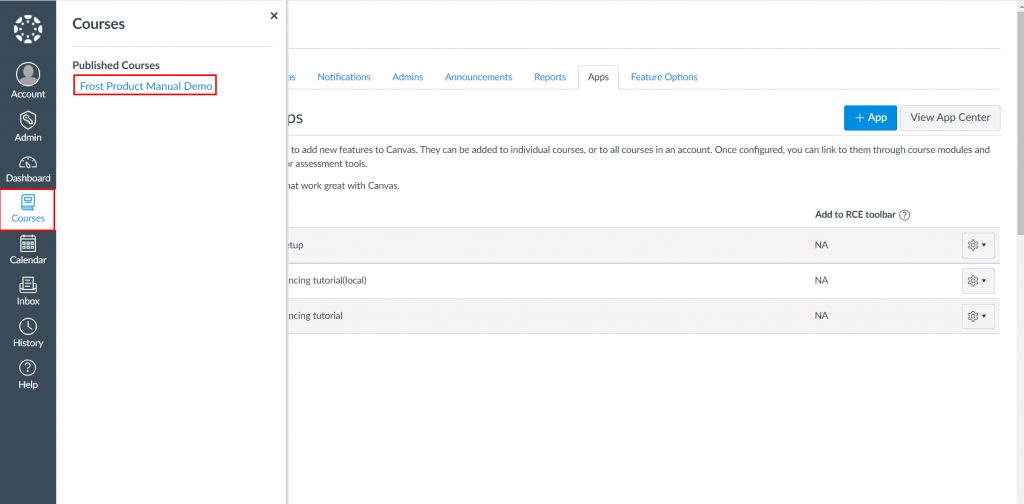

   • Navigate to Settings.

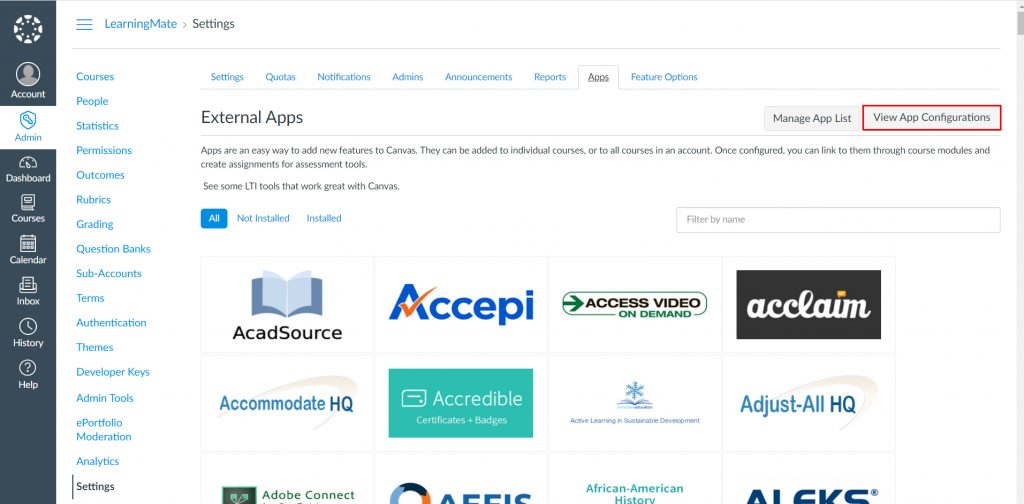

   • Under the Apps tab, select View App Configurations

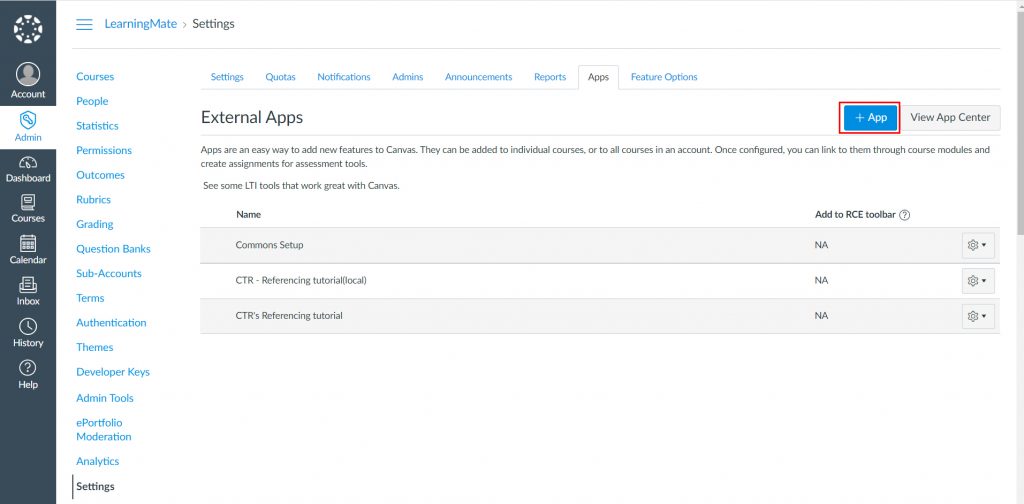

   • Click “+ App” to add a new app

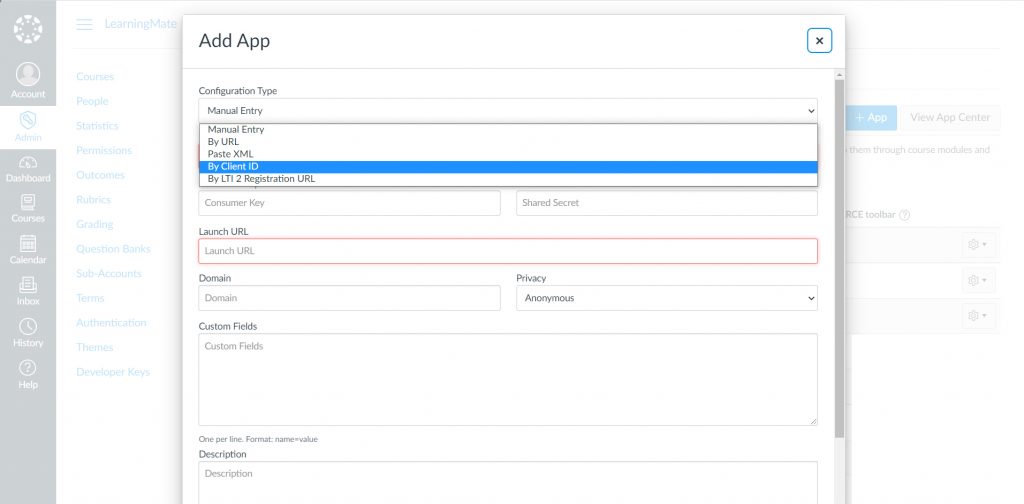

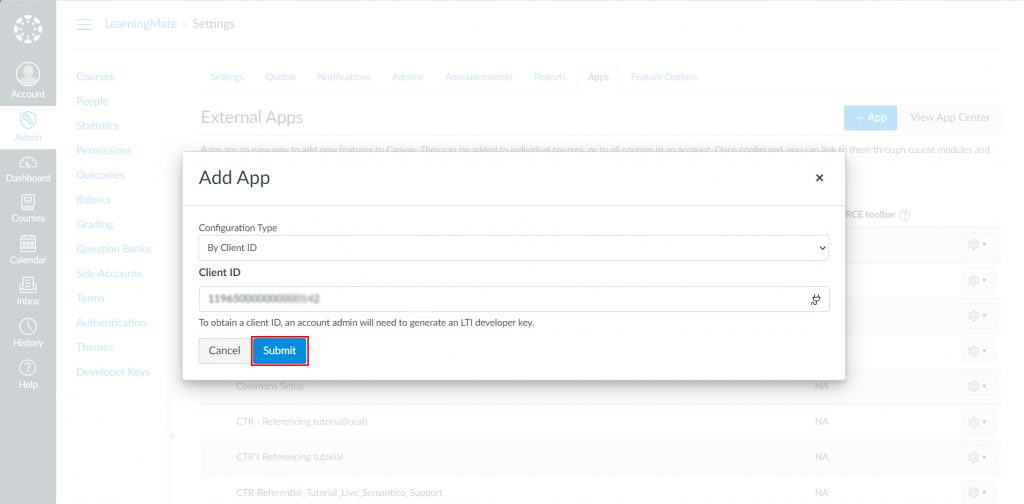

   • Select Configuration Type as By Client ID

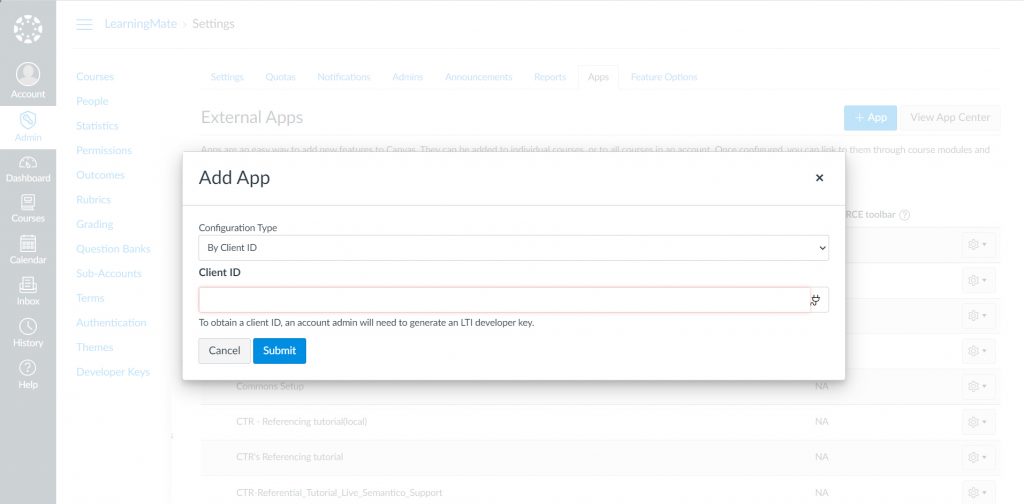

   • Enter the Client ID and click Submit

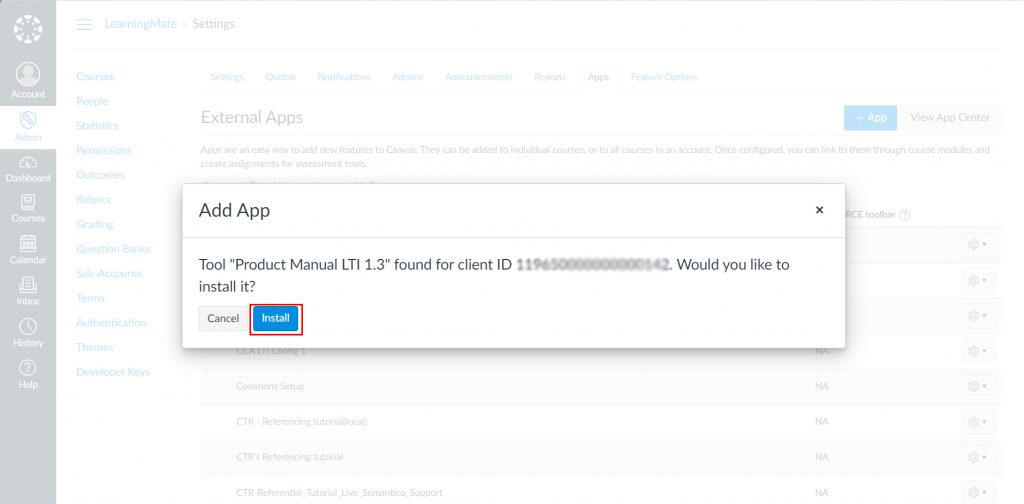

   • On the prompt to install the tool, click Install.
6. Add LOR Objects to the Course Module

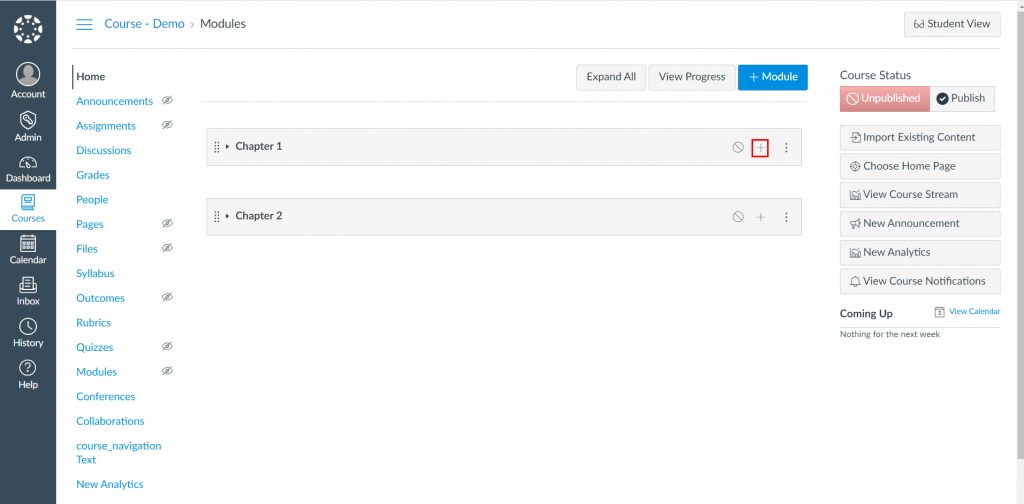

   • Navigate to the Course Modules

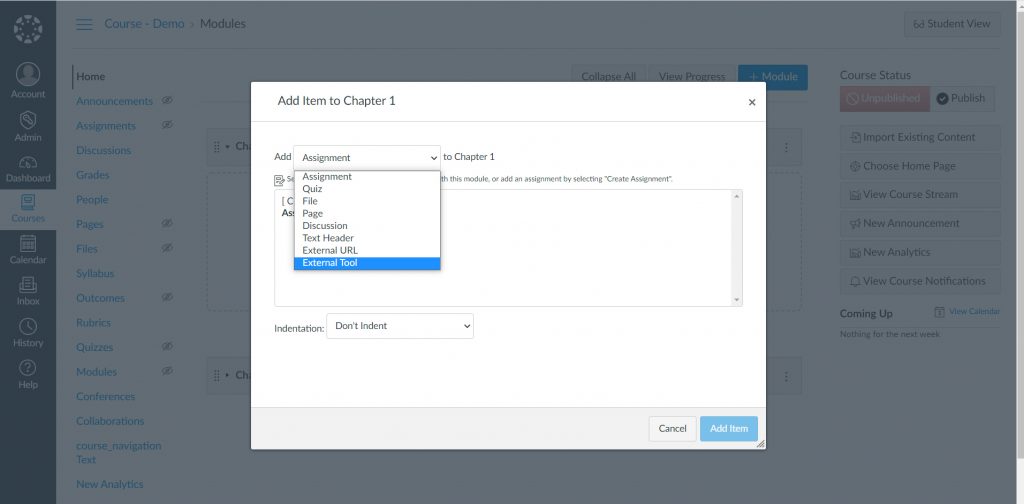

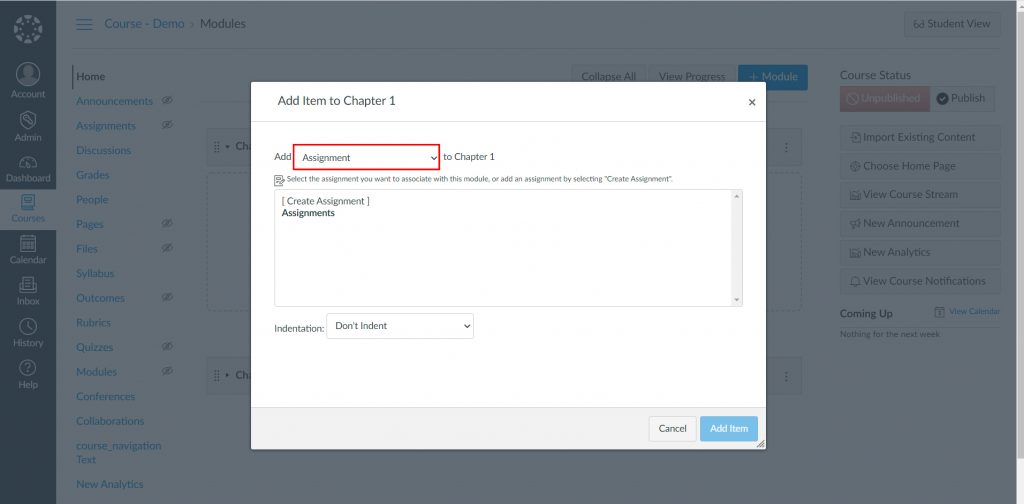

   • Add External tool

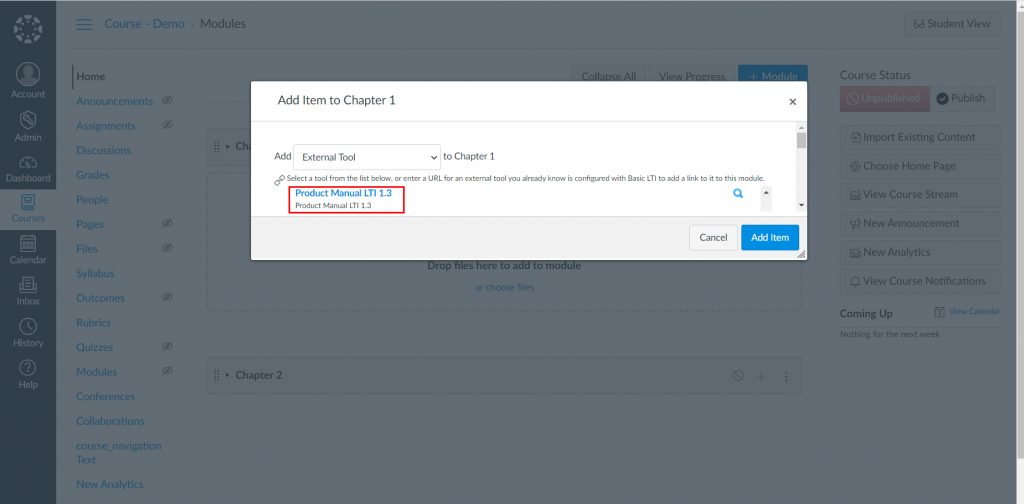

   • Select the configured tool

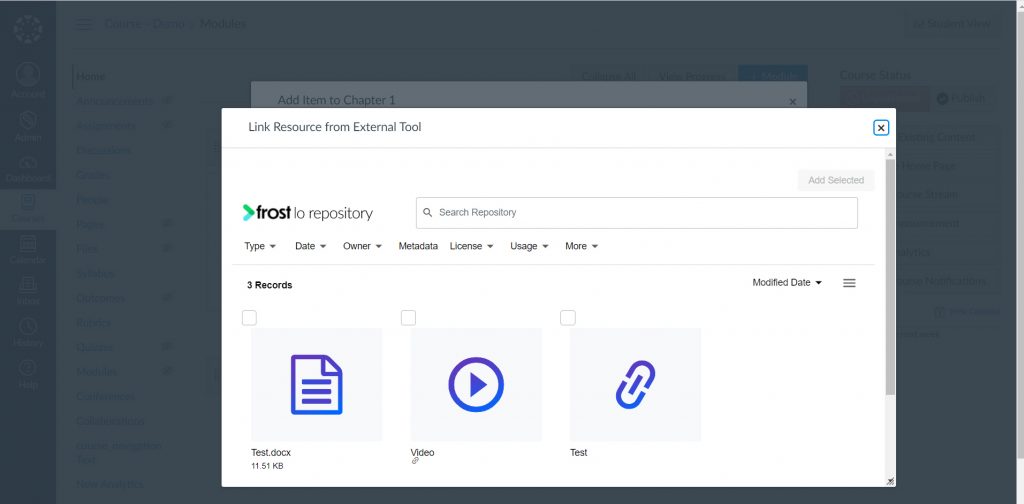

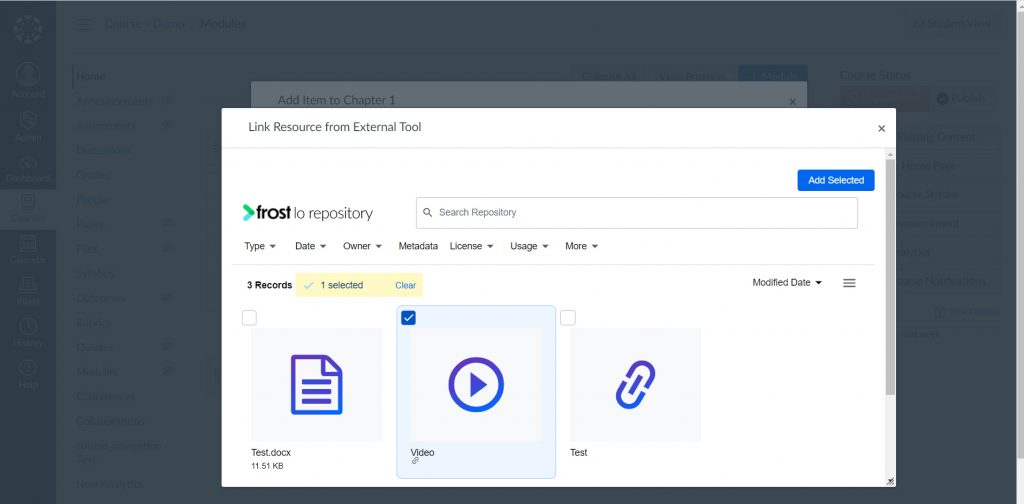

   • Select a LOR object and click Add Selected

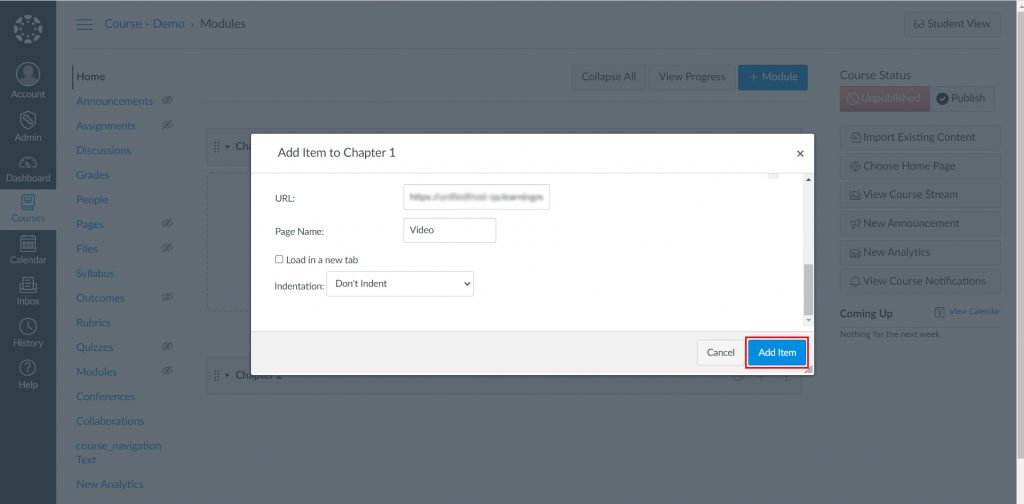

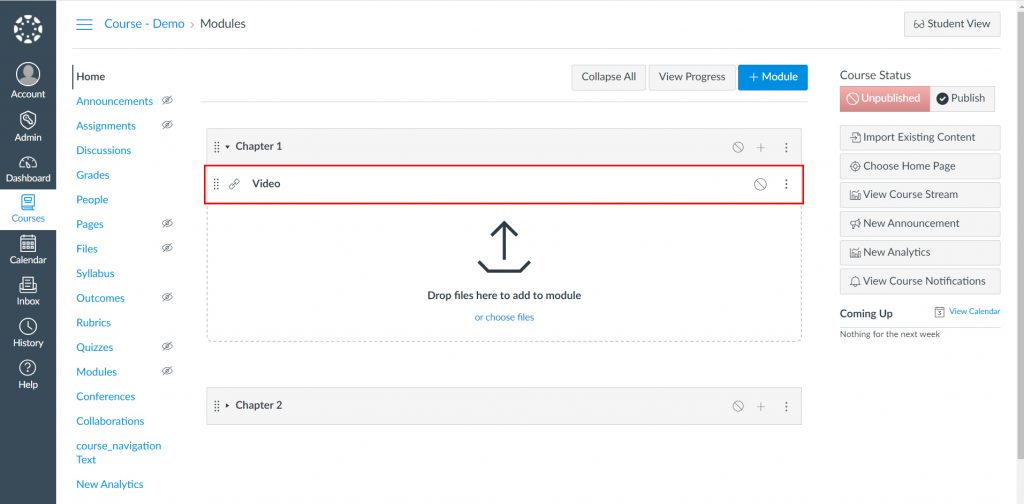

   • Finally, click Add Item to add the LOR objects to the course module.

Note: All the objects present in LO Repository will be available to be inserted in the course module.
